Sony HCD-SHAKE7 - Exploded Views of Unit Components (Continued); Front Panel Section Exploded View

69
HCD-SHAKE7

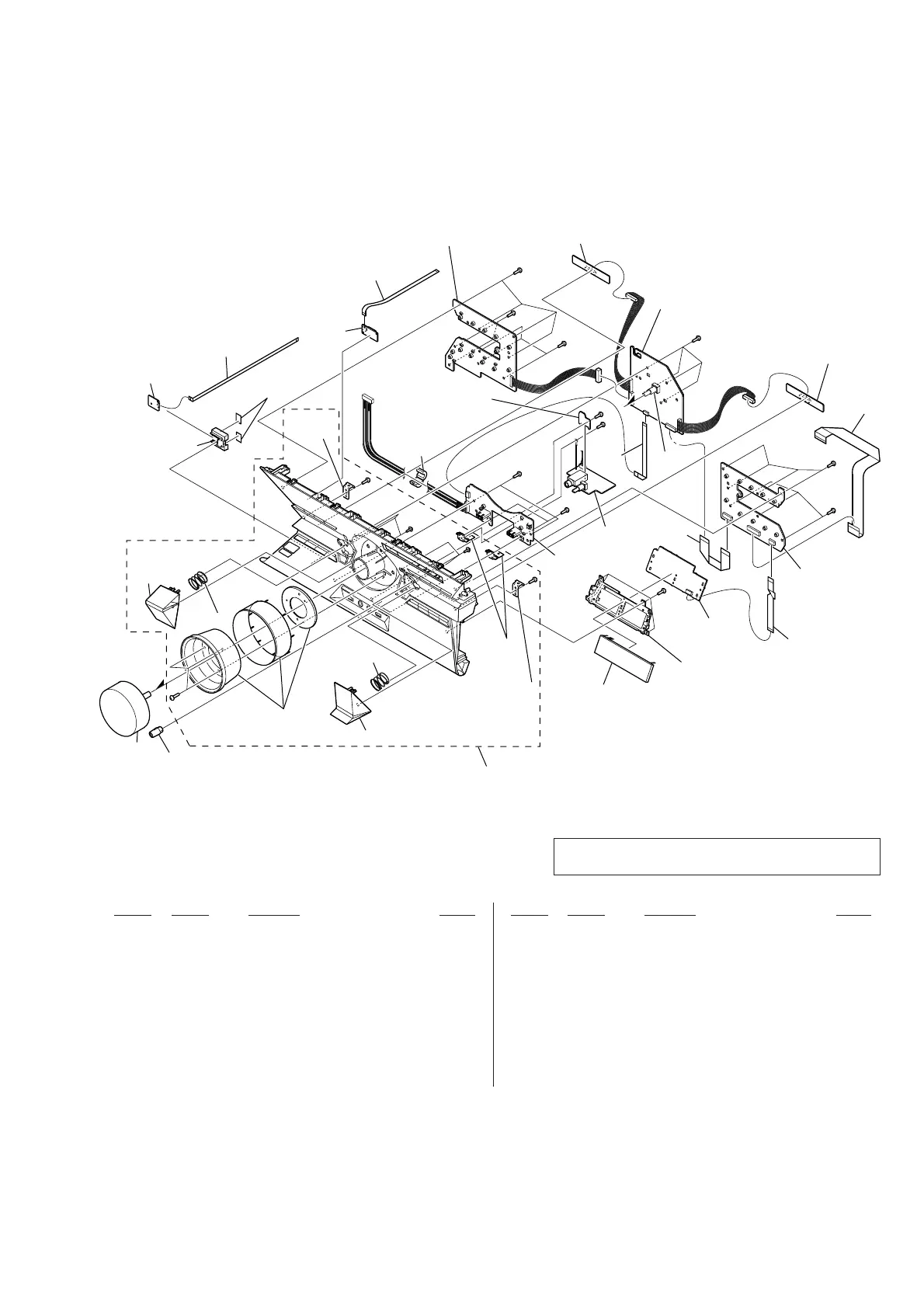

7-3. FRONT PANEL SECTION
101 4-449-856-01 KNOB, VOL
102 1-828-299-21 WIRE (FLAT TYPE) (7 CORE)
103 1-829-321-21 WIRE (FLAT TYPE) (17 CORE)
104 1-828-393-21 WIRE (FLAT TYPE) (25 CORE)
105 1-828-308-21 WIRE (FLAT TYPE) (9 CORE)
106 4-411-587-01 KNOB (MIC)
107 1-500-082-11 CLAMP, SLEEVE FERRITE
0 108 A-1920-100-A USB BOARD, COMPLETE
0 109 A-1920-097-A DISPLAY BOARD, COMPLETE
110 8-989-470-00 RC-S801/A (WW)
111 1-828-693-21 WIRE (FLAT TYPE) (8 CORE)
112 1-490-558-32 BLUETOOTH MODULE
113 1-828-722-21 WIRE (FLAT TYPE) (14 CORE)
114 X-2586-316-4 PANEL, FRONT ASSY
ND2401 1-483-465-11 VACUUM FLUORESCENT DISPLAY
S2601 1-786-417-11 ENCODER, ROTARY (VOLUME / DJ CONTROL)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-647-71 SCREW +BVTP 3X10 TYPE2 IT-3
#4 7-685-000-12 TAPPING +PWH 2X4 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Q
Q
#1
#1
#3
#3
#4
#4
#1
#1
#1
#3
#1
#1
#1
#1
#1
#1
not supplied
(MIC SUPPORT
board)
not supplied
(RGB BAR_L board)
not supplied
(BUTTON_L board)
not supplied
(BUTTON_R
board)
not supplied
(MIC board)
not supplied
(VOLUME board)
not supplied
(RGB BAR_R board)
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not supplied
ND2401
S2601
104
105
109
110
111
113
112
108
107
106
114
102
103
101
not supplied
Ver. 1.2
