Sony HCD-SHAKE7 - Exploded Views of Unit Components (Continued); Chassis Section Exploded View

70
HCD-SHAKE7
151
152
153
153
154
155
156
157
#1
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
158
(E2, E51, E4)

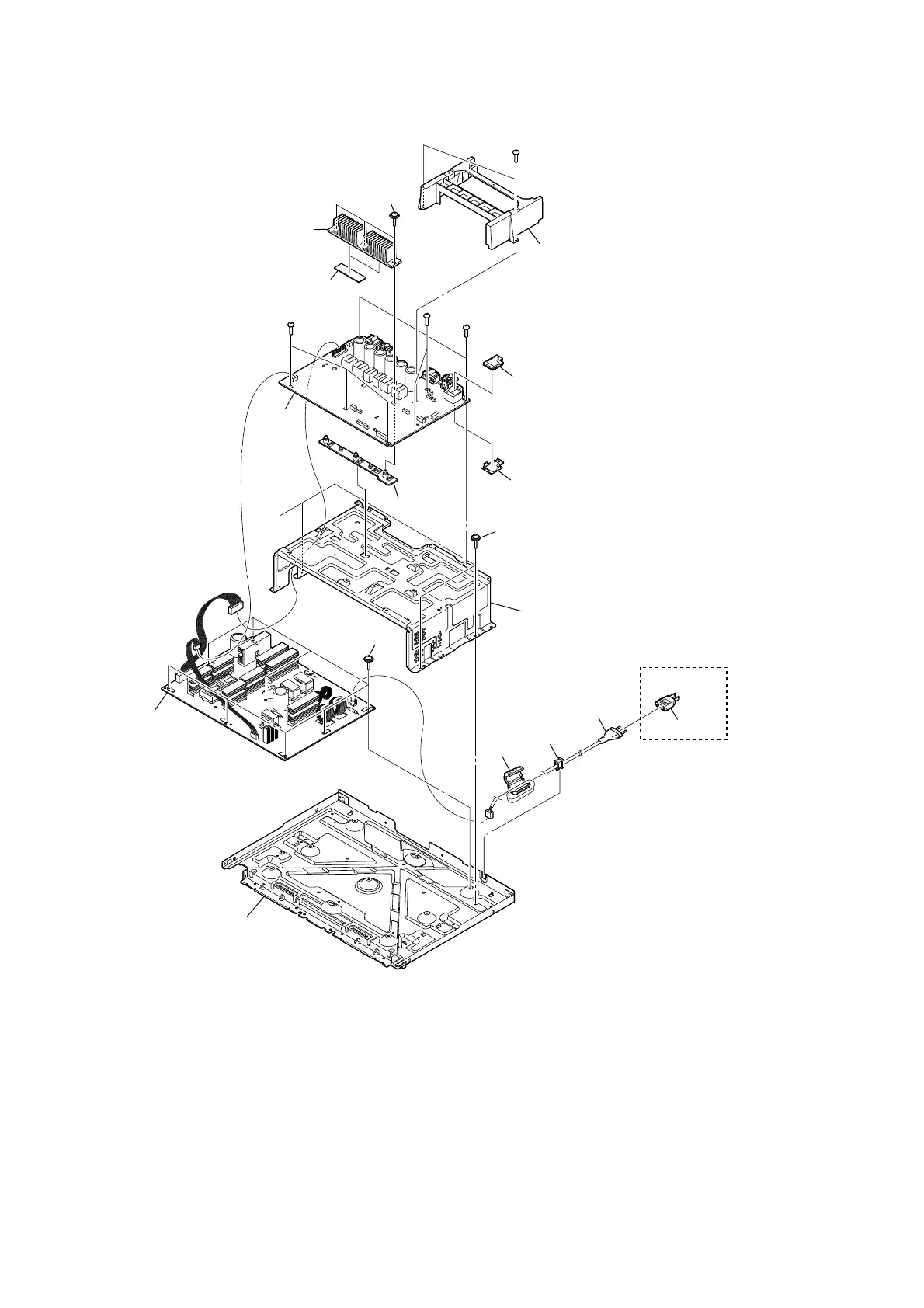

7-4. CHASSIS SECTION
151 4-435-965-01 SCREW+PTPWH 2.6XL (DIA8.0)
0
152 A-1962-753-A MOTHERBOARD BOARD, COMPLETE (E51)
0
152 A-1962-754-A MOTHERBOARD BOARD, COMPLETE (EA)
0
152 A-1962-755-A MOTHERBOARD BOARD, COMPLETE (SAF)
0
152 A-1962-756-A MOTHERBOARD BOARD, COMPLETE (MY)
0
152 A-1962-757-A MOTHERBOARD BOARD, COMPLETE (E2)
0
152 A-1962-758-A MOTHERBOARD BOARD, COMPLETE (MX)
0
152 A-1994-930-A MOTHERBOARD BOARD, COMPLETE (AR)
0
152 A-1998-953-A MOTHERBOARD BOARD, COMPLETE (E4)
153 2-677-839-01 +PWH 3X8 (SUMITITE)
0
154 1-474-485-11 REGULATOR, SWITCHING (SMG-1800)
155 1-457-369-12 CORE, FERRITE
0
156 4-966-267-12 BUSHING (FBS001), CORD
0
157 1-835-706-22 CORD, POWER-SUPPLY (E51)
0
157 1-837-312-11 CORD, POWER-SUPPLY (AR)
0
157 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)
0
157 1-838-939-11 CORD, POWER (SAF, E4)
0
157 1-839-999-21 POWER-SUPPLY CORD (EA, MY)
0
158 1-569-007-31 ADAPTOR, CONVERSION 2P (E2)
0
158 1-785-504-21 ADAPTOR, CONVERSION (E51)
0
158 1-843-324-11 ADAPTOR, CONVERSION 2P (E4)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
