Sony HCD-SHAKE7 - Exploded Views of Unit Components (Continued); CD Mechanism Section Exploded View

71
HCD-SHAKE7

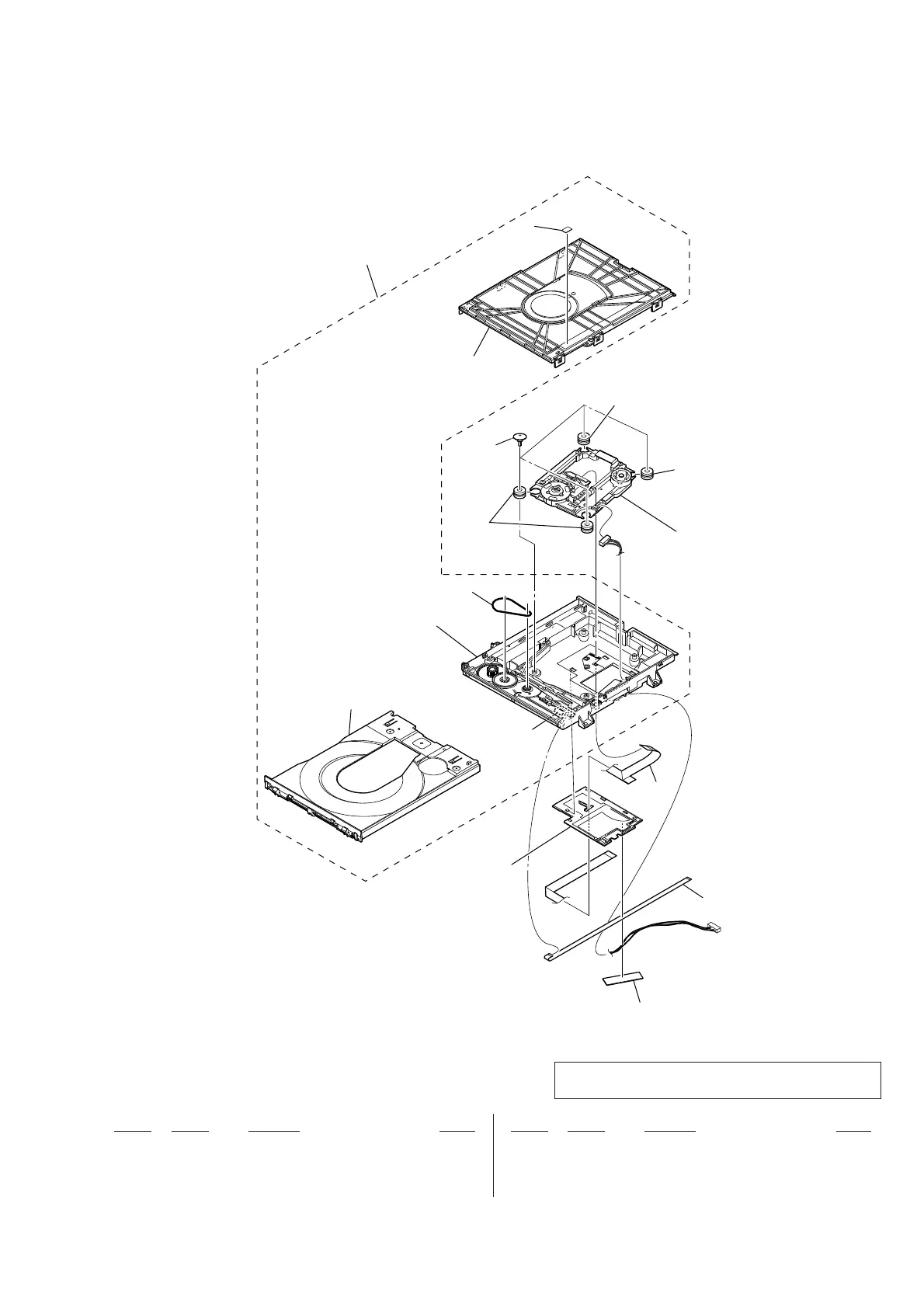

7-5. CD MECHANISM SECTION
(CDM90-DVBU202//M)
201 A-1896-391-A LOADING COMPLETE ASSY (T)
(including MS-476 board)
202 3-087-599-01 INSULATOR SCREW
203 2-634-618-21 INSULATOR
0
204 A-1940-584-A SERVICE, OPTICAL DEVICE (for SERVICE)
205 1-828-292-21 WIRE (FLAT TYPE) (5 CORE)
206 1-830-282-21 WIRE (FLAT TYPE) (24 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
not supplied
not supplied
(MS-476 board)
not supplied
not supplied
not supplied
not supplied
202
203
203
203
204
206
205
not supplied
not
supplied
201 (including MS-476 board)
