Sony HCD-SHAKE7 - Cdm90-Dvbu202;;M; Front Panel Section

HCD-SHAKE7
9

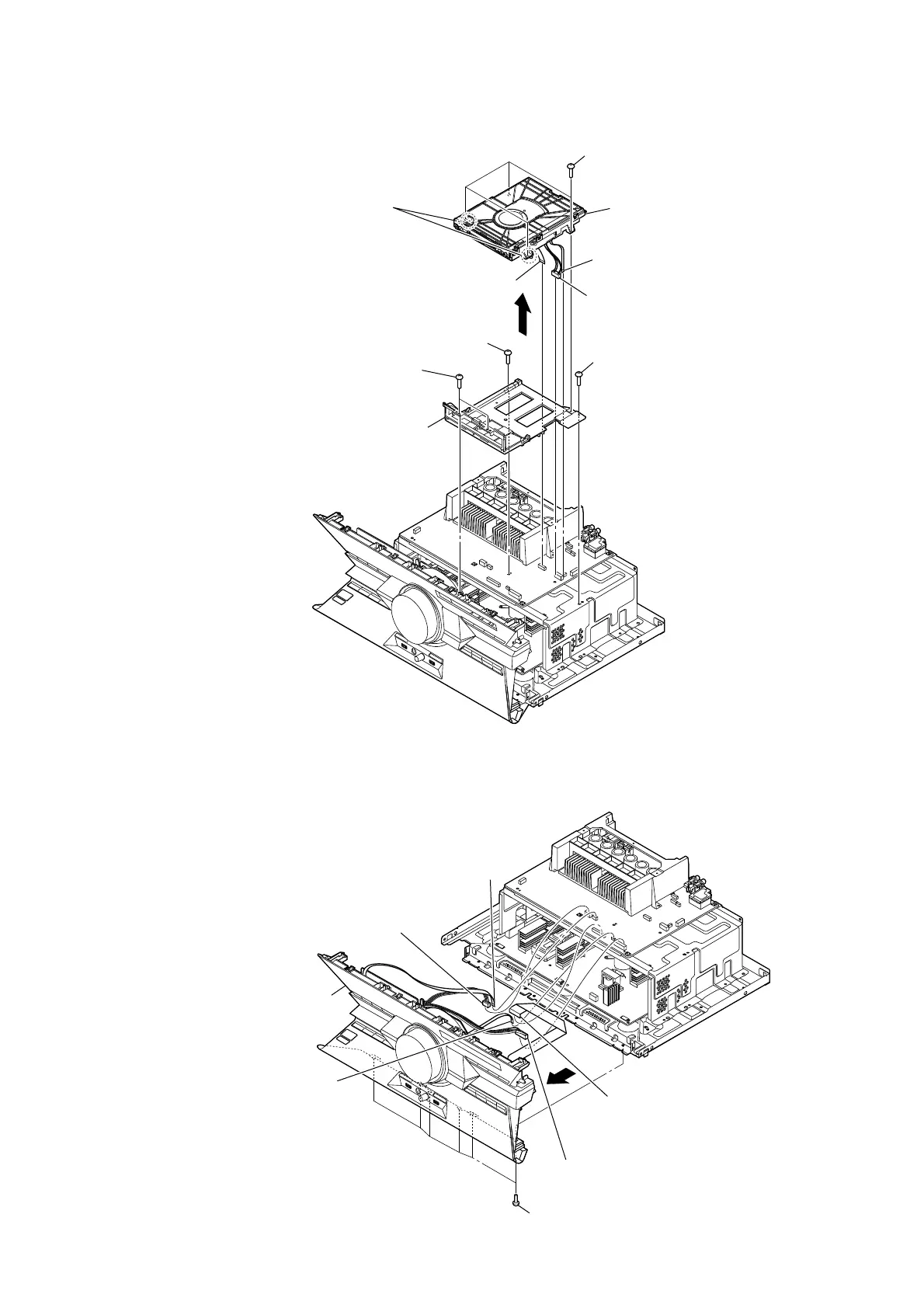

2-4. CDM90-DVBU202//M
2-5. FRONT PANEL SECTION
1 six screws
(+BVTP 3 u 8)
3 CN9 (4P)
5 CN6 (10P)
2 wire (flat type)
(14 core) (CN10)
4 wire (flat type)
(25 core) (CN12)
6 wire (flat type)
(8 core) (CN8)
8 front panel section
7
8 two screws
(+BVTP 3 u 8)
0 one screw
(+BVTP 3 u 8)
qa bracket, CDM
6
4 four screws
(+BVTP 3 u 8)
7 CDM90-DVBU202//M
5 boss
9 one screw
(+BVTP 3 u 8)
2 CN901 (6P)
3 wire (flat type) (5 core)
(CN306)
1 wire (flat type) (24 core)
(CN305)
Note: When you install the BD
drive (CDM90-DVBU202//M),
please match the position of
the boss two places.
