Sony HCD-V4800 - Tape Mechansm Deck Section (Tcm-220 Wr2); Cassette Lid Ass’y

– 10 –

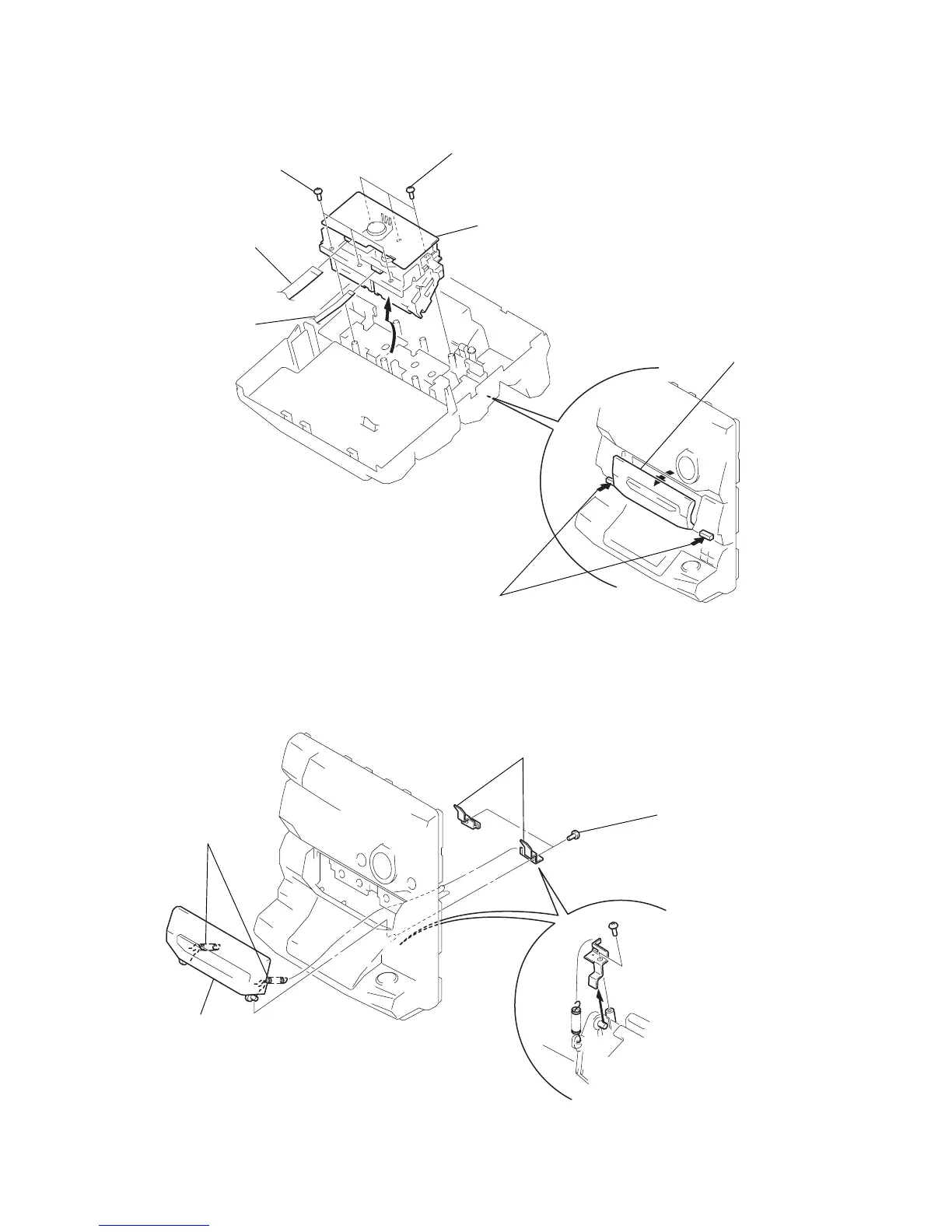

TAPE MECHANSM DECK SECTION (TCM-220WR2)
4 three screws
(BVTP 2.6
× 8)
3 flat wire (21 core)
(CN601)
3 flat wore (11 core)
(CN1001)
4 three screws
(BVTP 2.6
× 8)
5 Remove the tape mechanism
deck section (TCM-220WR2)
to derection of the arrow
A .
2 Open the
cassette lids.
1 Push the
two buttons.
A
CASSETTE LID ASS’Y
1 two springs
4 cassette lid ass’y
2 two screws
(BVTP 2.6
× 8
)
3 two brackets
