Sony HCD-V4800 - Disassembly Procedures; Overall Disassembly Steps and Case Removal

– 7 –
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
CASE
MAIN BOARD
(Page 8)
CD LID ASS’Y
SECTION
(Page 11)
TAPE MECHANISM
DECK SECTION
(TCM-220WR2)
(Page 10)
MAIN
SECTION
(Page 9)
CASSETTE
LID ASS’Y
(Page 10)
CD MECHANISM
DECK SECTION
(CDM37L-5BD21AL)
(Page 9)
DISC TABLE
(Page 12)
BASE UNIT
(BU-5BD21AL)
(Page 12)
BD BOARD
(Page 13)
PANEL (A)/(B)
SUB ASS’Y
(Page 11)
CAPSTAN MOTOR (M1)
(Page 14)
OPTICAL
PICK-UP
(KSS-213D/Q-NP)
(Page 13)
SLED
MOTOR (M102),
SPINDLE
MOTOR (M101)
(Page 13)
FRONT PANEL
SECTION
(Page 8)
CASE
(Page 7)

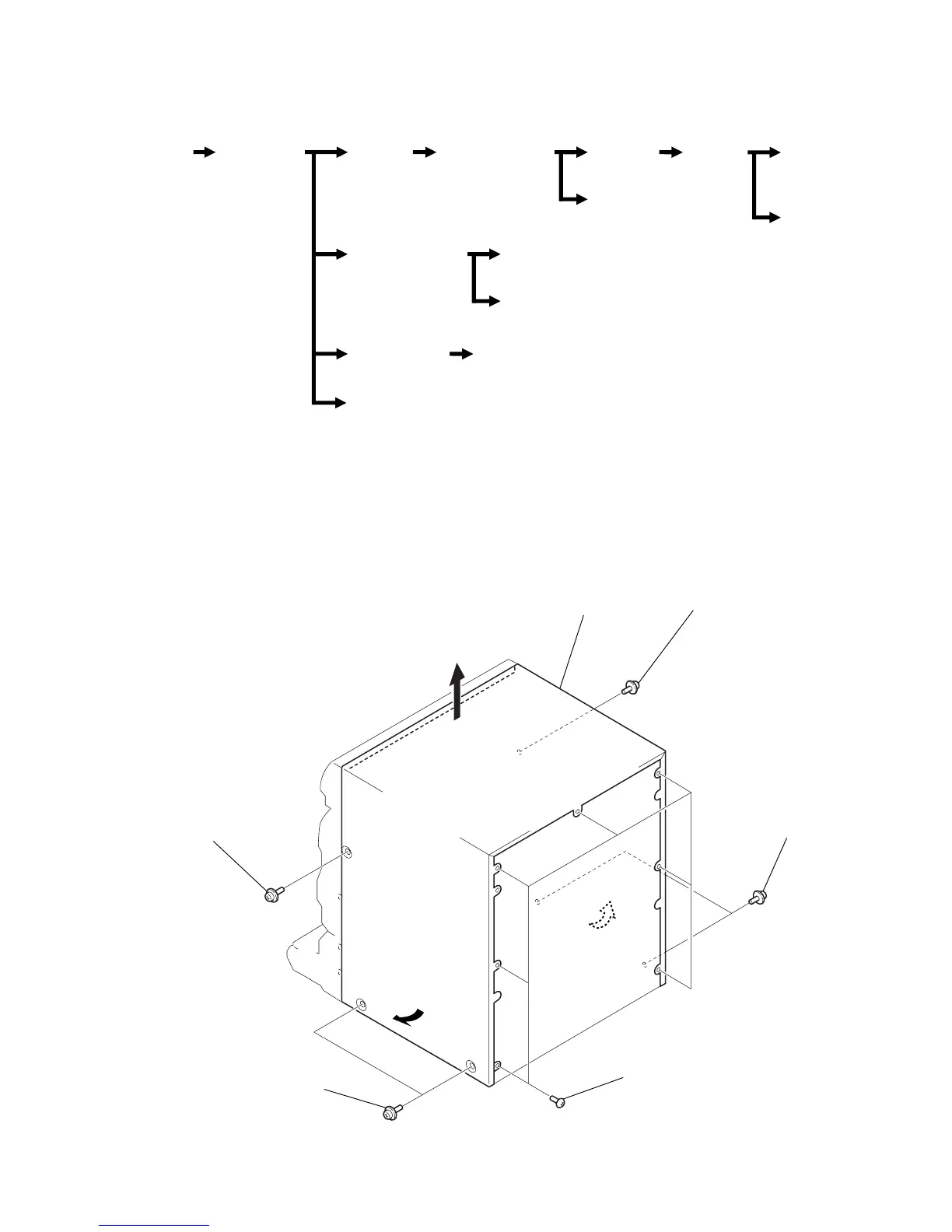

• This set can be disassembled in the order shown below.
3
case
1 screw
(case 3 TP2)
1 two screws
(case 3 point
)
2 seven screws
(BVTT 3
× 6)
1 two screws
(case 3 point)
1 screw
(case 3 TP2)
