Sony HCD-V4800 - Tape Mechanism Deck Section

– 92 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
202 X-4946-820-1 HOLDER (BL) ASSY, CASSETTE
203 X-4946-819-1 HOLDER (BR) ASSY, CASSETTE
204 4-959-231-11 SPRING (L), TORSION
205 4-959-232-11 SPRING (R), TORSION
206 3-354-963-01 DAMPER
* 207 4-980-439-01 FULCRUM, HOLDER
208 3-354-957-01 JOINT (LOCK LEVER)
* 209 3-354-953-01 LEVER (LOCK LEVER L)
* 210 3-354-954-01 LEVER (LOCK LEVER R)
208
209
206
207
210
208
not supplied
#2
#5
#5
#5
206
205
203
204
202

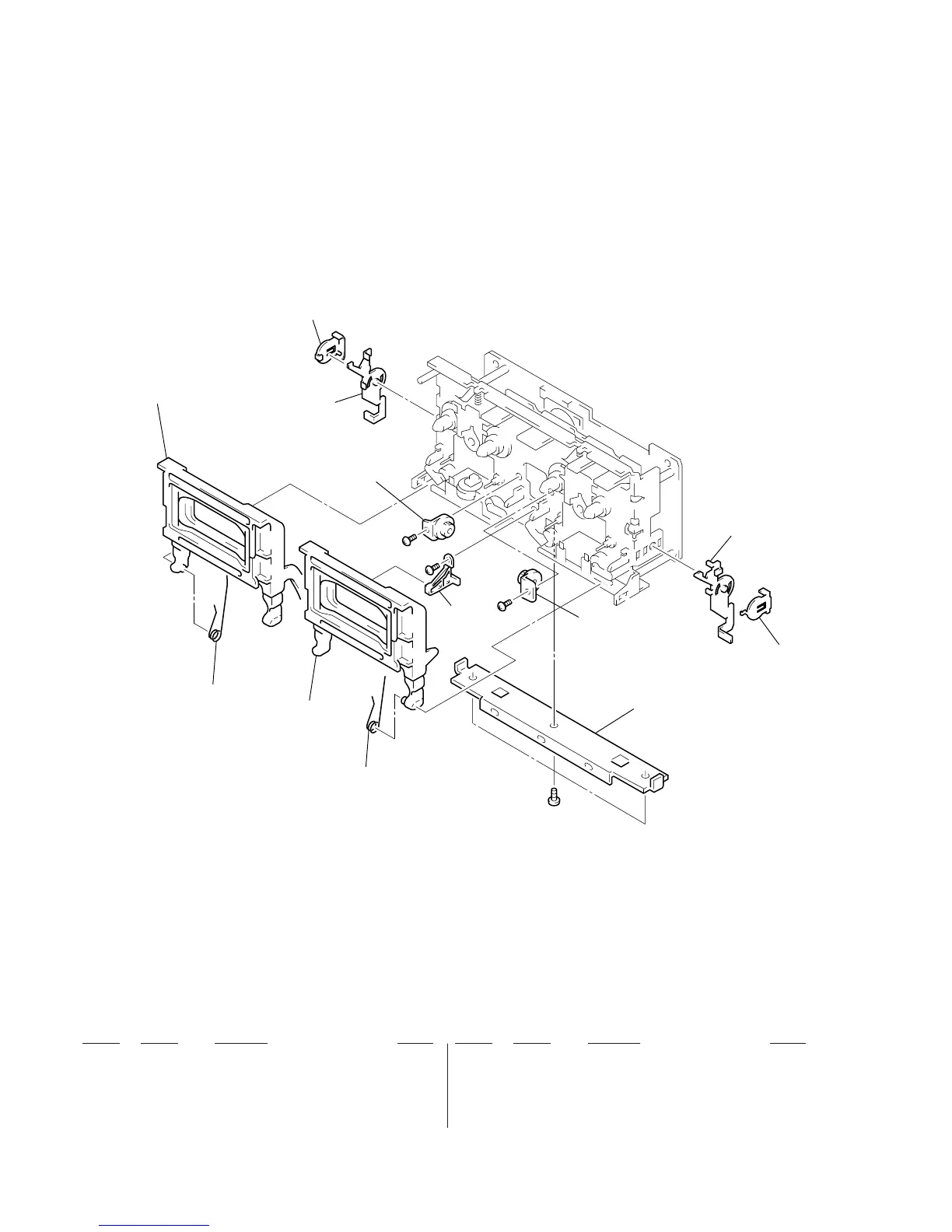

(5) TAPE MECHANISM DECK SECTION-1
(TCM-220WR2)
