Sony HCD-V4800 - Base Unit Section

– 96 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
! 401 8-820-020-01 OPTICAL PICK-UP KSS-213D/Q-NP
402 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
403 4-917-567-01 GEAR (M)
404 4-951-940-01 INSULATOR (BU)
405 4-917-565-01 SHAFT, SLED
406 4-917-564-01 GEAR (P), FLATNESS
* 407 A-4673-557-A BD BOARD, COMPLETE
408 4-951-620-01 SCREW (2.6X8), +BVTP
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.

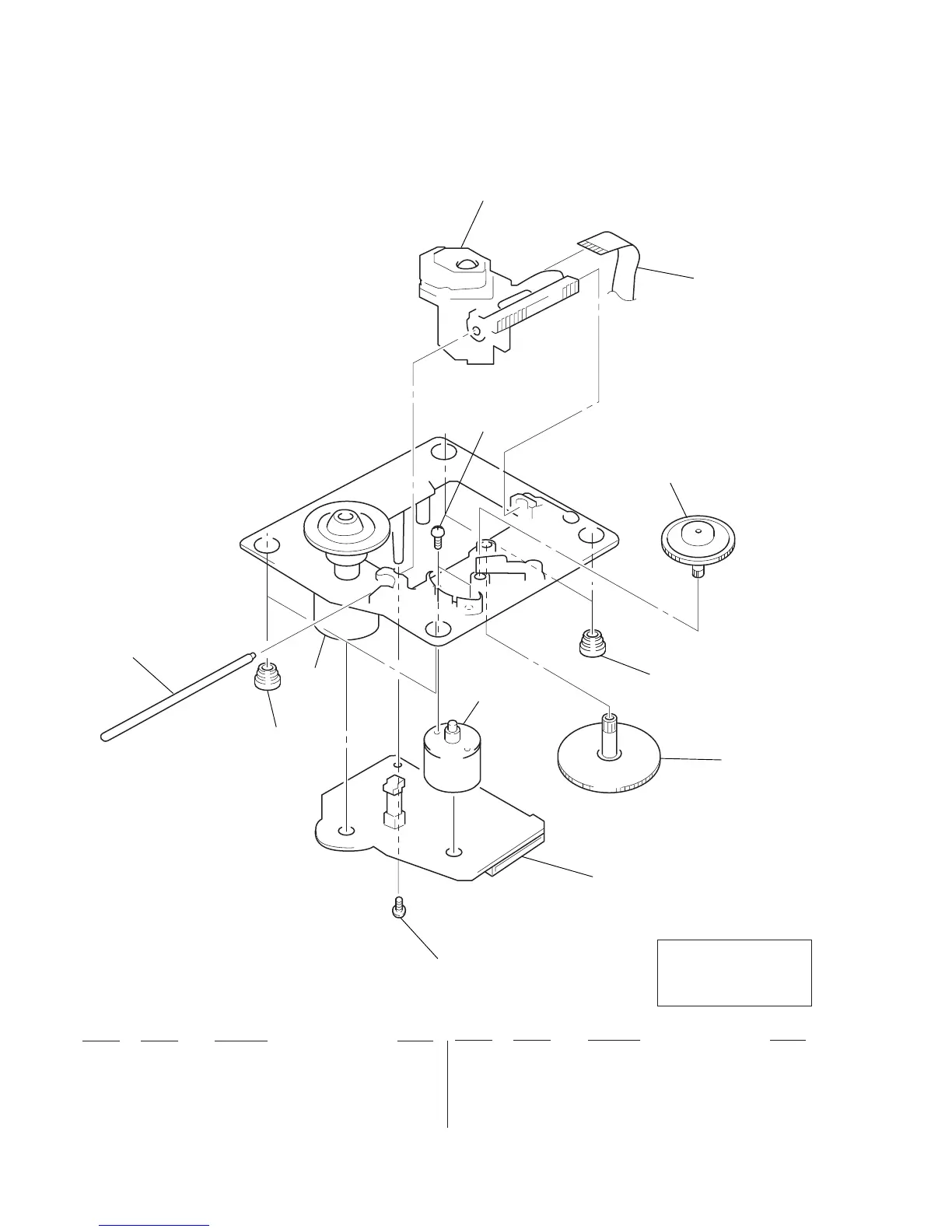

(9) BASE UNIT SECTION
(BU-5BD21AL)
#12
M102
404
403
402
401
406
407
404
405
408
M101
