– 88 –
SECTION 7
EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

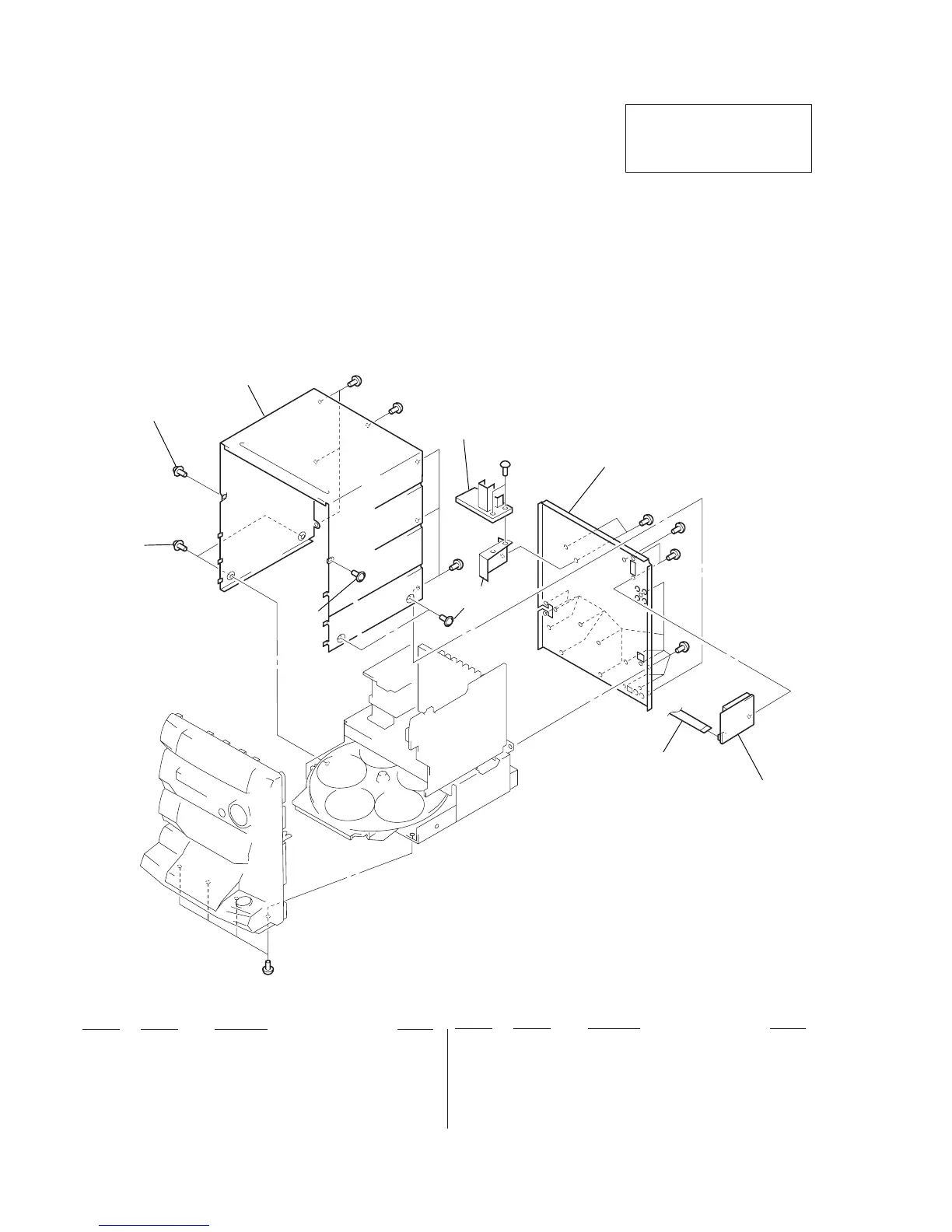

(1) CASE, REAR PANEL SECTION
• Abbreviation
CH : Chinese
IA : Indonesia
MY: Malaysia
SP : Singapore
TH : Thai
1 4-929-973-01 SCREW (CASE, 3 POINT)
* 2 4-987-052-11 CASE
* 3 4-992-219-01 PANEL, BACK (SP)
* 3 4-992-219-11 PANEL, BACK (MY, TH)
* 3 4-992-219-21 PANEL, BACK (CH)
* 3 4-992-219-31 PANEL, BACK (IA)
4 1-233-545-11 ENCAPSULATED COMPONENT
(FM/AM TUNER UNIT)
5 1-769-974-11 WIRE (FLAT TYPE) (13 CORE) (120mm)
6 3-363-099-01 SCREW (CASE 3 TP2)
* 7 1-666-126-11 VIDEO POWER BOARD
not supplied
#2
#2
#2
#1
#1
#1
#1
#3
#1
6
7
2
3
6
1
1
5
4
