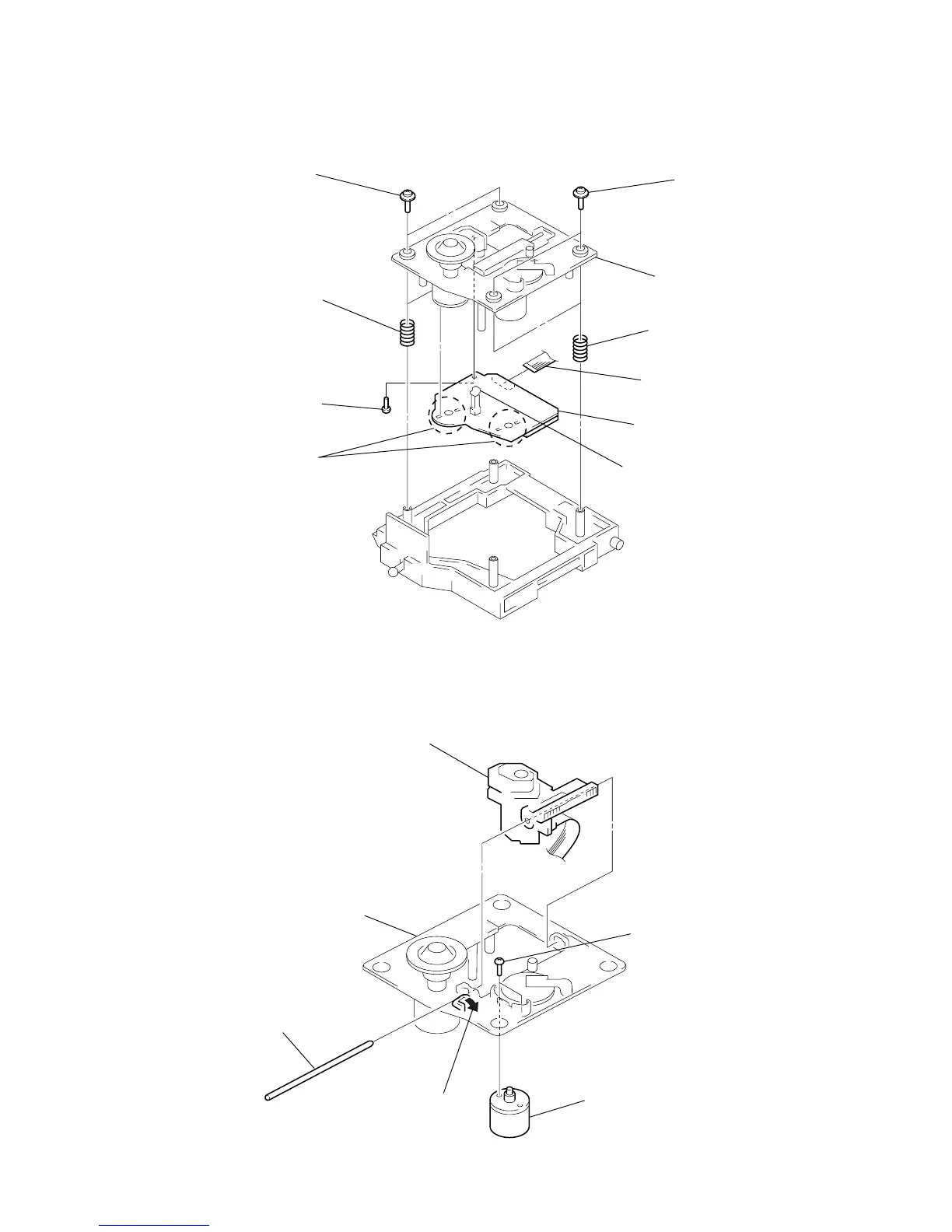

Sony HCD-V4800 - Bd Board; Optical Pick-Up (Kss-213 D;Q-Np), Sled Motor, Spindle Motor

– 13 –
1 two screws
(PTPWH M2.6
× 6)
3 two springs
5 screw
(BVTP 2.6
× 8)
7 BD board
4 flat wire (16 core)
(CN102)
3 two springs
2 optical pick-up
section
1 two screws
(PTPWH M2.6
× 6
)
6 Removal
four solders. limit switch
(S101)
BD BOARD
OPTICAL PICK-UP (KSS-213D/Q-NP), SLED MOTOR (M102), SPINDLE MOTOR (M101)
3 optical pick-up (KSS-213D/Q-NP)
6 spindle motor
(M101)
2 sled shaft
1 claw
5 sled motor
(M102)
4 two screw
s
(P2 × 3)
