Sony HCD-V4800 - Base Unit (Bu-5 Bd21 Al); Disc Table

– 12 –

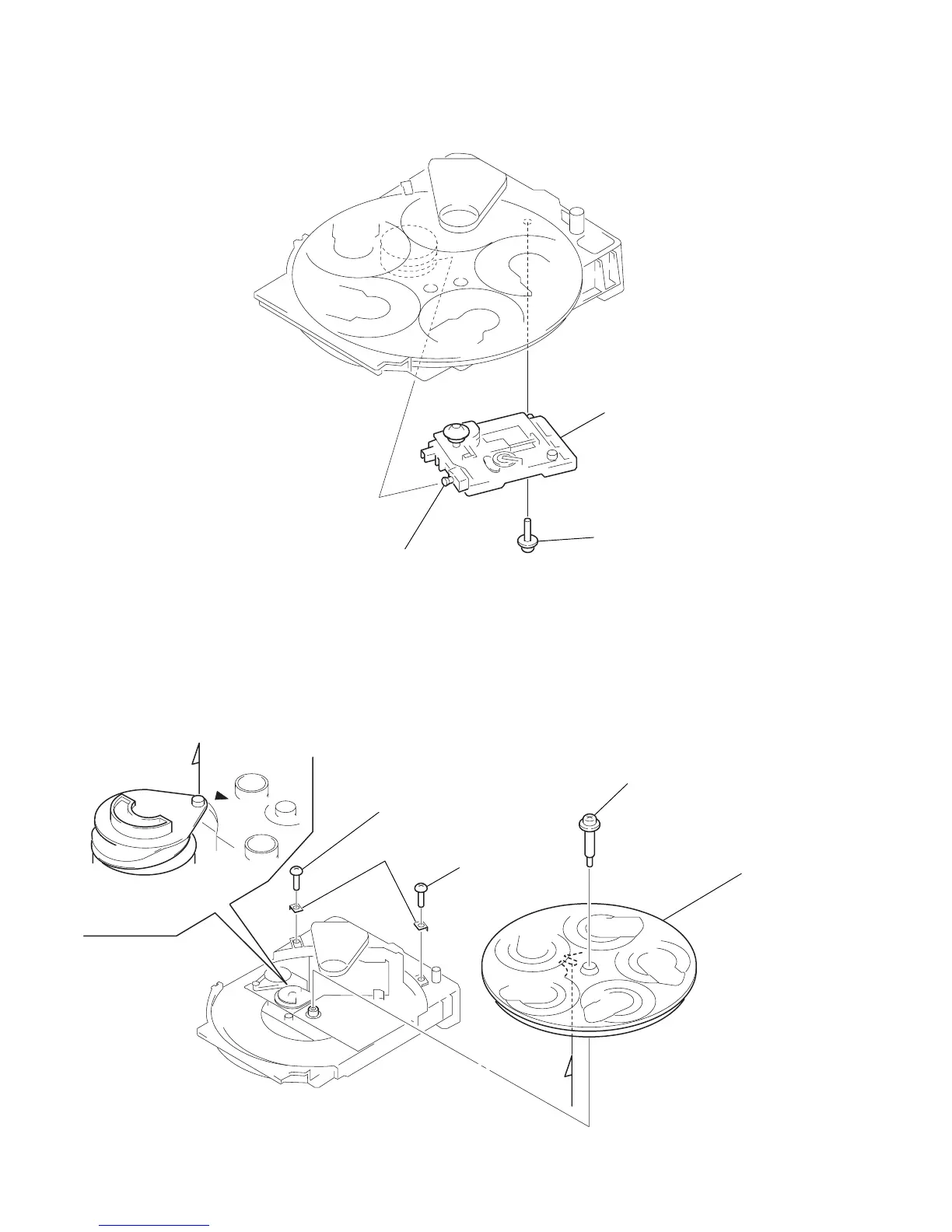

3 base unit
(BU-5BD21AL)
1 yoke bracket
2 boss
1 screw
(BVTP 3
× 8)
1 screw
(BVTP 3
× 8)
3 step screw
4 disc tabl
e
A
A
2
bracket (BU)
BASE UNIT (BU-5BD21AL)
DISC TABLE
Note:
When the disc table is installed, adjust the positions
of roller cam amd mark ( as shown in the figure, then
set to the groove of disc table.
