Sony HCD-V4800 - CD Mechanism Deck Section

– 95 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 4-987-976-01 SCREW, STEP
352 4-944-490-01 BELT (TIMING)
353 A-4660-978-A GEAR (PULLEY) ASSY
354 4-978-421-01 GEAR (MID)
355 4-978-425-01 ROLLER (CAM)
356 4-978-420-01 CAM (HOLDER)
357 1-452-925-11 MAGNET ASSY
358 4-978-417-01 TABLE, DISC
360 X-4947-960-1 ROLLER ASSY
* 361 4-978-583-01 BRACKET (BU)
* 362 4-978-418-01 CHASSIS
* 363 4-980-385-01 HOLDER (SW)
* 364 A-4673-765-A CD MOTOR BOARD, COMPLETE
365 4-978-426-01 INDICATOR (NO.)
* 366 1-659-059-13 BD LED BOARD
* 367 1-659-058-13 TABLE SENSOR BOARD
368 4-933-134-01 SCREW (+PTPWH M2.6X6)
369 4-958-593-01 SPRING (BU), COMPRESSION
* 370 4-978-419-01 HOLDER (BU-5)
371 4-917-583-71 BRACKET, YOKE
372 4-989-493-01 SLIDER (37)
373 4-989-494-01 SCREW (SLIDER), STEP
374 4-989-819-01 SPRING, TENSION
375 4-989-491-11 COVER, LENS
376 4-994-963-01 PULLEY (LBT), PRESS
M201 A-4660-977-A MOTOR ASSY (TABLE)

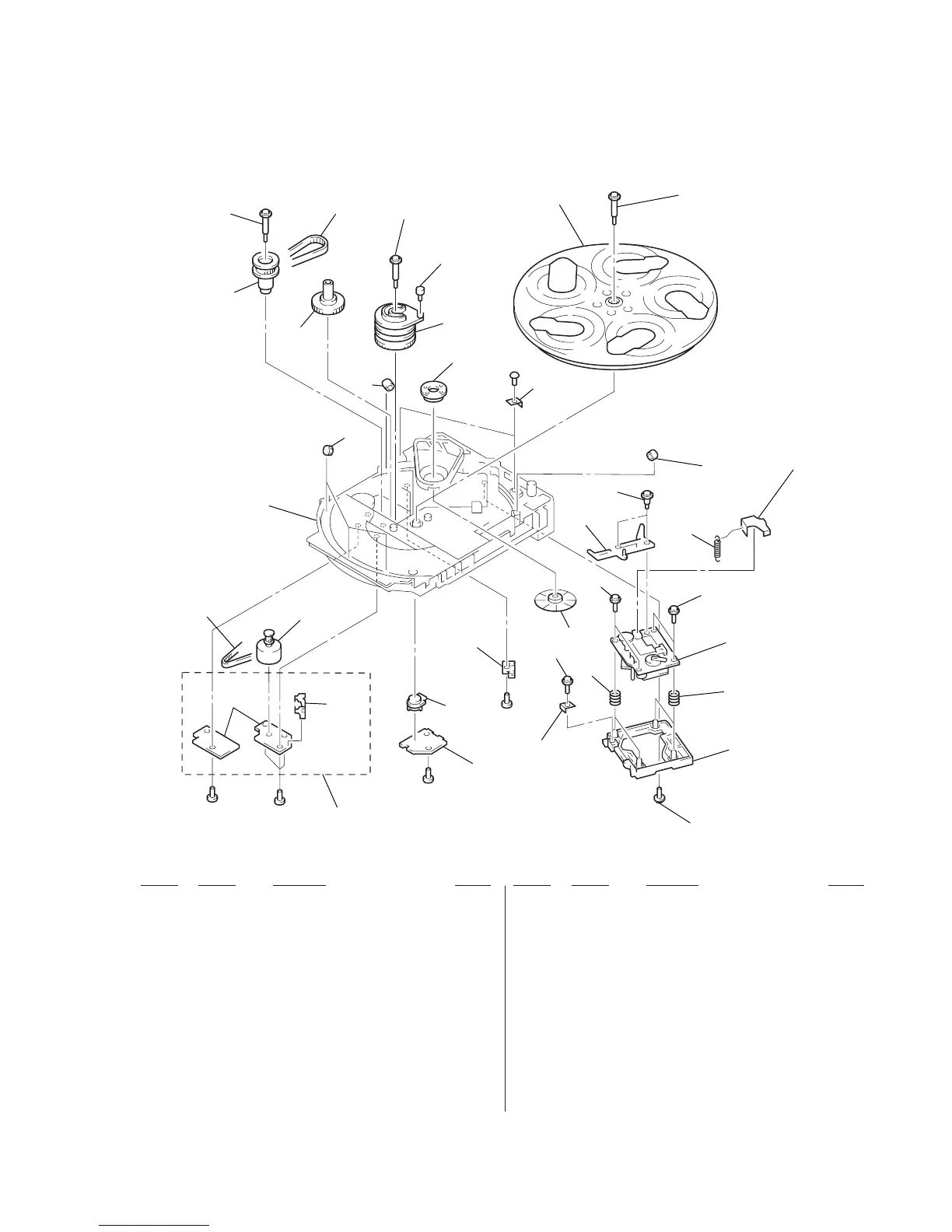

(8) CD MECHANISM DECK SECTION
(CDM37L-5BD21AL)
360
375
374
373
372
368
368
369
370
371
369
368
361
376
367
365
366
364
363
352
362
354
353
351
351
355
356
357
361
358
351
#1
M201
#1
#1
#1
#1
BU-5BD21AL
not
supplied
352
360
360
