Sony HCD-V4800 - Page 47

– 94 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 3-908-597-01 CAM (A)
302 3-908-608-11 SCREW, STEP
303 X-3372-930-3 ARM (A) ASSY, FR
304 X-3370-882-1 FLYWHEEL (AR) ASSY
305 3-928-047-01 PULLEY, TENSION
306 3-908-599-01 LEVER (REV-A)
307 3-908-601-01 SPRING (REV LEVER), TORSION
308 3-908-603-01 LEVER (TRIGGER A)
309 X-3367-593-1 FLYWHEEL (BF) ASSY
310 3-908-605-01 SPRING (TRIGGER), TORSION
311 3-908-609-01 GEAR, TRIGGER
312 3-913-845-11 BELT (A)
313 3-913-846-11 BELT (FR)
314 X-3370-171-1 FLYWHEEL (BR) ASSY
315 3-908-600-01 LEVER (REV-B)
* 316 1-650-669-11 LEAF SWITCH BOARD
317 3-908-598-01 CAM (B)
318 X-3372-931-3 ARM (B) ASSY, FR
319 3-911-114-12 SPRING (FR), TORSION
320 3-908-604-01 LEVER (TRIGGER B)
321 3-911-115-01 WASHER, STOPPER
322 3-917-176-11 BELT (B)
323 X-3370-172-1 FLYWHEEL (AF) ASSY
325 X-3371-441-1 CHASSIS ASSY, MECHANICAL
M1 X-3371-223-1 MOTOR ASSY (CAPSTAN)
M2 A-2004-410-A MOTOR ASSY (TRIGGER)

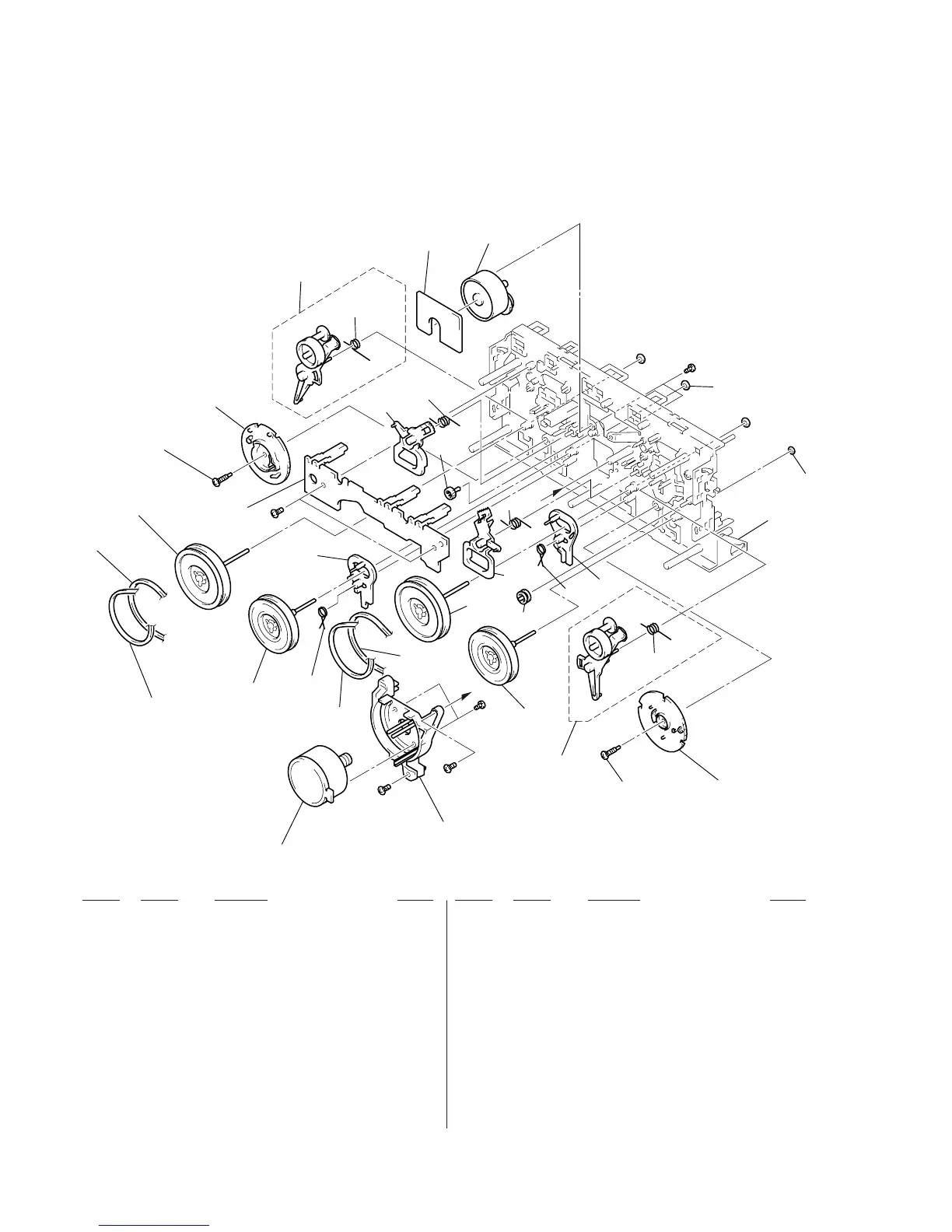

(7) TAPE MECHANISM DECK SECTION-3
(TCM-220WR2)
r C : MOTOR board (supplied with AUDIO board)
M2
#10
#10
#11
M1
not supplied
#7
#9
#9
#8
r C
318
319
317
302
316
309
313
322
314
307
313
312
303
304
302
301
319
325
321
321
305
308
310
307
306
315
323
320
310
311
