Sony HCD-V4800 - Page 43

– 90 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-4384-849-A PANEL ASSY, FRONT
102 4-987-036-01 KNOB (VOL)
103 X-4947-961-1 LID ASSY, CASSETTE
104 4-987-032-01 DISPLAY (TA)
105 4-987-028-01 DISPLAY (ST)
106 4-987-021-01 INDICATOR (TC A)
107 4-986-997-01 BUTTON (DECK. A) (ª. ·. p. 0. ).
DIRECTION. DOLBY NR)
108 4-963-404-21 EMBLEM (5-A), SONY
109 4-973-644-01 KNOB (MIC)
110 4-951-620-01 SCREW (2.6X8), +BVTP
* 111 A-4398-651-A HP/MIC BOARD, COMPLETE
112 4-986-986-01 BUTTON (POWER) (POWER. t/CLOCK SET.
REC. DAILY 1. DAILY 2. SLEEP)
113 4-987-017-01 INDICATOR (KEY. CON)
114 4-987-012-01 INDICATOR (TA)
115 4-986-990-01 BUTTON (CURSOR) (GEQ)
116 X-4947-965-1 BUTTON (SOUND) ASSY (WAVE. SURROUND.
P FILE MEMORY. GEQ CONTROL.
KARAOKE PON/MPX. ˜. n)
117 4-978-683-01 SPRING, COMPRESSION
* 118 4-987-041-01 COVER, CURSOR
119 X-4947-963-1 BUTTON (FUNCTION) ASSY
(EFFECT. GROOVE. FUNCTION)
* 120 A-4403-138-A PANEL BOARD, COMPLETE
121 1-773-051-11 WIRE (FLAT TYPE) (17 CORE)
122 X-4947-962-1 BUTTON (TUNER) ASSY
(TUNER/BAND. –. +. STEREO/MONO)
123 4-987-013-01 INDICATOR (TUNER)
124 X-4947-968-1 BUTTON (WOOFER) ASSY (SUPER W MODE)
125 X-4947-967-1 BUTTON (DECK B) ASSY (ª. ·. p. 0.
). P. r REC. H SPEED DUB. CD SYNC)
126 4-987-022-01 INDICATOR (TC B)
127 4-987-996-01 SPRING (TC LID), TENSION
128 4-948-236-01 CUSHION (107)

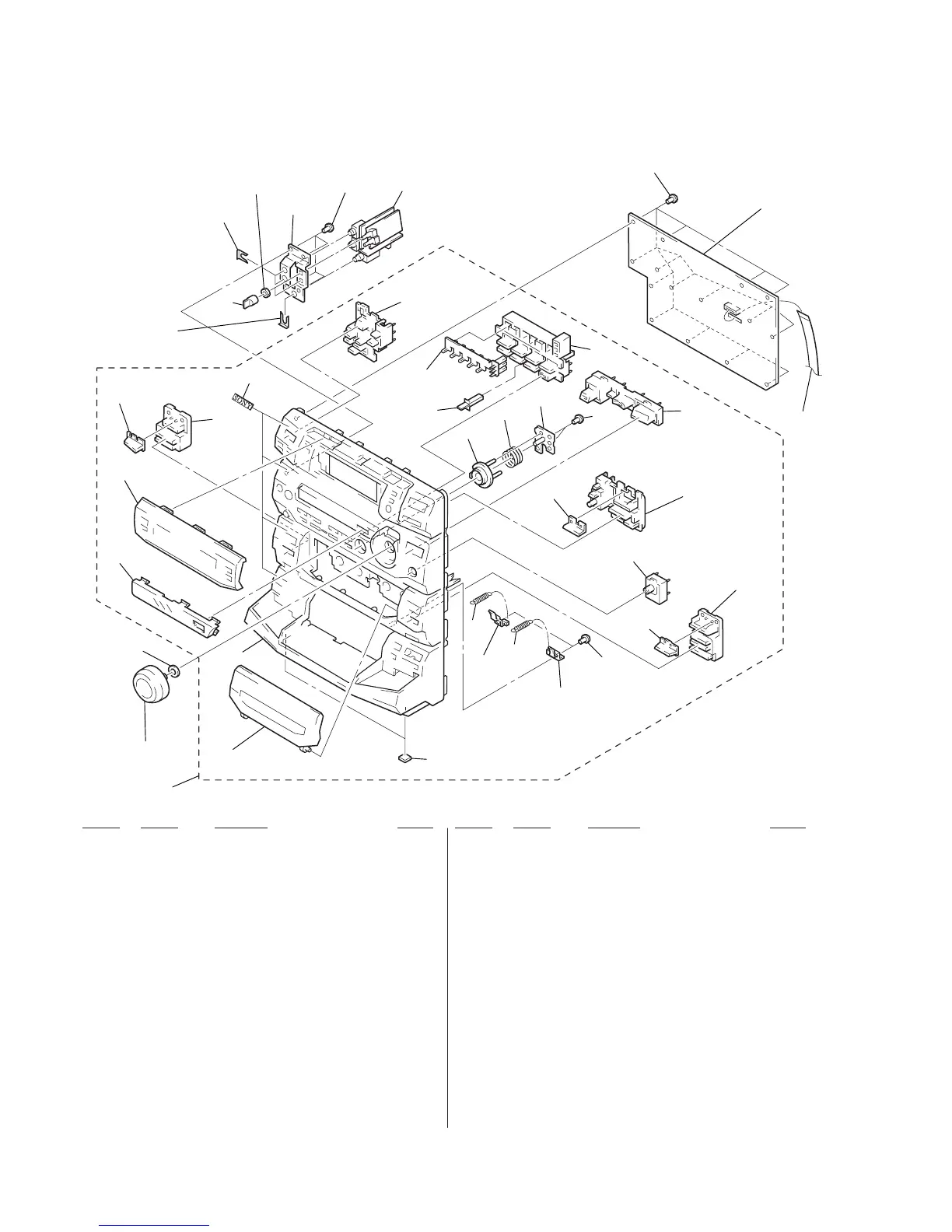

(3) FRONT PANEL SECTION-2
110
120
121
119
122
125
124
123
117
115
113
114
112
111
110
109
108
107
106
105
104
102
101
128
127
127
110
126
103
110
118
116
