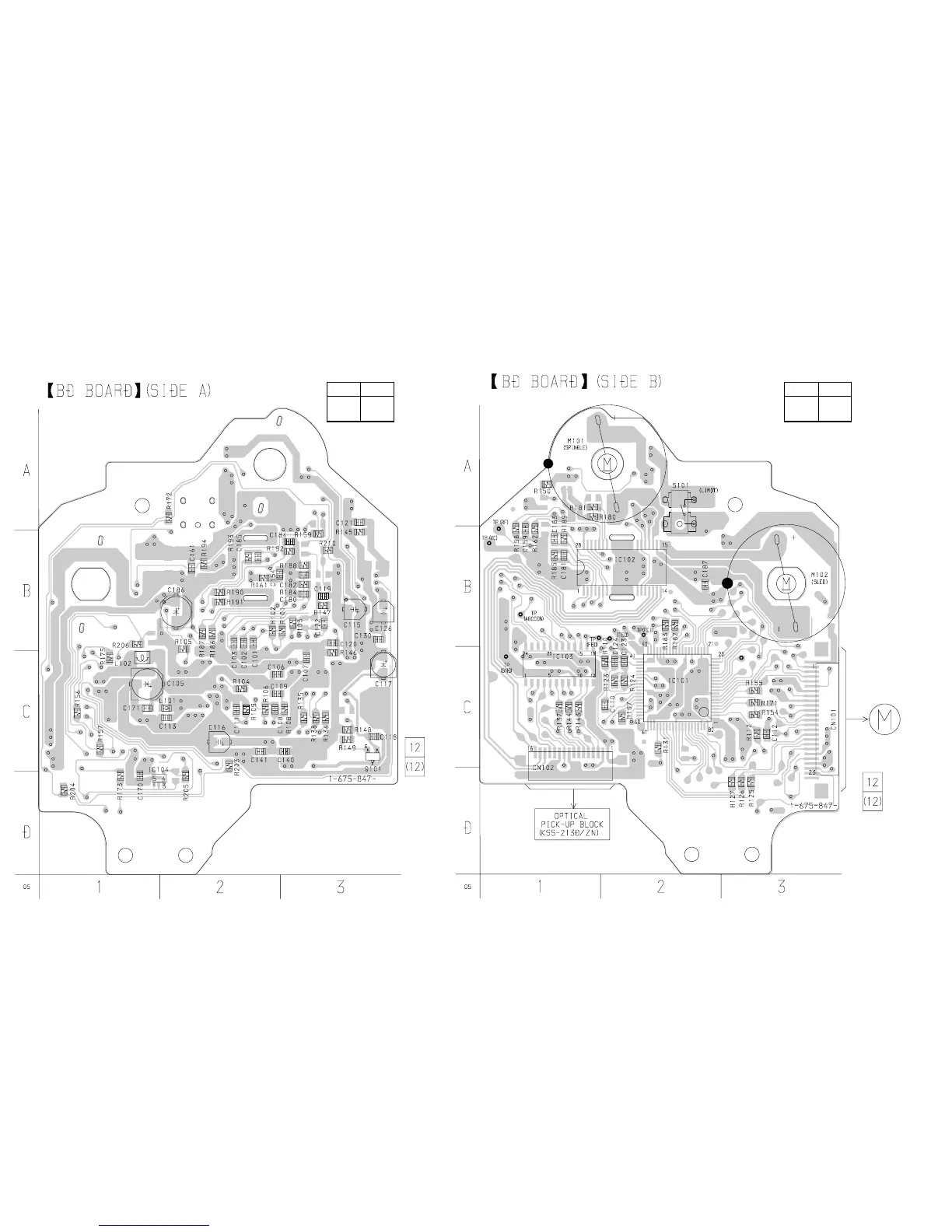

Sony HCD-VX88 - 7-3. PRINTED WIRING BOARD - BD SECTION -; 【BD BOARD】 (SIDE A); 【BD BOARD】(SIDE B)

HCD-VX88
28
28
TP (XPCK)
VIDEO BOARD
CN501
7-3. PRINTED WIRING BOARD – BD SECTION –
• See page 23 for Circuit Boards Location.
Ref. No. Location
IC104 D-1
Q101 C-3
• Semiconductor Location
Ref. No. Location
IC101 C-2
IC102 B-2
IC103 C-1
• Semiconductor Location
(Page 30)
