Sony HCD-VX88 - 7-19. PRINTED WIRING BOARDS - DRIVER SECTION -; 【MOTOR BOARD】; 【SENSOR BOARD】; 【DRIVER BOARD】

HCD-VX88
44
44

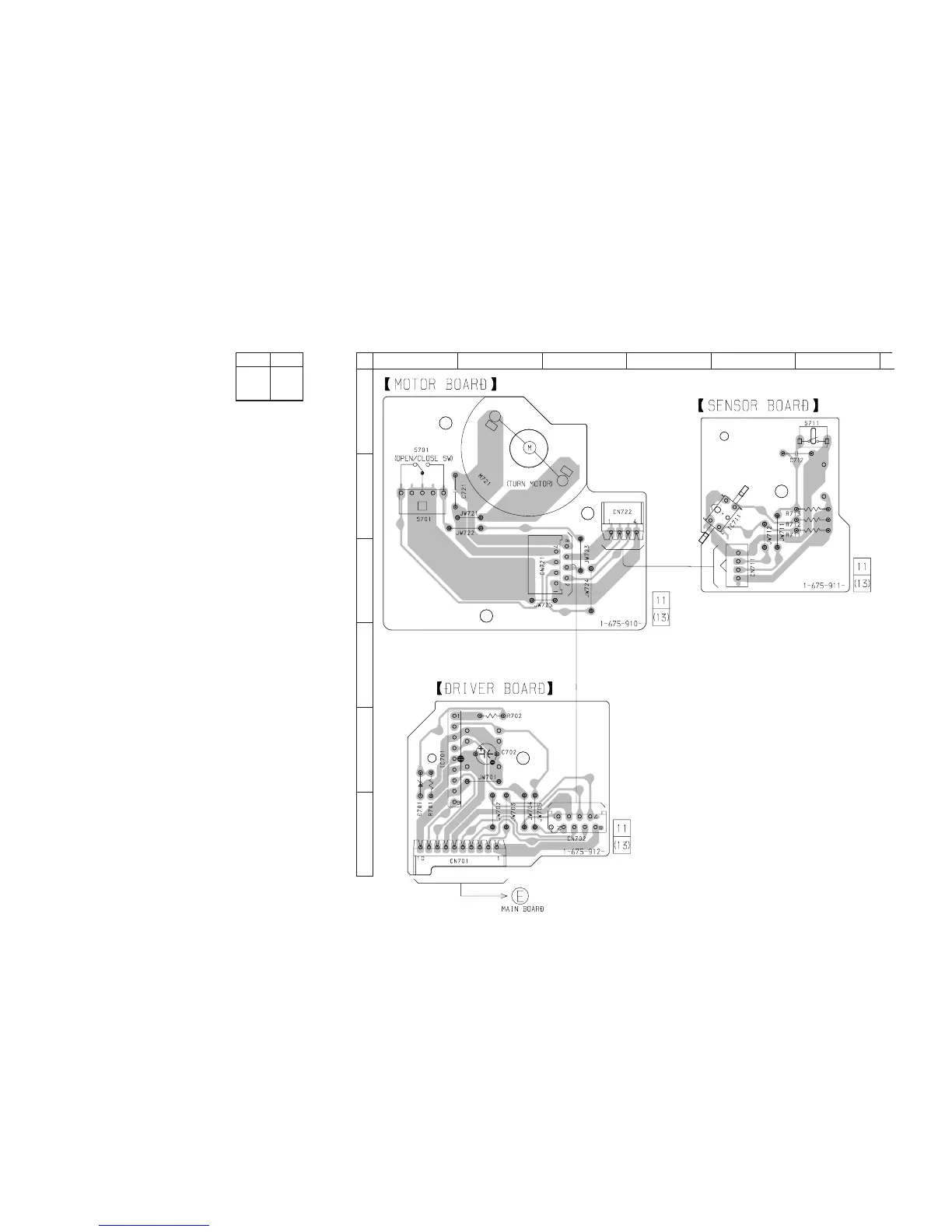

7-19. PRINTED WIRING BOARDS – DRIVER SECTION – • See page 23 for Circuit Boards Location.
05
CN202
(BU UP/DOWN)
12
A
B
C
D
E
F
3456
Ref. No. Location
D701 E-1
IC701 E-1
IC711 B-5
• Semiconductor
Location
(Page 34)
