Sony HCD-VX88 - SECTION 2 GENERAL; LOCATION OF CONTROLS

5
SECTION 2
GENERAL
1 DISC SKIP button
2 DISC 1 button and indicator
3 DISC 2 button and indicator
4 DISC 3 button and indicator
5 Z OPEN/CLOSE button
6 PREV button
7 NEXT button
8 RETURN button
9 CD disc tray
0 Fluorescent indicator tube
qa EDIT, TUNER MEMORY button
qs PLAY MODE, STEREO/MONO button
qd REPEAT, DOLBY NR button
qf DIRECTION button
qg CINEMA SPACE button
qh VOLUME knob
qj Shuttle knob
qk x button
ql hH button
w; PHONES jack
wa Tape deck-B
ws TAPE A/B button
wd CD button
wf Function indicator
wg TUNER/BAND button
wh MD (VIDEO) button
wj ?/1 button and indicator
wk DISPLAY button
wl SPECTRUM button
e; EQ EDIT button
ea GROOVE button
es ECHO LEVEL knob
ed MIC LEVEL knob
ef MIC2 jack
eg MIC1 jack
eh g, G, f, F button and indicator
ej PICTURE EFFECT button
ek V-GROOVE button and indicator
el Tape deck-A
r; – . button
ra X button
rs > + button
rd KARAOKE PON button
rf CD SYNC HI-DUB button
rg REC PAUSE/START button and indicator
rh ENTER button
1
9
rd
2 3 4 5
0
qa
qs
qd
qf
qg
qh
qj
qkql
w;
wa
rg
rf rh
rs
rar;
wh
wg
wfwd
ws
wj
wk
wl
e;
ea
es
ed
ef
eg
eh
ej
ek
el
76
8

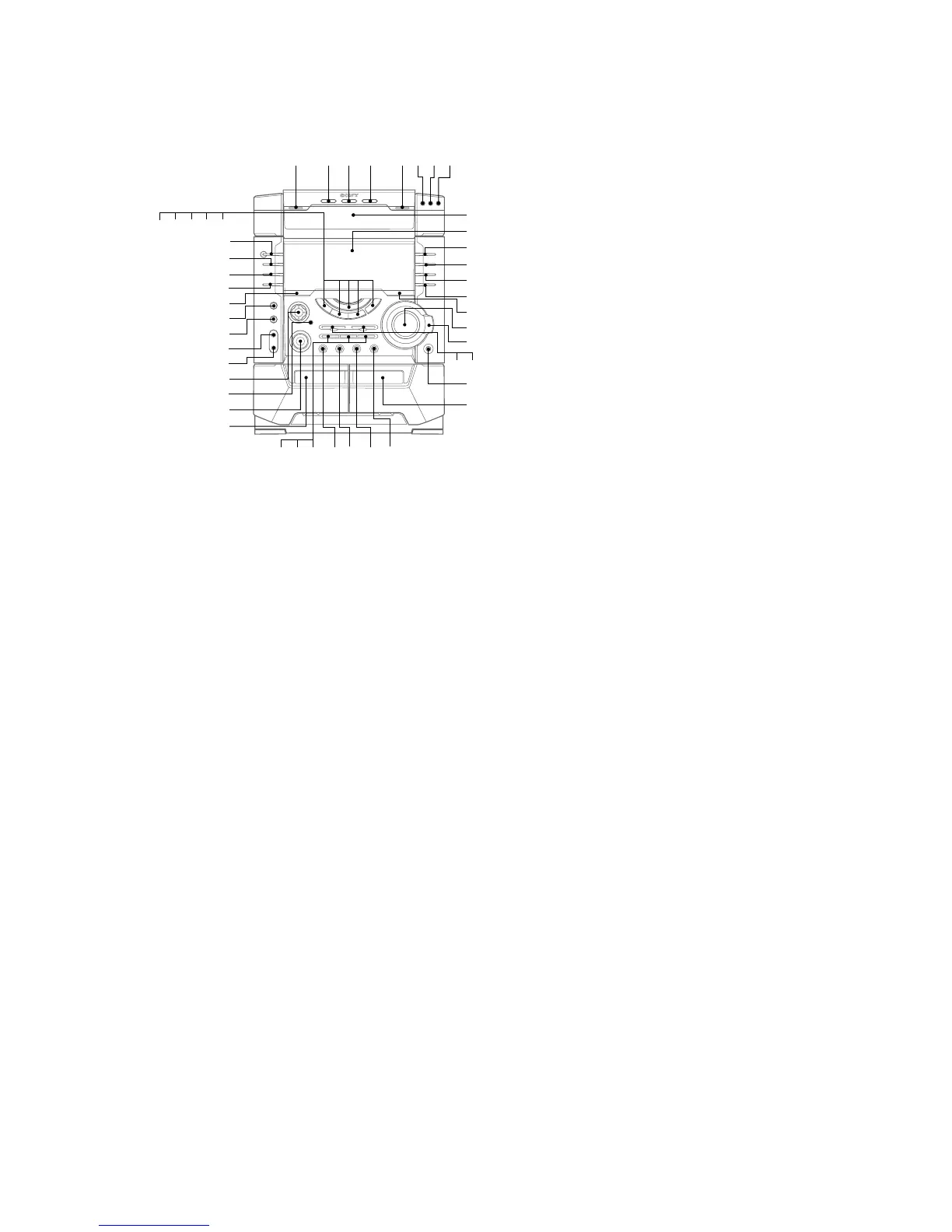

LOCATION OF CONTROLS
• Front view
