Sony HCD-VX88 - 7-8. SCHEMATIC DIAGRAM - VIDEO (3;3) SECTION -; VIDEO BOARD (3;3)

HCD-VX88
3333

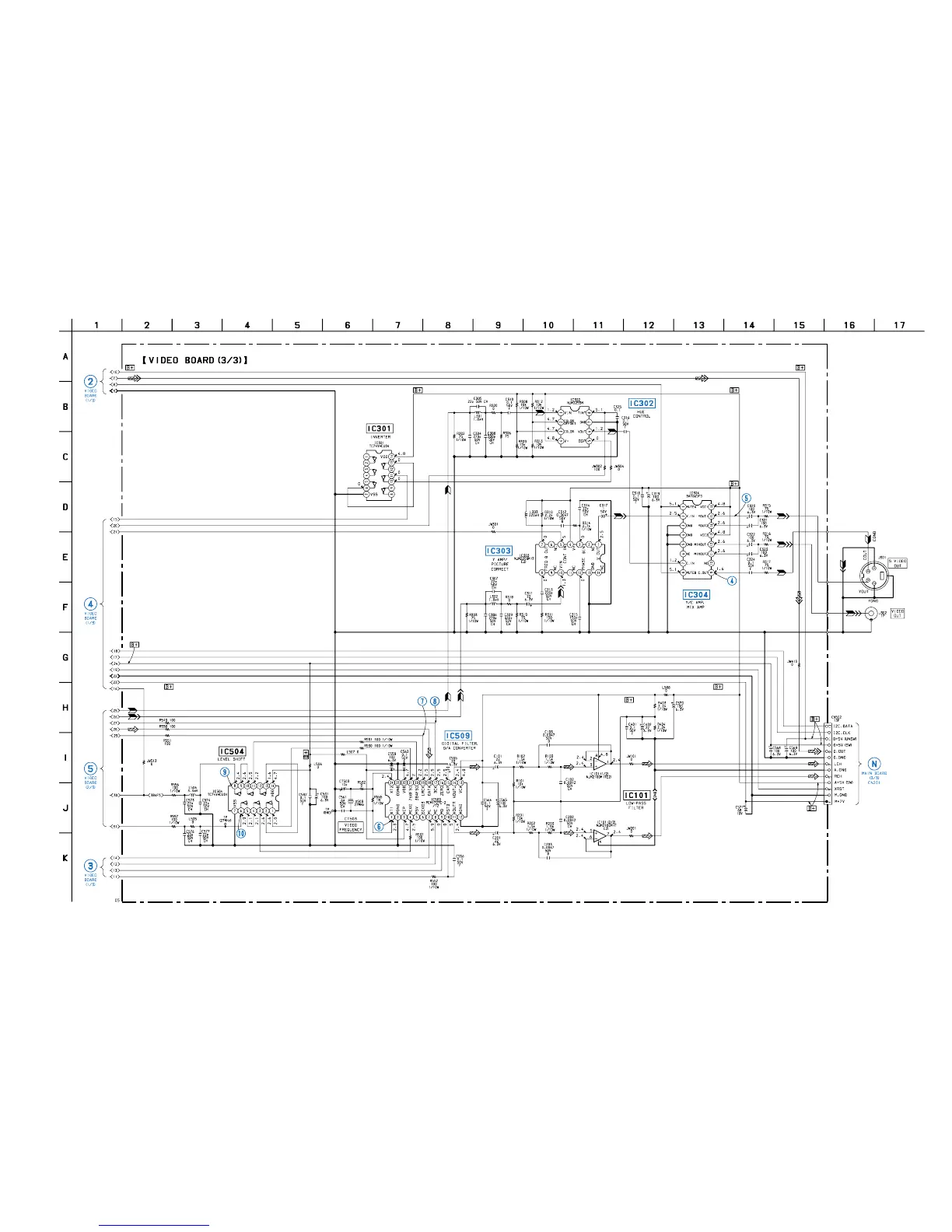

7-8. SCHEMATIC DIAGRAM – VIDEO (3/3) SECTION –
• See page 24 for Waveforms. • See page 57 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground in
test mode.
no mark : VIDEO CD COLOR-BARS mode
(Page 31)
(Page 31)
(Page 31)
(Page 32)
(Page 37)
