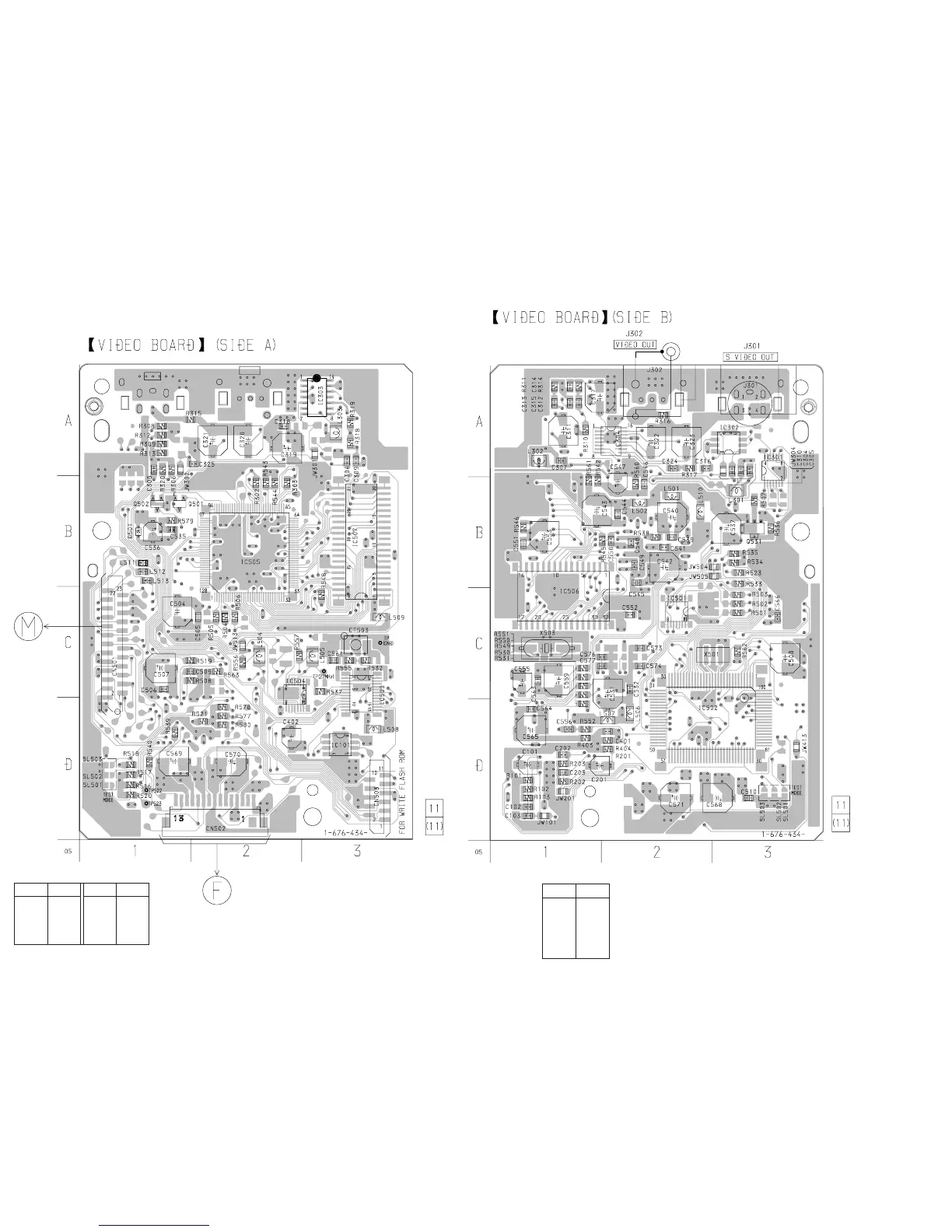

Sony HCD-VX88 - 7-5. PRINTED WIRING BOARD - VIDEO SECTION -; 【VIDEO BOARD】 (SIDE A); 【VIDEO BOARD】 (SIDE B)

HCD-VX88
30
30
BD BOARD
CN101
MAIN BOARD
CN201
7-5. PRINTED WIRING BOARD – VIDEO SECTION –
• See page 23 for Circuit Boards Location.
Ref. No. Location
IC301 A-3
IC302 A-3
IC304 A-2
IC501 C-2
IC502 D-2
IC506 C-1
Q531 B-3
• Semiconductor Location
Ref. No. Location
D501 B-1
IC101 D-3
IC303 A-3
IC504 C-2
IC505 B-2
• Semiconductor Location
Ref. No. Location
IC507 B-3
IC509 C-3
Q501 B-1
Q502 B-1
(Page 28)
(Page 34)
