(1) COVER SECTION
SECTION 8
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
• Abbreviation
EA : Saudi Arabia model
IA : Indonesian model
MY : Malaysia model
SP : Singapore model
CDM58-K2BD37A
#5
#3
#3
#3
#3
#
#3
#3
#3
#3
#5
#2
4
7
3
5
1
1
2
2
6

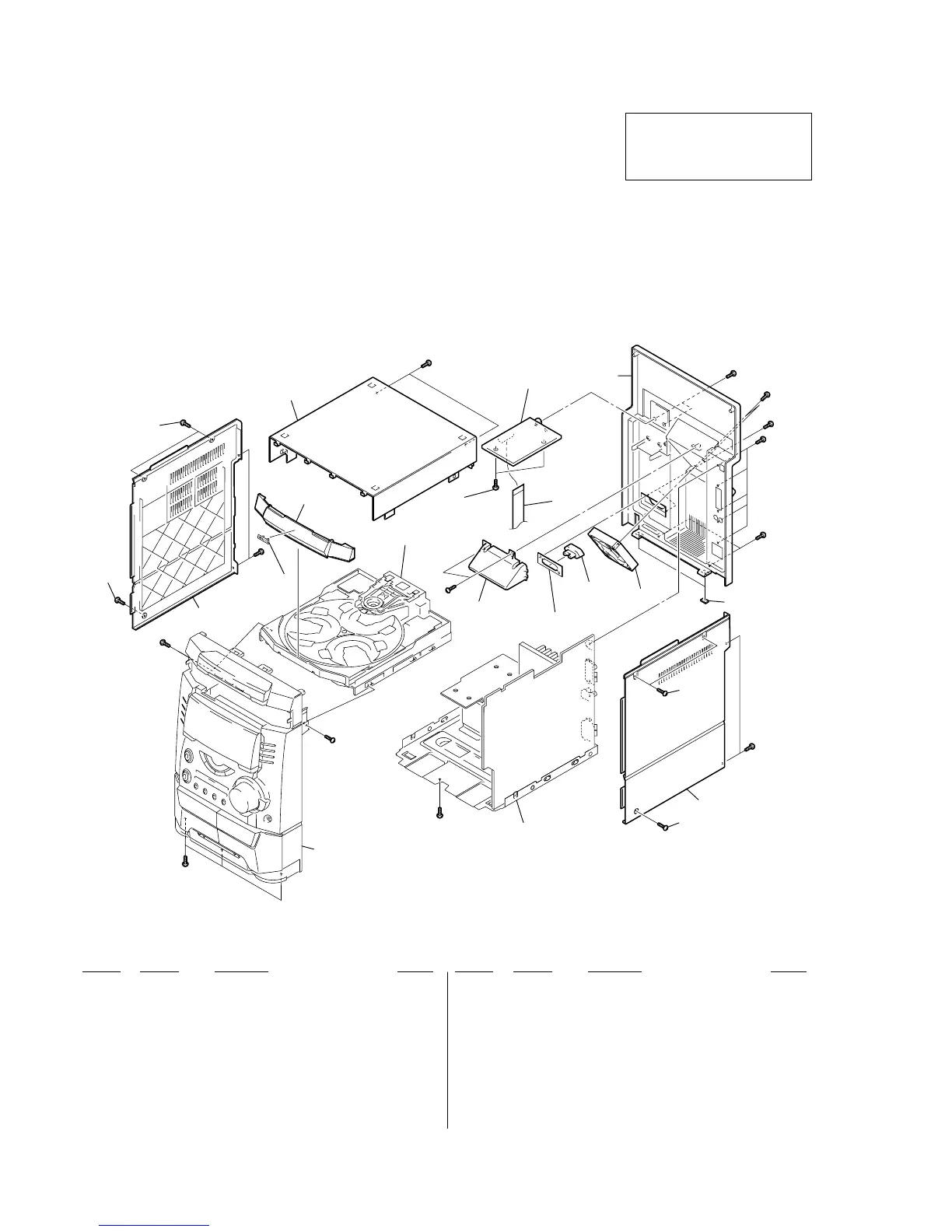

Front panel section
Chassis section
#3
M961
9
8
10
12
11
not supplied
not supplied
13
1 3-363-099-01 SCREW (CASE 3 TP2)
2 3-363-099-41 SCREW (CASE 3 TP2)
3 4-225-038-21 SIDE PANEL L
4 X-4952-778-1 LOADING PANEL ASSY (EA, MY, SP)
4 X-4952-779-1 LOADING PANEL ASSY (E)
4 X-4952-783-1 LOADING PANEL ASSY (IA)
5 4-225-039-21 SIDE PANEL R
6 4-224-550-21 COVER (TOP) (IA)
6 4-224-550-41 COVER (TOP) (E, EA, MY, SP)
7 4-991-781-01 EMBLEM (VCD)
8 4-225-040-71 BACK PANEL (E, EA, MY, SP)
8 4-227-061-21 BACK PANEL (IA)
9 4-225-252-01 CUSHION (FOOT)
10 A-4724-973-A VIDEO BOARD, COMPLETE
11 1-792-246-11 WIRE (FLAT TYPE) (23 CORE)
12 4-951-620-01 SCREW (2.6X8), +BVTP
0 13 1-526-794-11 OUTLET, AC
M961 1-763-072-11 FAN, D. C.
To Next Page
