Sony HCD-VX88 - 7-14. SCHEMATIC DIAGRAM - POWER AMP SECTION -; 【POWER AMP BOARD】

HCD-VX88
3939

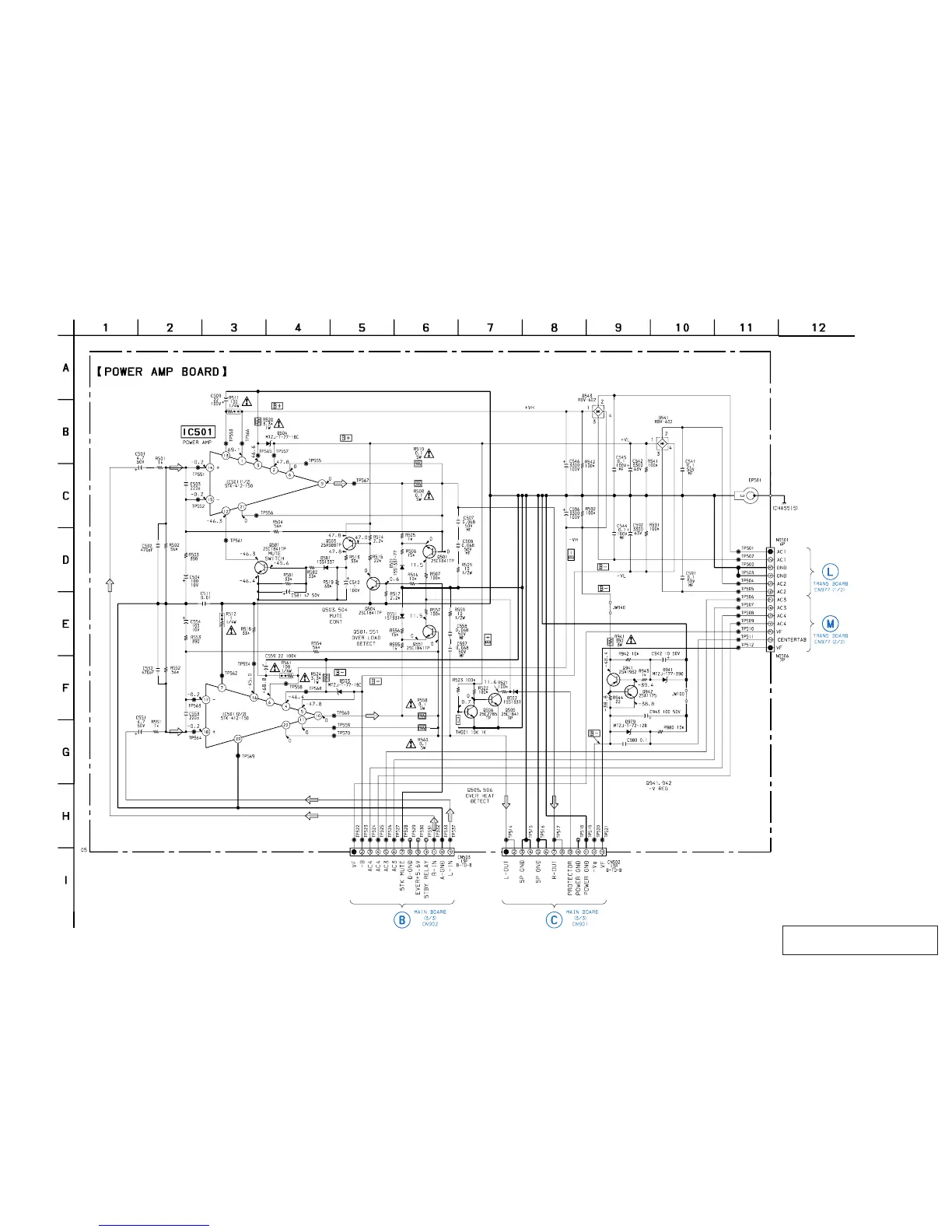

7-14. SCHEMATIC DIAGRAM – POWER AMP SECTION –
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD (STOP)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 37)
(Page 37)
(Page 47)
(Page 47)
