HCD-VX88
4747

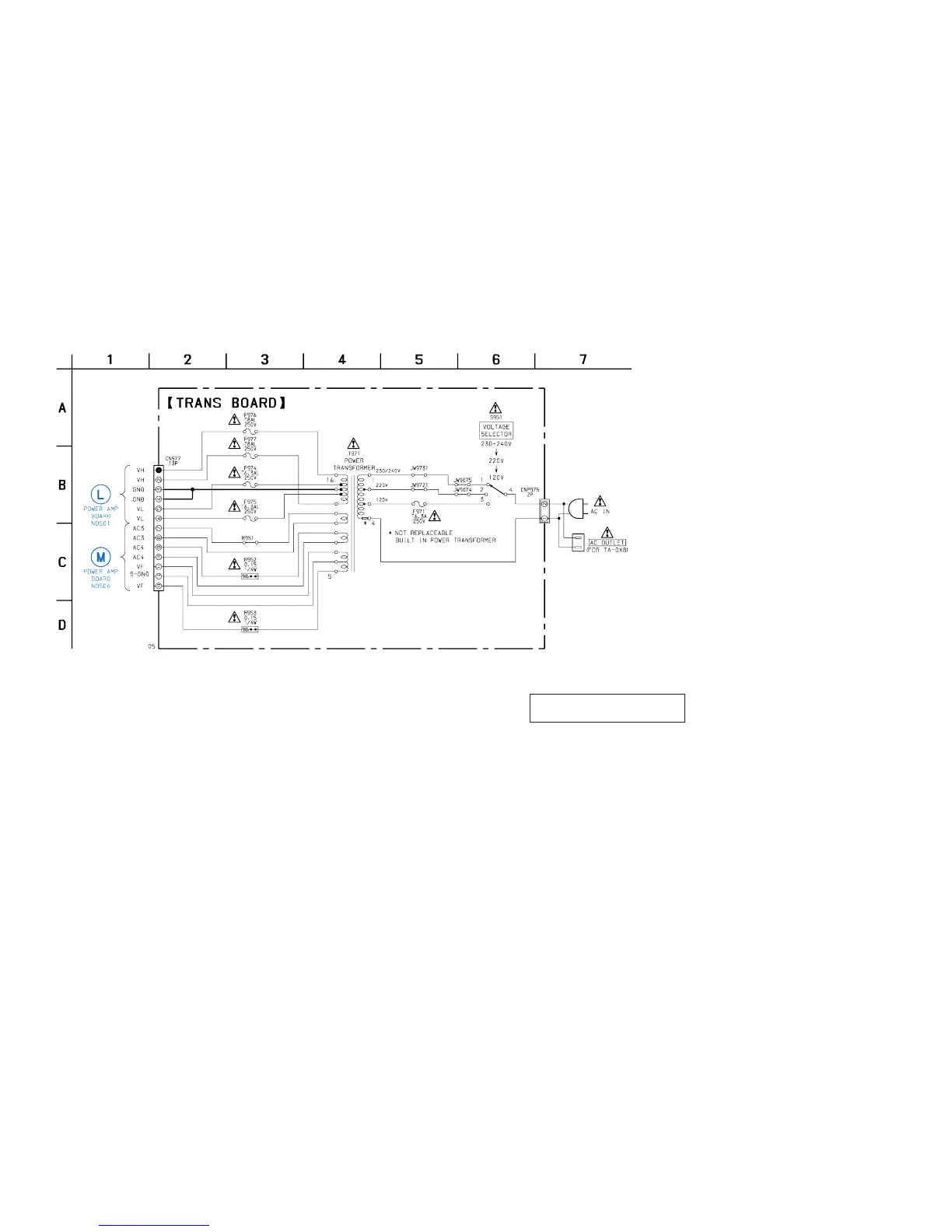

7-22. SCHEMATIC DIAGRAM – TRANS SECTION –
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 39)
