HCD-VX88
2929

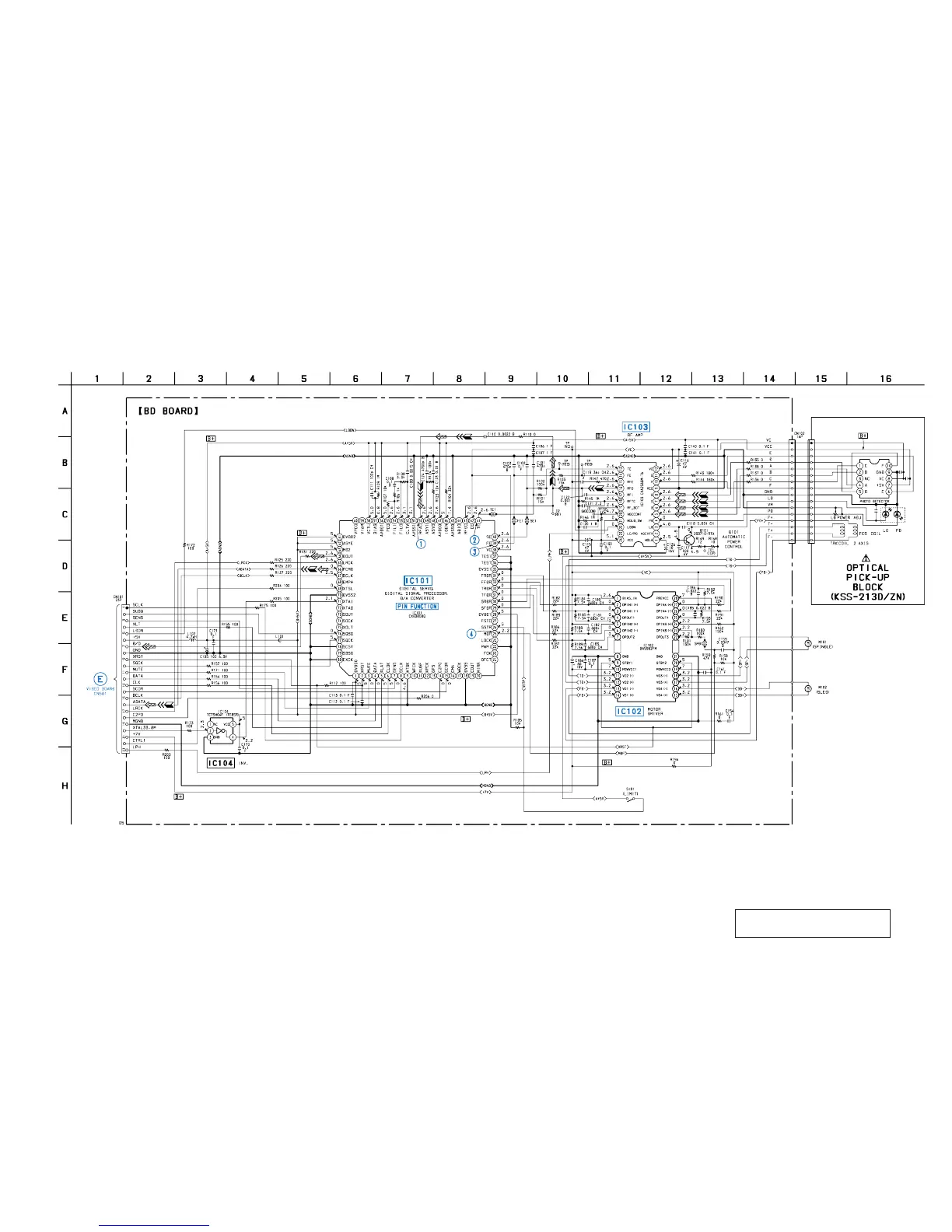

7-4. SCHEMATIC DIAGRAM – BD SECTION –
• See page 24 for Waveforms.
• See page 57 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : CD STOP
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
(Page 31)
To Next Page
