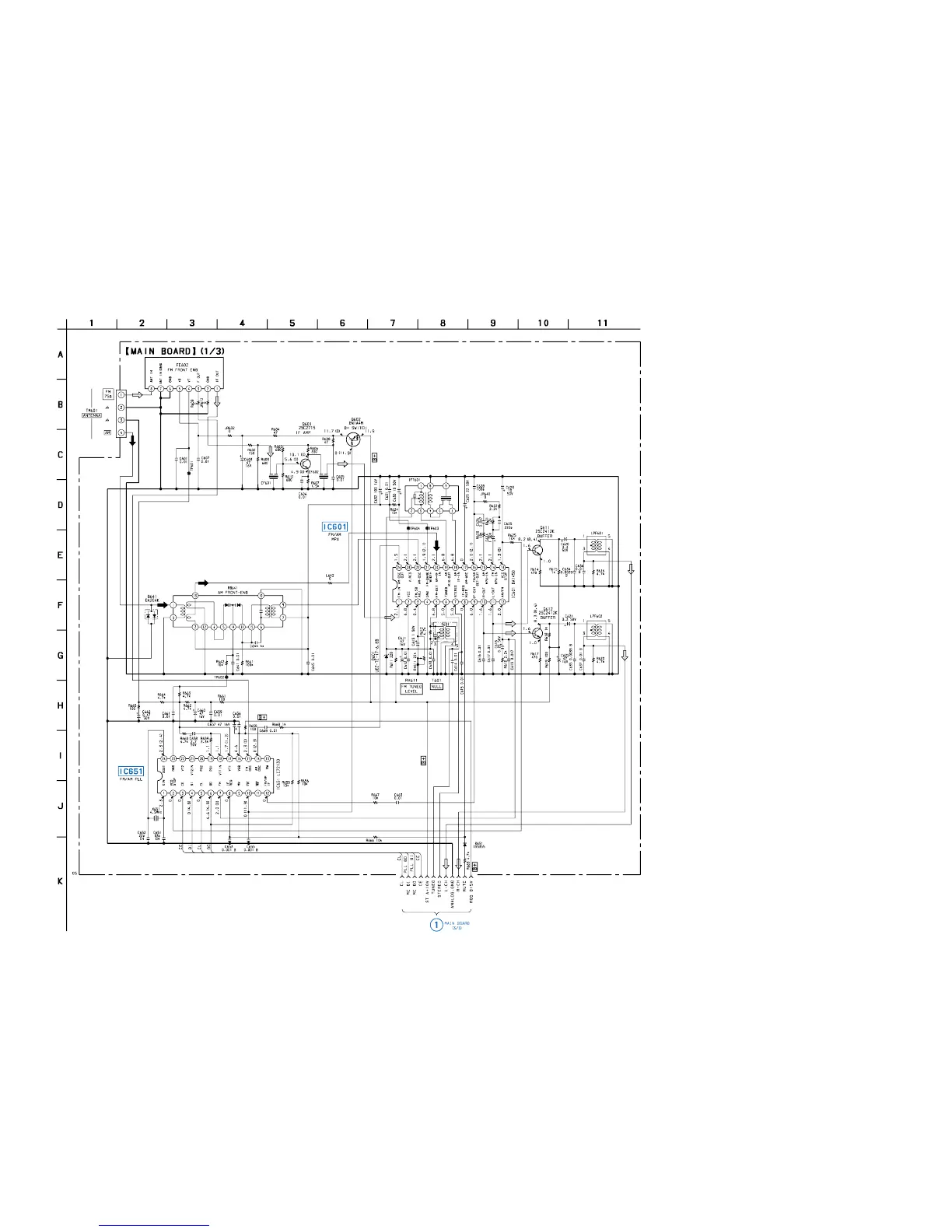

7-10. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –
• See page 57 for IC Block Diagrams.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : AM
(Page 37)
