Sony HCD-VX88 - 7-15. PRINTED WIRING BOARDS - PANEL SECTION -; 【CD SWITCH BOARD】; 【PANEL BOARD】

HCD-VX88
40
40

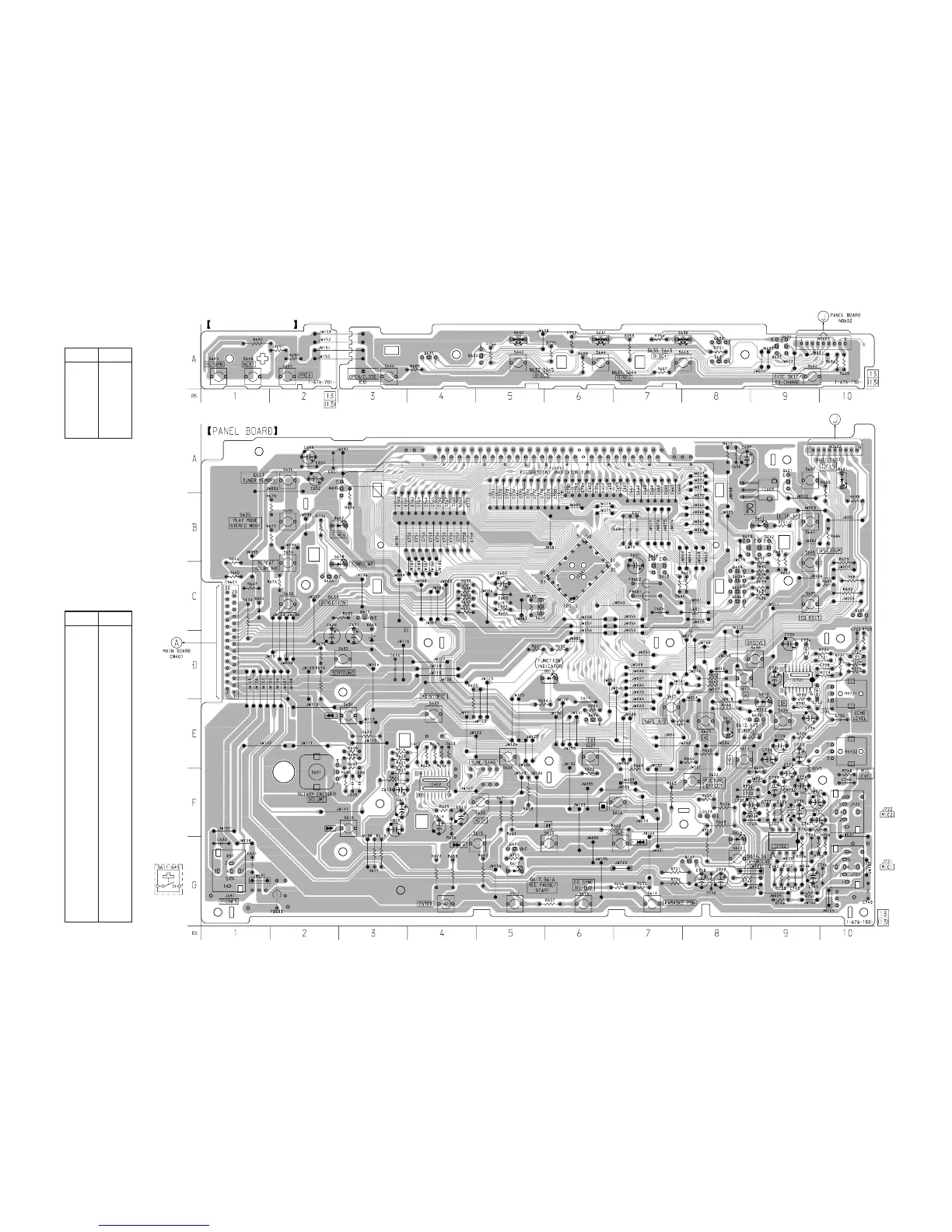

7-15. PRINTED WIRING BOARDS – PANEL SECTION – • See page 23 for Circuit Boards Location.
Ref. No. Location
D630 A-8
D631 A-6
D632 A-5
Q630 A-8
Q631 A-8
Q632 A-5
Q633 A-9
Q634 A-9
Q635 A-4
• Semiconductor
Location
– CD SWITCH Board –
CD SWITCH BOARD
CD SWITCH BOARD
NO603
Ref. No. Location
D601 A-10
D602 B-2
D603 D-3
D604 C-1
D605 F-9
D611 B-9
D612 E-8
D613 E-9
D614 G-8
D615 D-6
D617 G-5
D618 C-2
IC601 C-6
IC602 F-4
IC603 A-9
IC721 D-9
IC722 G-9
Q604 C-10
Q605 A-3
Q606 C-8
Q607 C-8
Q608 C-8
Q609 C-8
Q610 B-8
Q611 B-9
Q612 B-9
Q613 C-7
Q614 C-7
Q615 C-3
Q621 A-9
Q622 E-9
Q623 F-8
Q624 E-6
Q625 G-5
Q626 C-2
Q721 G-8
• Semiconductor
Location
– PANEL Board –
(Page 34)
