Sony HCD-VX880AV - 2 General

10
LOCATION OF PARTS AND CONTROLS
1 1/u button and indicator
2 DEMO (STANDBY) button
3 DISC 1 button and indicator
4 DISC 2 button and indicator
5 DISC 3 button and indicator
6 DISC SKIP/EX–CHANGE button
7 § (Eject) button
8 SYNC BASS H indicator
9 SVIDEO/VCD indicator
10 PBC indicator
11 PBC OFF indicator
12 SYNC BASS L indicator
13 TUNER/BAND button
14 ^ (CD) button and indicator
15 p button
16 SYNC BASS button
17 SYNC EQ button
18 KARAOKE PON/MPX button
19 CD NON-STOP button and indicator
20 REC PAUSE/START button and
indicator
21 DSP button and indicator
22 DBFB button
23 HI-DUB button
24 CD SYNC button
25 PHONES jack
26 VOLUME knob
27 ENTER/NEXT button and indicator
28 ) + button and indicator
29 PRO LOGIC button and indicator
30 JOG/0x) dial and indicator
31 GROOVE button and indicator
32 0 – button and indicator
33 DVD 5.1 CH button
34 CD FLASH button
35 CD LOOP button
36 MIC 2 jack
37 TIMER SELECT button and indicator
38 CLOCK/TIME SET button
39 MIC 1 jack
40 SPECTRUM ANALYZER button
41 DISPLAY button
42 MIC LEVEL knob
43 REPEAT/STEREO/MONO button
44 PLAY MODE/DOLBY NR button
45 EDIT DIRECTION TUNER MEMORY
button
46 ECHO LEVEL knob
47 P FILE MEMORY button
48 GEQ CONTROL button
49 FILE SELECT button
50 EFFECT button
51 NEXT button
52 PREV button
53 RETURN button
54 SELECT button
55 ( (TAPE B) button and indicator
56 9 (TAPE B) button and indicator
57 ( (TAPE A) button and indicator
58 9 (TAPE A) button and indicator
59 FUNCTION button
60 SYNC EQ indicator
61 Remote sensor
62 EFFECT indicator
63 Display Window
64 Disc tray
SECTION 2
GENERAL

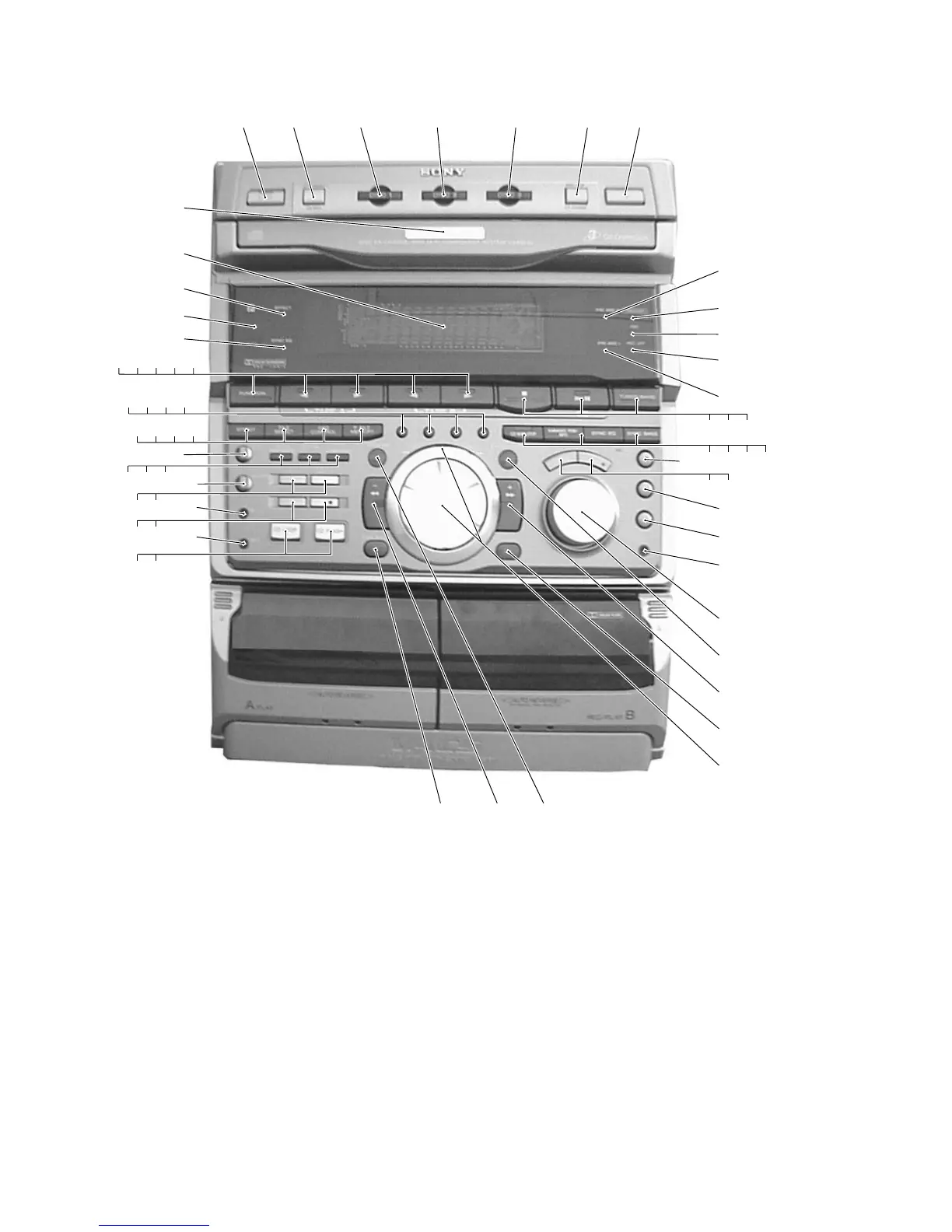

Front Panel
321
64
63
62
8
12
9
10
11
61
33 32 31
46
60
56575859
4567
55
51525354
47484950
15 14 13
20
23
24
25
26
27
28
29
30
1819 17 16
22 21
39
42
4041
44 4345
3435
36
3738
