Sony HCD-VX880AV - 7 Exploded Views; Case Section

63
SECTION 7
EXPLODED VIEWS

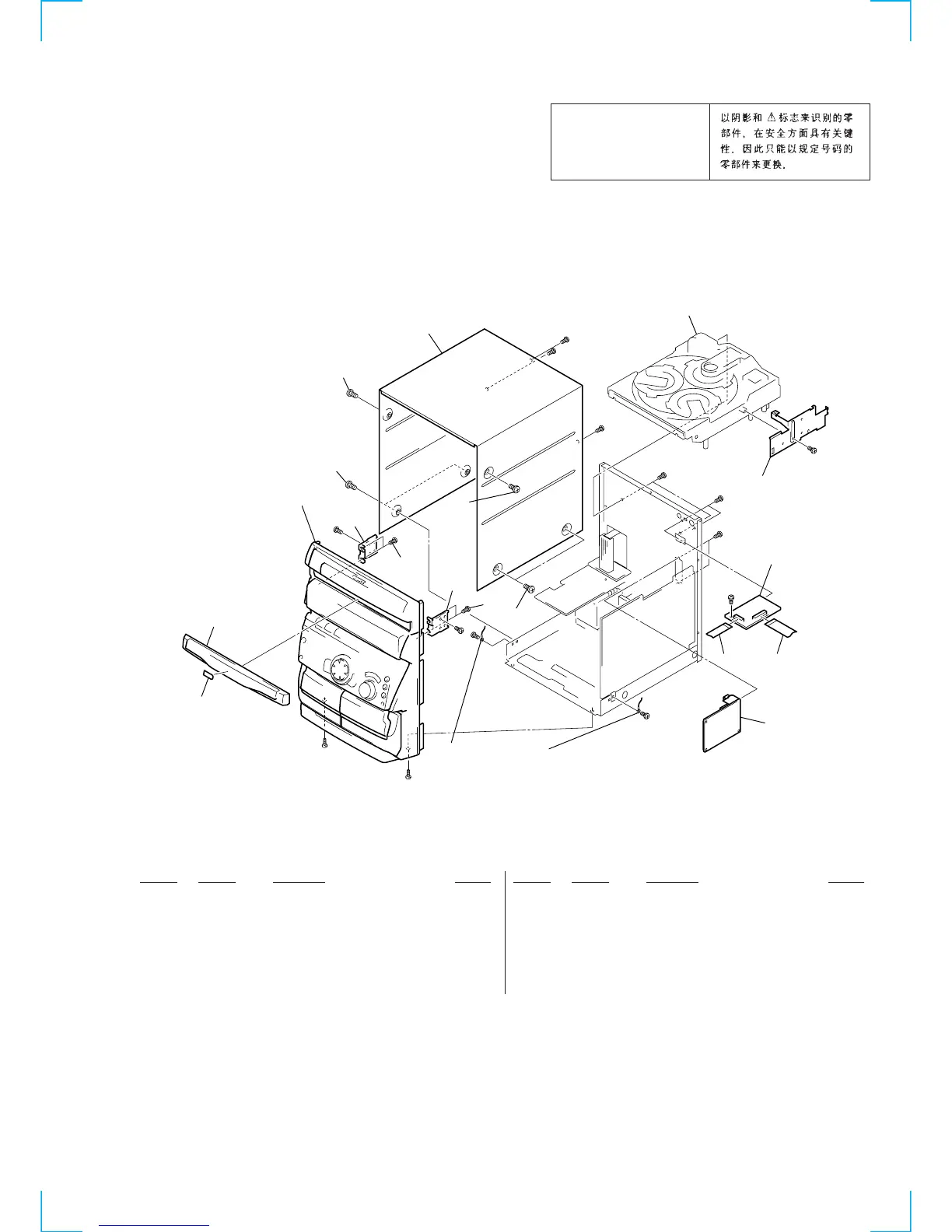

7-1. CASE SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 1 4-996-716-01 HOLDER (CDM)
2 3-363-099-71 SCREW (CASE 3 TP2)
3 3-363-099-11 SCREW (CASE 3 TP2)
4 4-215-179-01 CASE
5 1-693-381-11 TUNER UNIT (FM/AM)
4
2
2
3
1
6
6
1
3
5
#1
#2
#2
#12
#12
#1
CDM38LH-26BD36L
Front panel
#1
#7
#1
#1
#7
Including Panel board
(Ref No. 118)
8
7
#2
#2
#2
not supplied
11
9
10
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
6 4-951-620-01 SCREW (2.6X8), +BVTP
7 4-223-216-01 EMBLEM (S-VCD)
8 X-4952-097-1 PANEL ASSY, LOADING
9 1-791-517-11 WIRE (FLAT TYPE) (15 CORE)
10 1-775-229-11 WIRE (FLAT TYPE) (25 CORE)
11 A-4724-927-A VIDEO BOARD, COMPLETE
