Sony HCD-VX880AV - Printed Wiring Board - Front Amp Section

HCD-VX880AV
47 47

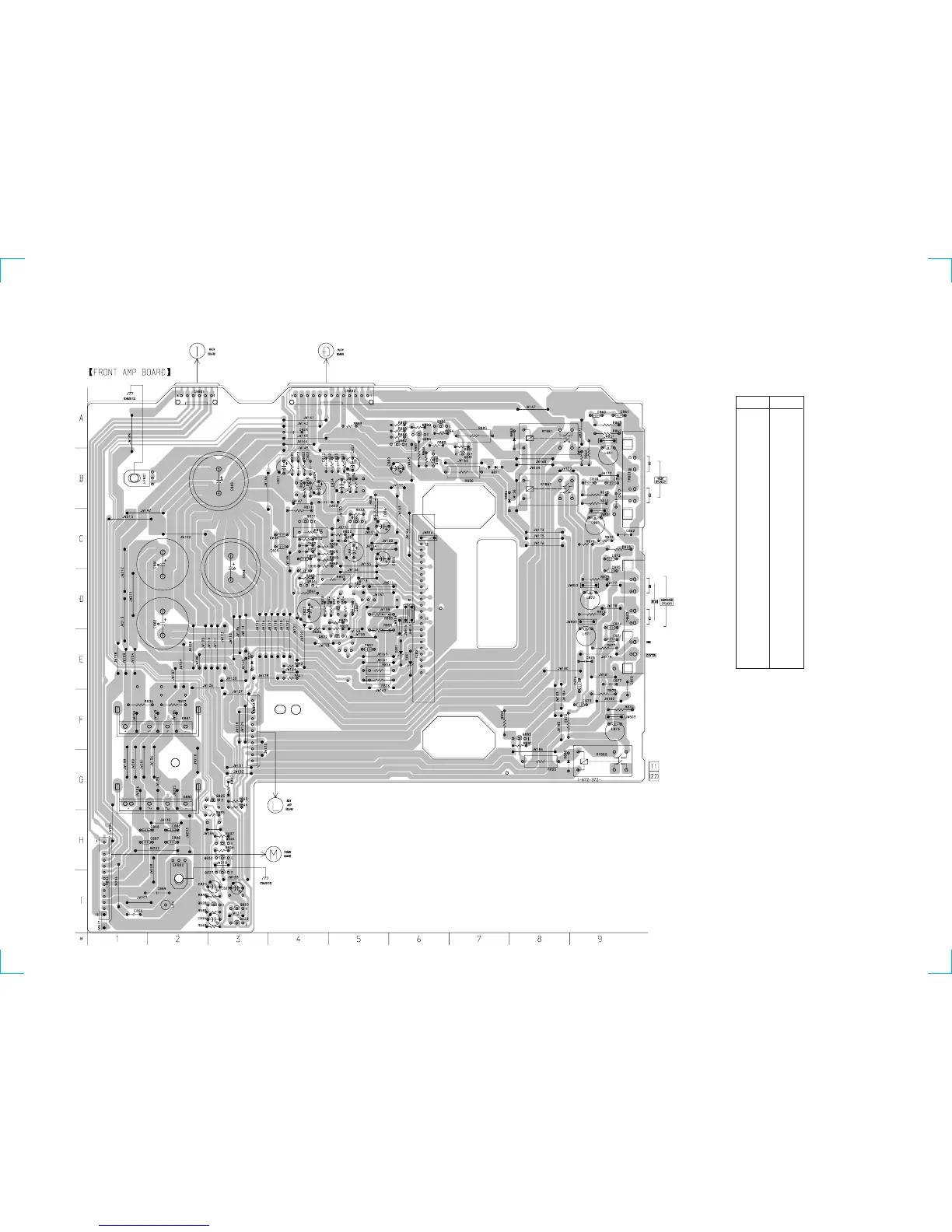

6-27. PRINTED WIRING BOARD – FRONT AMP SECTION –
• See page 20 for Circuit Boards Location.
(Page 39) (Page 39)
(Page 44)
(Page 45)
Ref. No. Location
• Semiconductor
Location
D801 E-6
D802 C-4
D821 E-3
D831 C-5
D851 E-6
D852 C-4
D871 B-7
D881 F-2
D882 G-2
D883 B-7
D884 B-7
D885 G-8
IC801 E-6
Q801 C-4
Q821 D-5
Q822 E-5
Q825 G-3
Q826 H-3
Q827 I-3
Q828 I-3
Q829 I-3
Q830 I-3
Q831 C-5
Q832 H-3
Q851 D-4
Q881 B-7
Q882 B-6
Q883 B-6
Q884 A-6
Q885 F-8
Q886 A-6
