Sony HCD-VX880AV - Chassis Section

64

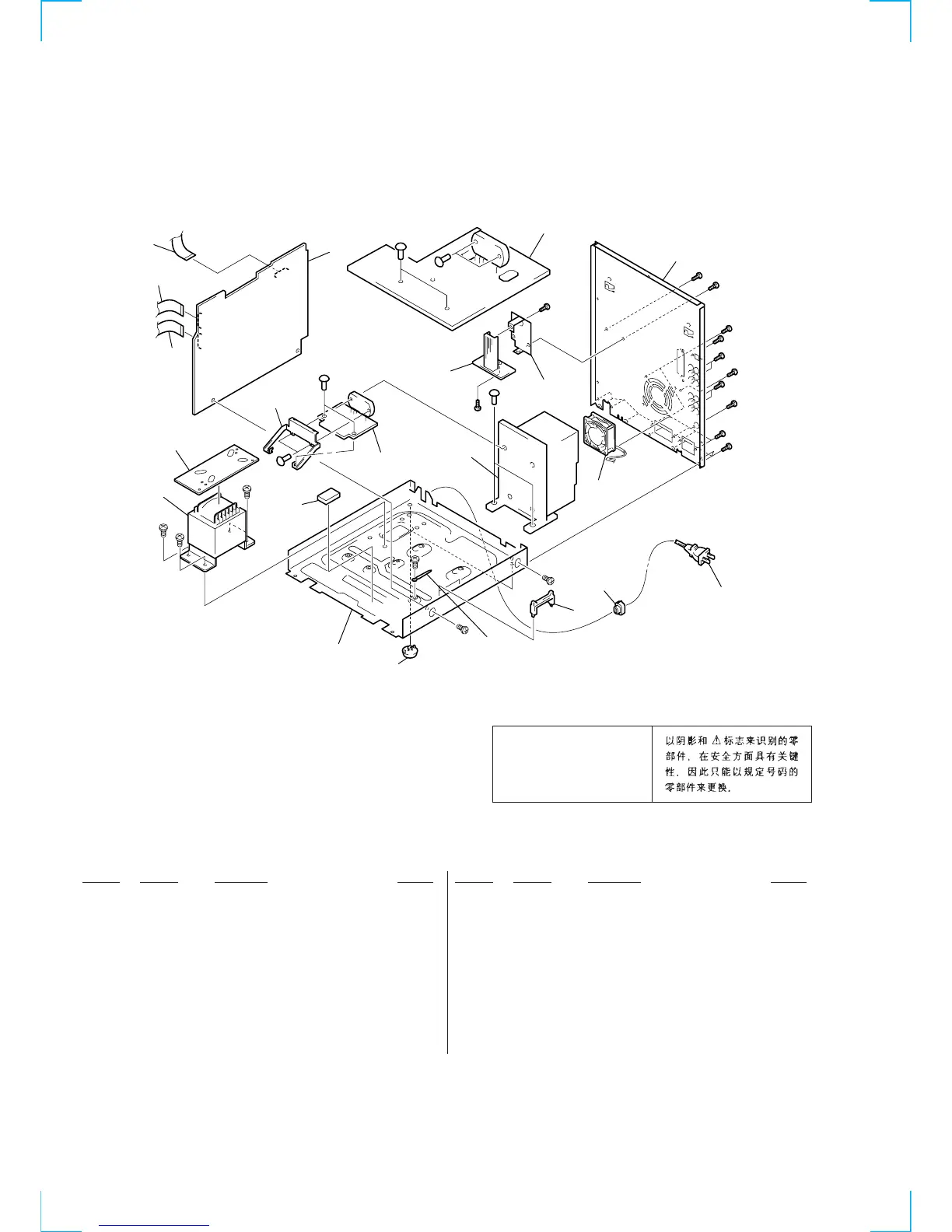

7-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-965-822-01 FOOT
* 52 1-672-369-11 TRANS BOARD
53 A-4426-786-A MAIN BOARD, COMPLETE
54 4-985-642-01 CUSHION
55 1-773-008-11 WIRE (FLAT TYPE) (15 CORE) (140 mm)
56 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
* 57 3-703-244-00 BUSHING (2104), CORD
* 58 4-988-533-01 HOLDER, PWB
! 59 1-782-464-21 CORD, POWER
60 A-4426-776-A FRONT AMP BOARD, COMPLETE
#2
#4
not supplied
not supplied
#2
#2
#2
#2
#2
#4
#2
60
63
64
not supplied
52
53
55
56
62
57
58
61
#2
#2
#2
T951
not supplied
#3
#3
#3
51
65
59
#2
#2
#2
#1
#2
#2
#2
#2
M901
54
61 4-215-642-71 PANEL, BACK
62 1-773-023-11 WIRE (FLAT TYPE) (15 CORE) (310 mm)
63 A-4426-779-A 3CH AMP BOARD, COMPLETE
64 1-675-906-11 5V POWER BOARD
65 3-701-822-01 HOLDER, WIRE
M901 1-763-072-11 FAN, D.C.
! T951 1-433-555-21 TRANSFORMER, POWER
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
