Sony HCD-VX880AV - Printed Wiring Board - Main Section

HCD-VX880AV
39 39
IC905 H-6
Q111 E-10
Q112 E-9
Q113 E-10
Q114 E-11
Q161 C-9
Q162 C-9
Q163 D-9
Q164 E-11
Q191 G-11
Q281 F-9
Q282 F-10
Q291 F-9
Q371 A-3
Q372 A-3
Q373 A-4
Q374 B-4
Q375 B-3
Q376 B-3
Q377 B-2
Q378 B-3
Q379 B-4
Q380 B-3
Q381 B-2
Q382 B-3
Q383 B-3
Q411 I-2
Q421 H-2
Q431 I-12
Q432 I-12
Q461 I-2
Q501 D-5
Q502 E-6
Q503 E-6
Q901 G-6
Q902 F-7
Q903 G-6
Q904 G-7
Q905 G-7
Q906 G-8
Q907 G-8
Q910 G-3
Q913 G-4
Q914 H-4
Q915 H-8
Q916 G-7
Q951 G-5
Q952 G-5
Q953 F-5
D141 I-9
D371 B-2
D372 B-2
D373 B-3
D374 B-3
D431 I-11
D432 I-11
D433 I-11
D434 I-10
D501 E-5
D502 E-5
D503 E-5
D504 E-5
D505 E-5
D506 D-4
D507 C-5
D508 E-4
D509 G-1
D510 H-2
D512 D-6
D901 I-6
D902 I-6
D903 J-6
D904 I-6
D905 G-6
D906 F-6
D907 F-5
D908 I-5
D909 I-5
D910 I-5
D911 J-5
D912 G-3
D914 I-8
D915 H-8
D918 H-8
D931 I-6
D932 I-6
D3001
IC101 C-10
IC201 G-10
IC301 D-3
IC421 A-13
IC501 C-5
IC502 E-5
IC901 H-8
IC902 G-4
IC903 H-4
IC904 F-4

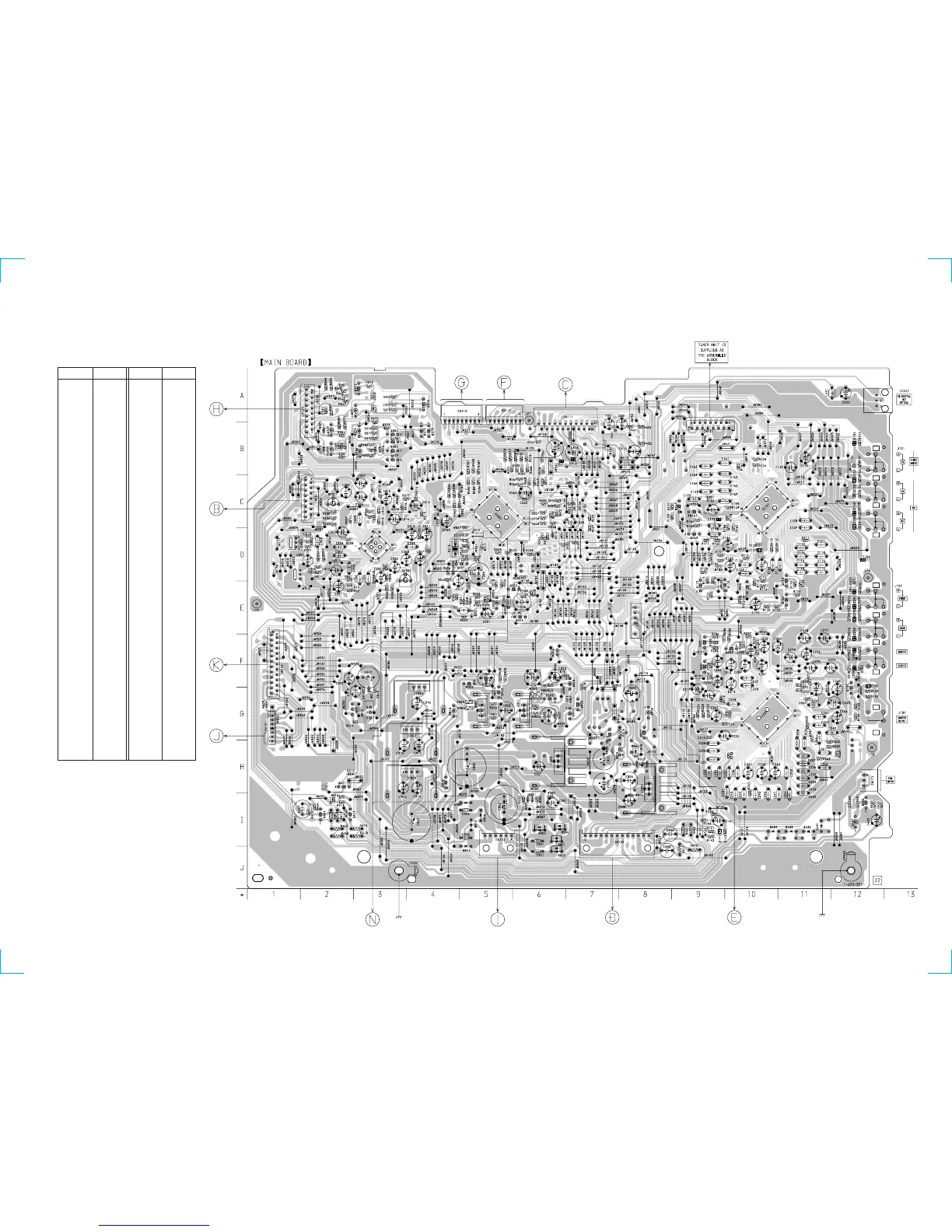

6-14. PRINTED WIRING BOARD – MAIN SECTION –
• See page 20 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
Ref. No. Location
LEAF SW
BOARD
(Page 43)
AUDIO
BOARD
(Page 31)
PANEL
BOARD
(Page 40)
TRANS
BOARD
(Page 45)
5V POWER
BOARD
(Page 44)
FRONT AMP
BOARD
(Page 47)
FRONT AMP
BOARD
(Page 47)
3CH AMP
BOARD
(Page 44)
(CHASSIS)
(CHASSIS)
MOTOR
(SLIDE)
BOARD
(Page 49)
CONNECTOR
BOARD
(Page 49)
VIDEO
BOARD
(Page 32)
