Sony HCD-VX880AV - Schematic Diagram - Trans Section; Printed Wiring Board - Trans Section

HCD-VX880AV
45 45
6-25. PRINTED WIRING BOARD – TRANS SECTION –
• See page 20 for Circuit Boards Location.

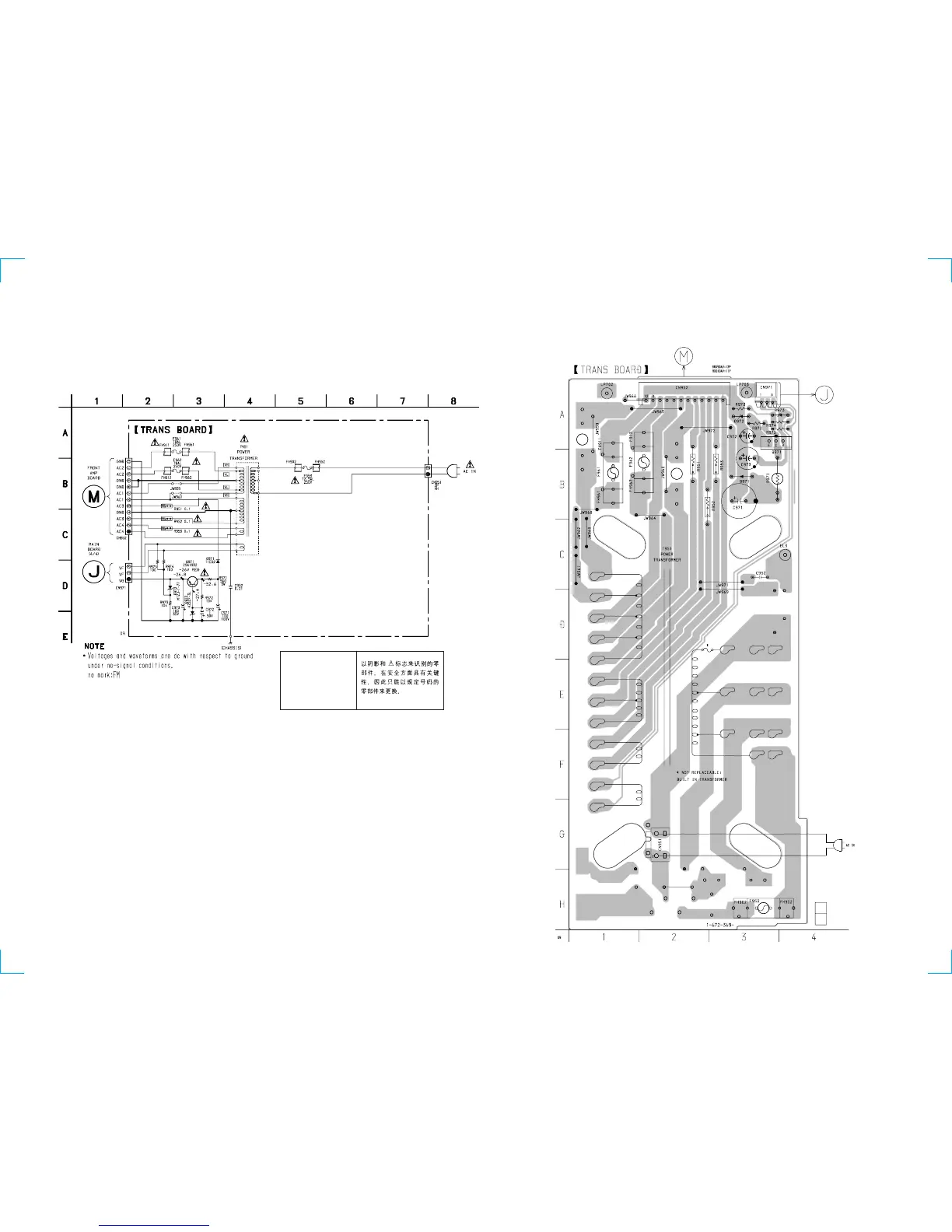

6-24. SCHEMATIC DIAGRAM – TRANS SECTION –
Note:
The components iden-
tified by mark ! or dot-
ted line with mark !
are critical for safety.
Replace only with part
number specified.
Note:
(Page 46)
(Page 38)
(Page 47)
FRONT
AMP
BOARD
MAIN
BOARD
(Page 39)
11
(27)
