Sony HCD-VX880AV - TC Mechanism Section-2 (TCM230 AWR2)

70

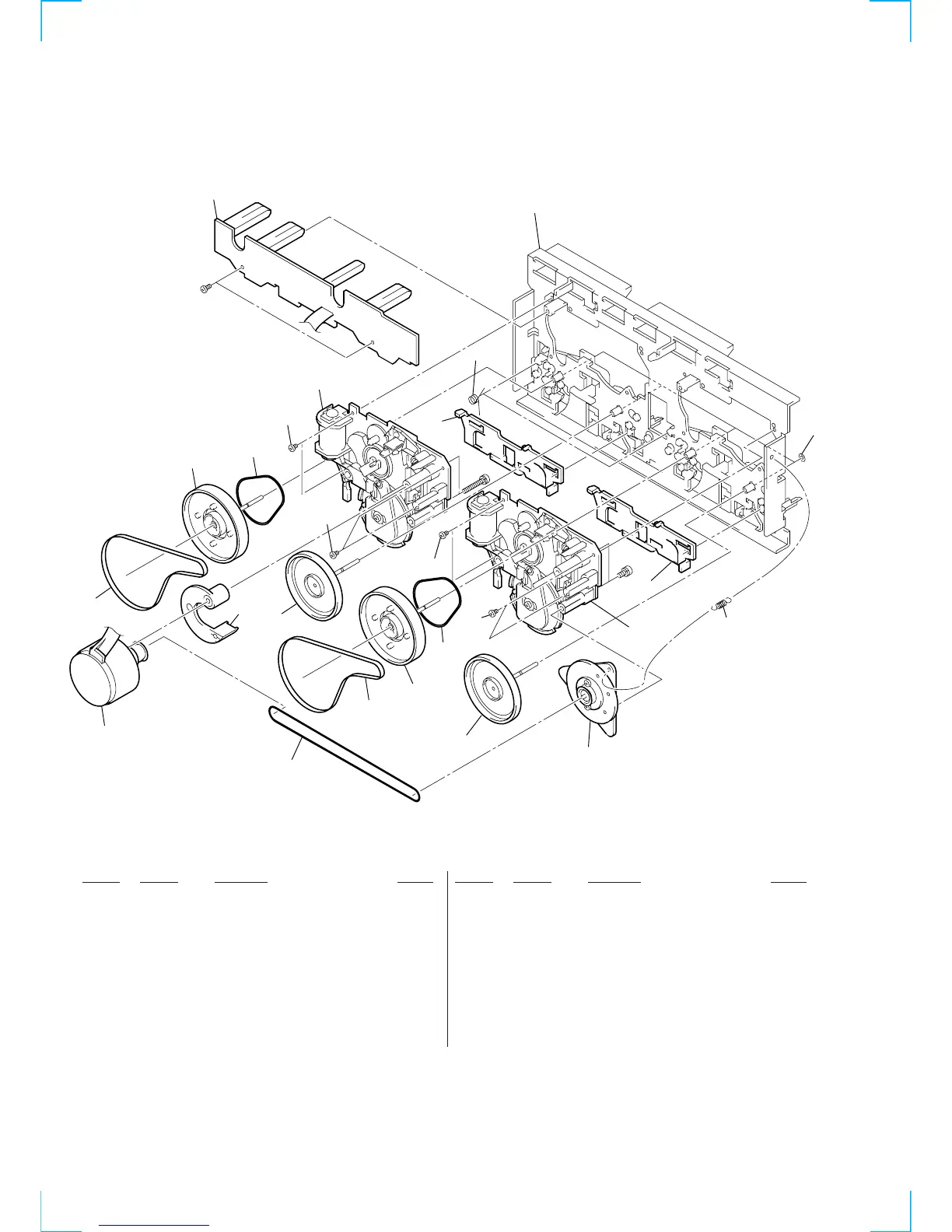

7-8. TC MECHANISM SECTION-2 (TCM230AWR2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 451 X-3374-214-4 CHASSIS ASSY, MAIN
452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)
454 3-017-360-01 BRACKET (MOTOR)
455 X-3376-497-3 FLYWHEEL (FWD) ASSY
456 X-3374-235-1 FLYWHEEL (REV) ASSY
457 X-3374-238-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR2)
459 A-2004-629-A MECHANICAL BLOCK ASSY
460 3-016-566-01 SLIDER, REVERSE
461 A-2007-732-A LEAF SW BOARD, COMPLETE
462 3-016-575-11 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER
464 3-027-453-01 SPRING (GROUND), TENSION
465 3-030-823-01 SCREW (+BVTT) (2X3.5)
M1 A-2004-628-A MOTOR ASSY, CAPSTAN
451
452
452
453
454
455
455
456
456
457
458
465
465
465
465
458
459
459
464
460
460
461
462
463
M1
#9
#10
#8
