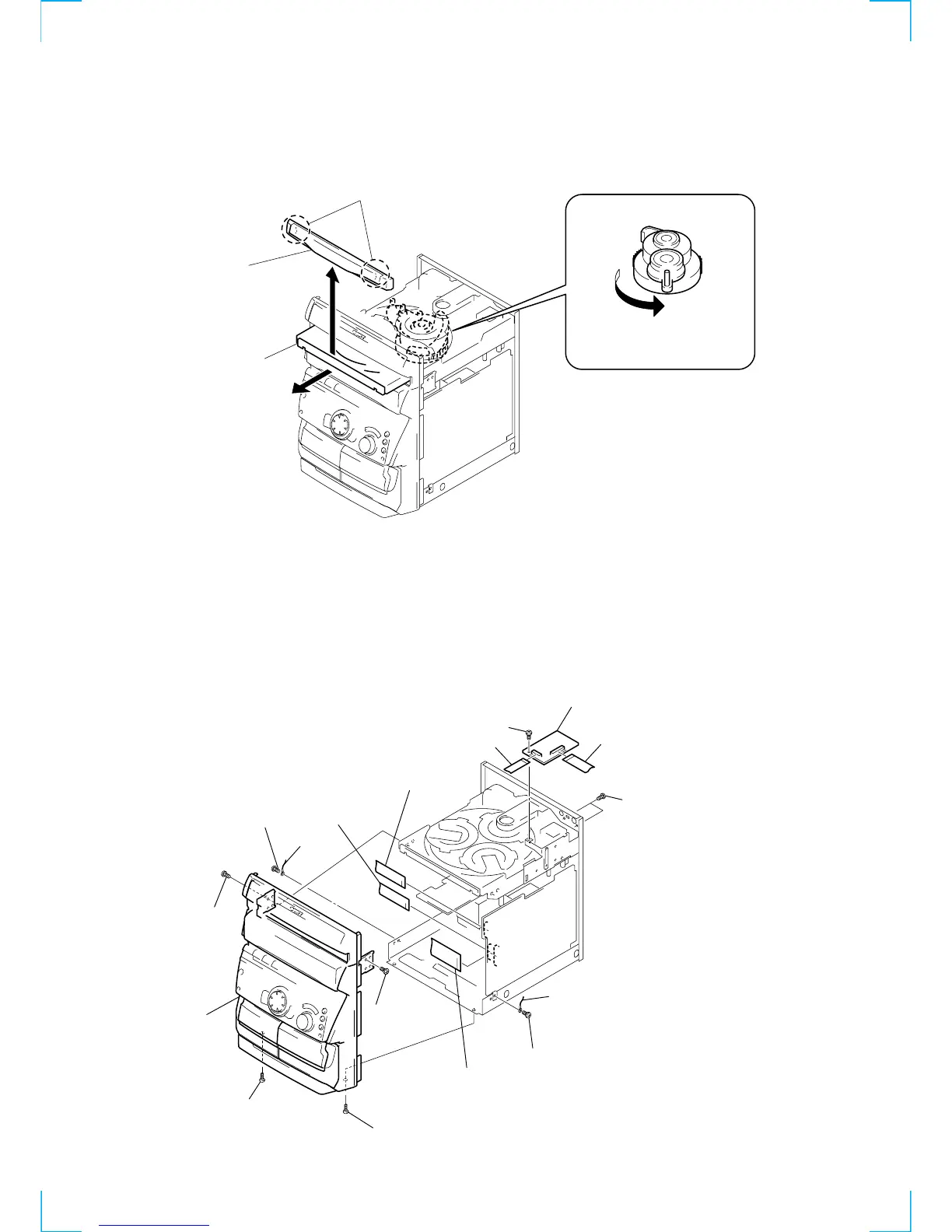

SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
3-1. LOADING PANEL
3-2. FRONT PANEL
3 Loading panel
assembly
2 Pull-out the disc tray.
1 Turn the cam to the direction
of arrow.
Claws
3 Screw
(
BVTT 3x8
)
4 Screw (BVTT 3x8)
0 Front panel
!¢ Screw (BVTP 3x8)
!∞ Video board
6 Screw (BVTP 3x10)
!£ Two screws (BVTP 3x8)
5 Screw
(BVTP3x10)
1 Screw (BVTT 3x6)
2 Screw (BVTT 3x6)
7 Flat type wire
(CN141)
8 Flat type wire
(CN131)
Lead wire
Lead wire
9 Flat type wire
(CN132)
!¡ Flat type wire
(CN501)
!™ Flat type wire
(CN502)
