Sony HCD-VX880AV - Printed Wiring Board - Video Section

HCD-VX880AV
32
32

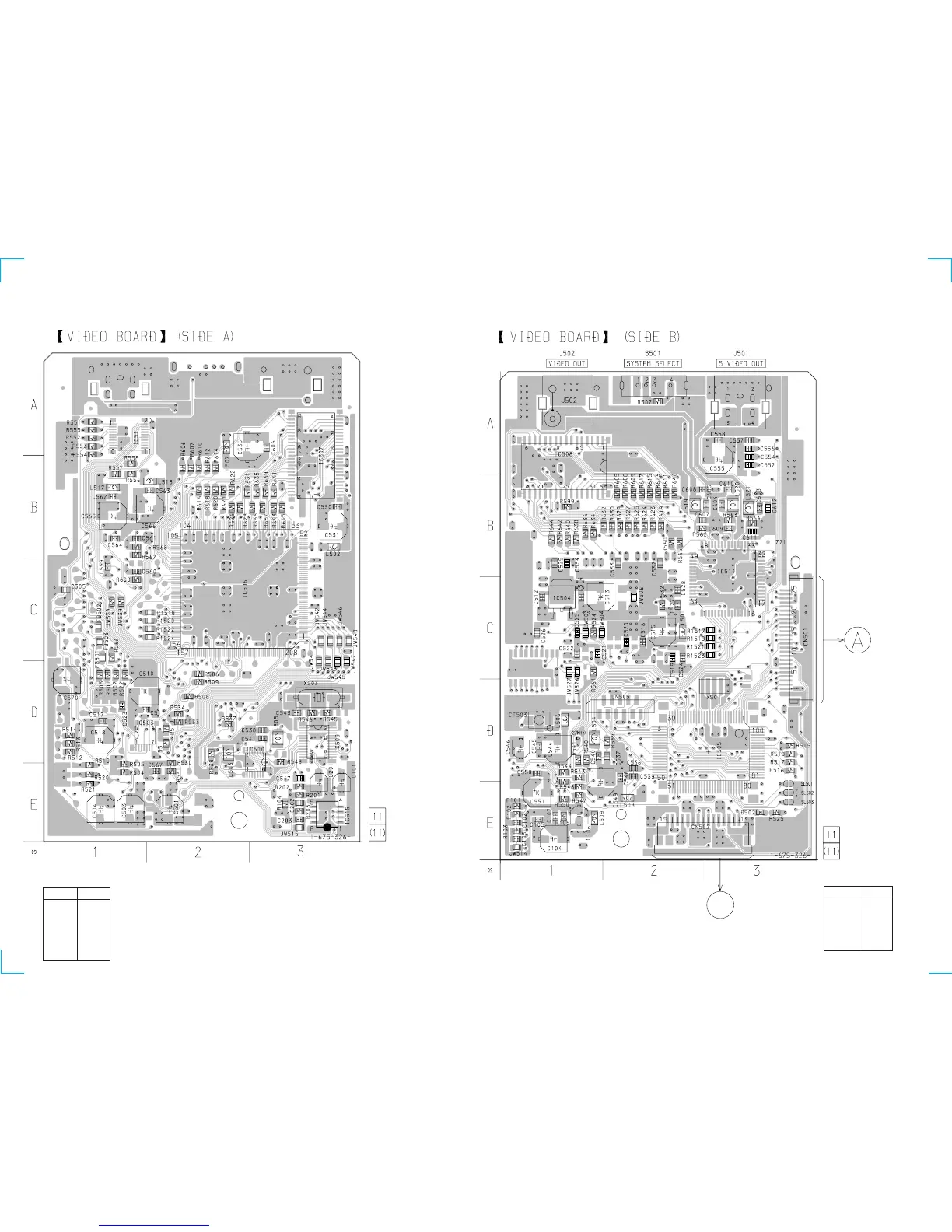

6-7. PRINTED WIRING BOARD – VIDEO SECTION –
• See page 20 for Circuit Boards Location.
(Page 28)
BD
BOARD
C
(Page 39)
MAIN
BOARD
IC503 D-1
IC506 C-2
IC507 B-3
IC509 D-3
IC510 E-3
IC511 A-1
IC515 E-3
Ref. No. Location
• Semiconductor
Location
D502 E-3
IC504 C-1
IC505 D-3
IC508 A-1
IC514 C-3
Ref. No. Location
• Semiconductor
Location
