10
HCD-XGR80

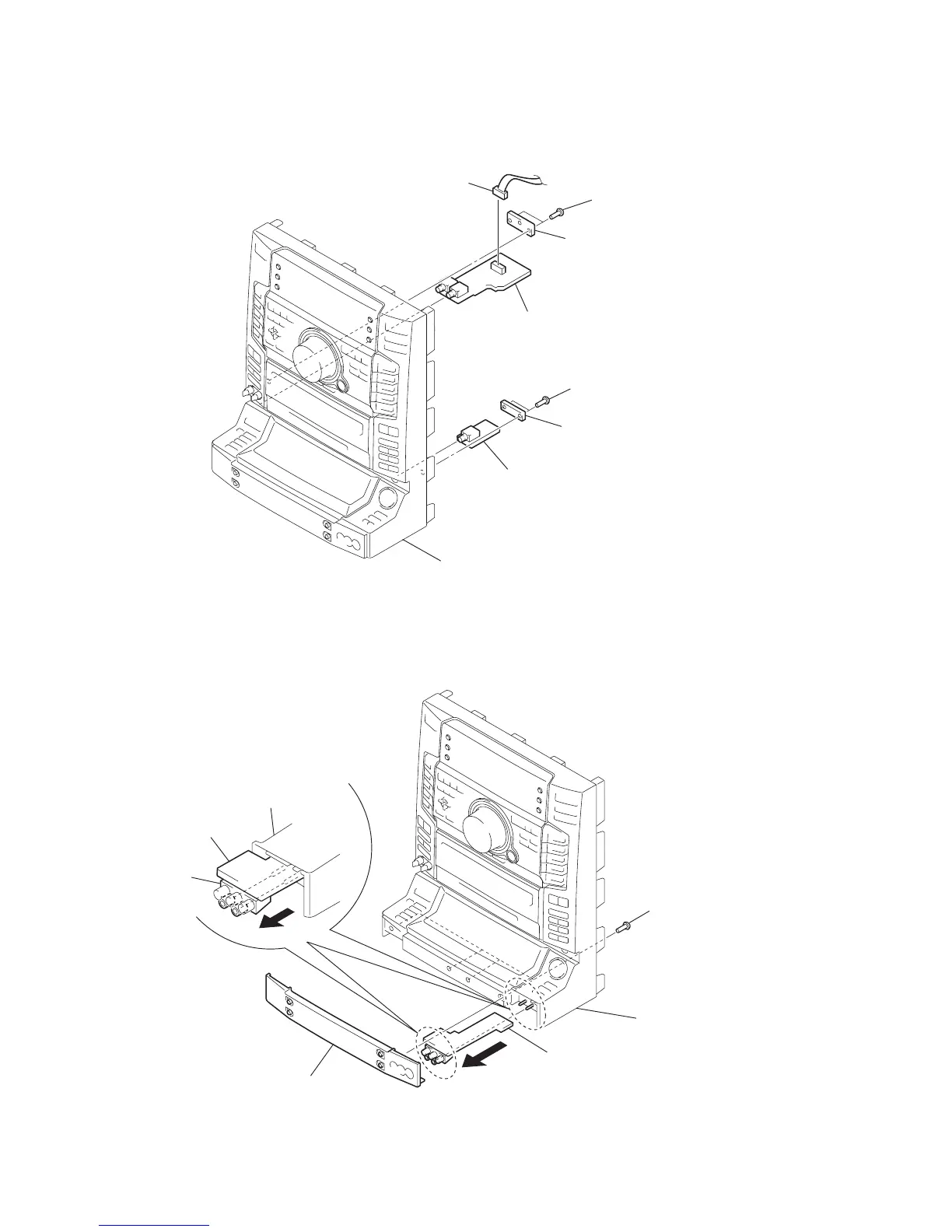

2-6. MIC/GUITAR BOARD, HEADPHONE BOARD
1 Connector
(CN812)
2 Two screws
(BVTP 2.6 X 8)
4 MIC/GUITAR board
7 HEADPHONE board
5 Two screws
(BVTP 2.6 X 8)
3 MIC bracket
6 HEADPHONE bracke
t
Front panel
2-7. FRONT INPUT BOARD
2 Bumper (Panel)
Front panel
FRONT INPUT board
J804
4 FRONT INPUT board
1 Four screws
(BVTP 2.6 X 8
)
3
Front panel
