Sony HCD-XGR80 - Page 11

11
HCD-XGR80

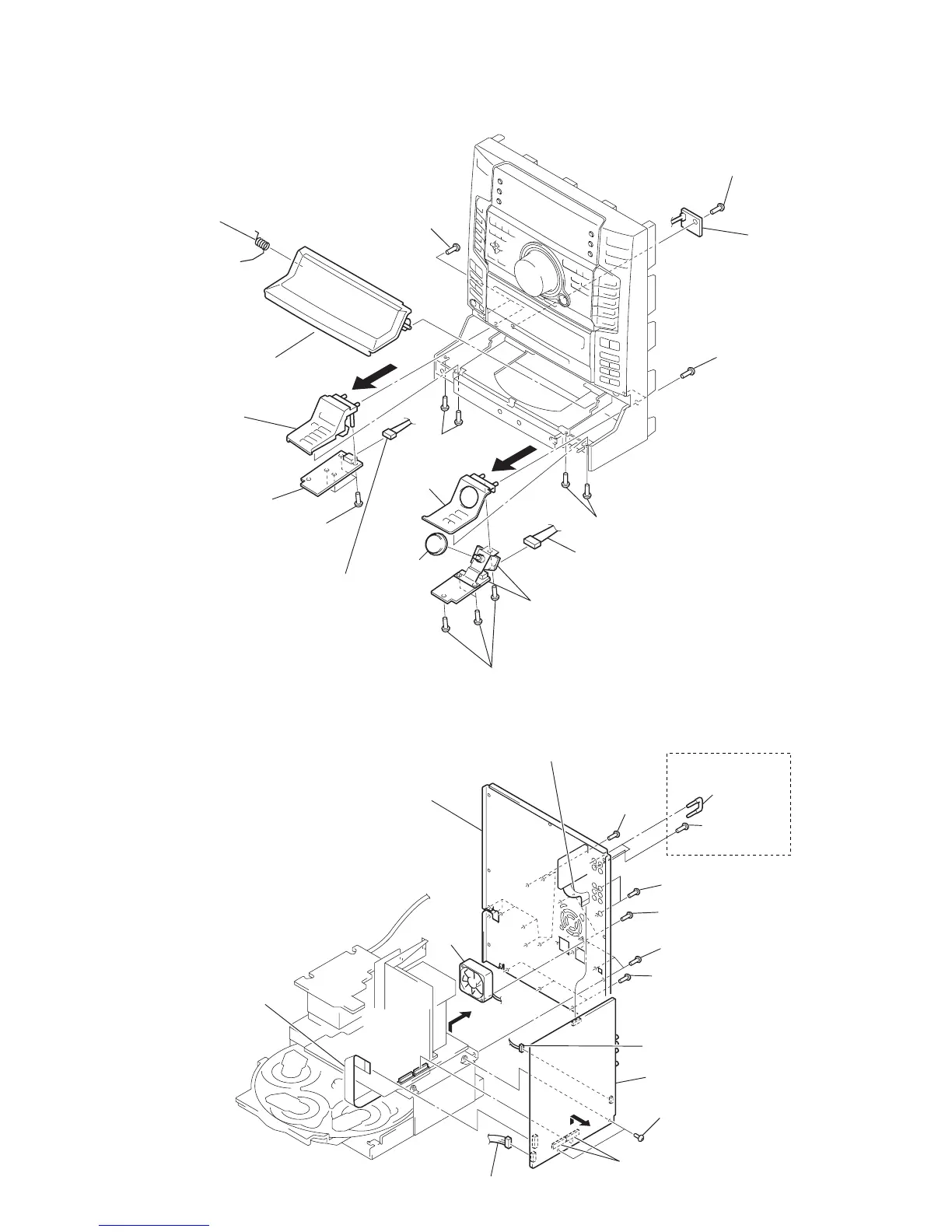

2-9. BACK PANEL, DC FAN, MAIN BOARD
2-8. D-SW BOARD, CD-L BOARD, LID (CD) ASSY, CD-R BOARD
5 Two screws
(BVTP 2.6 X 8)
7 Four screws
(BVTP 2.6 X 8)
qj Four screws
(BVTP 2.6 X 8)
qk CD-Rboard
4 Two screws
(BVTP 2.6 X 8)
qg Two screws
(BVTP 2.6 X 8)
qf Two screws
(BVTP 2.6 X 8)
2 D-SW board
1 Screw (BVTP 2.6 X8)
0 Spring (CD)
3 Connector
(CN704)
qd Knob
(CD)
qa Lid (CD) assy
9 Sub panel (CD-L) assy
8 CD-L board
6
ql Sub panel
(CD-R) assy
qs Connector (CN703)
qh
qs DC FAN
(M901)
1 Flat type wire (CN441)
9 Back panel
2 Jumper plug
4 Eight screws
(BVTP 3 X 8)
7 Four screws
(BVTP 3 X 8)
6 Three screws
(BVTP 3 X 8)
qg Two screws
(BVTP 3 X 8)
qh Two connectors
(CN901, 902)
5 Two screws
(BVTP 3 X 8)
qa Two screws
(BVTP 3 X 8)
3 Screw
(BVTP 3 X 8)
0 Connector (CN961)
MX model
qf Connector (CN441)
qd Flat type wire
(CN401)
qj MAIN board
8
