137
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
(Please review the Sony Electronics Service Information website for any additional service information.)

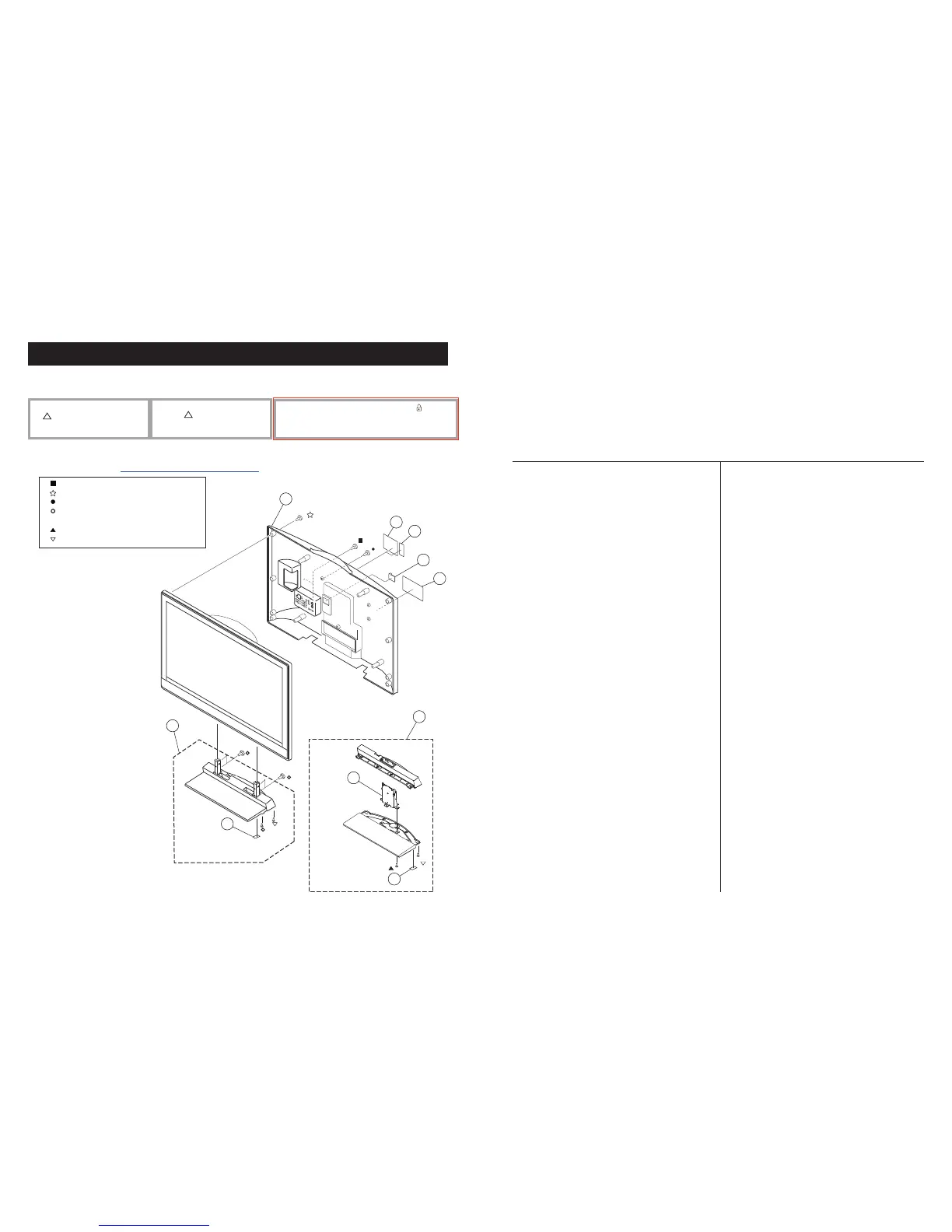

SECTION 4: EXPLODED VIEWS
4-1. REAR COVER AND STAND ASSEMBLY
6
1
2
5
3
4
6
7
8
7
KDL-40S3000/46S3000
KDL-26S3000/32S3000
1 3-100-157-01 COVER, REAR (26)
(KDL-26S3000 ONLY)
1 3-097-972-01 COVER, REAR (32)
(KDL-32S3000 ONLY)
1 X-2179-398-1 COVER ASSEMBLY, REAR (40)
(KDL-40S3000 ONLY)
1 3-098-013-01 COVER, REAR (46)
(KDL-46S3000 ONLY)
1 3-098-010-01 COVER, REAR (46)
(KDL-46S3000 ONLY)
2 3-215-160-01 LABEL, REAR TERMINAL
3 3-217-797-01 LABEL, HDMI
4 3-196-465-01 COVER, ECS
* 5 3-215-346-01 LABEL, INFORMATION
(KDL-26S3000 ONLY)
* 5 3-215-345-01 LABEL, INFORMATION
(KDL-32S3000 ONLY)
* 5 3-197-045-01 LABEL, INFORMATION
(KDL-40S3000 ONLY)
* 5 3-215-344-11 LABEL, INFORMATION
(KDL-46S3000 ONLY)
* 5 3-215-344-01 LABEL, INFORMATION
(KDL-46S3000 ONLY)
6 A-1259-944-A STAND (M_WS) ASSEMBLY [7-8]
(KDL-26S3000/32S3000 ONLY)
6 A-1253-777-A STAND (ML_WS) ASSEMBLY [7]
(KDL-40S3000 ONLY)
6 A-1253-776-A STAND (L_WS) ASSEMBLY [7]
(KDL-46S3000 ONLY)
7 3-213-762-01 FOOT (15X30)
8 3-106-486-01 NECK (M)
(KDL-26S3000/32S3000 ONLY)
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
2-580-640-01 SCREW, +BVTP2 4X16
2-580-608-01 SCREW, +PSW M5X16
2-580-607-01 SCREW, +PSW M5X12
(KDL-40S3000/46S3000 ONLY)
2-580-606-01 SCREW, +PSW M5X8
2-580-644-01 SCREW, +KTP2 3X8
To Next Page
