16
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000

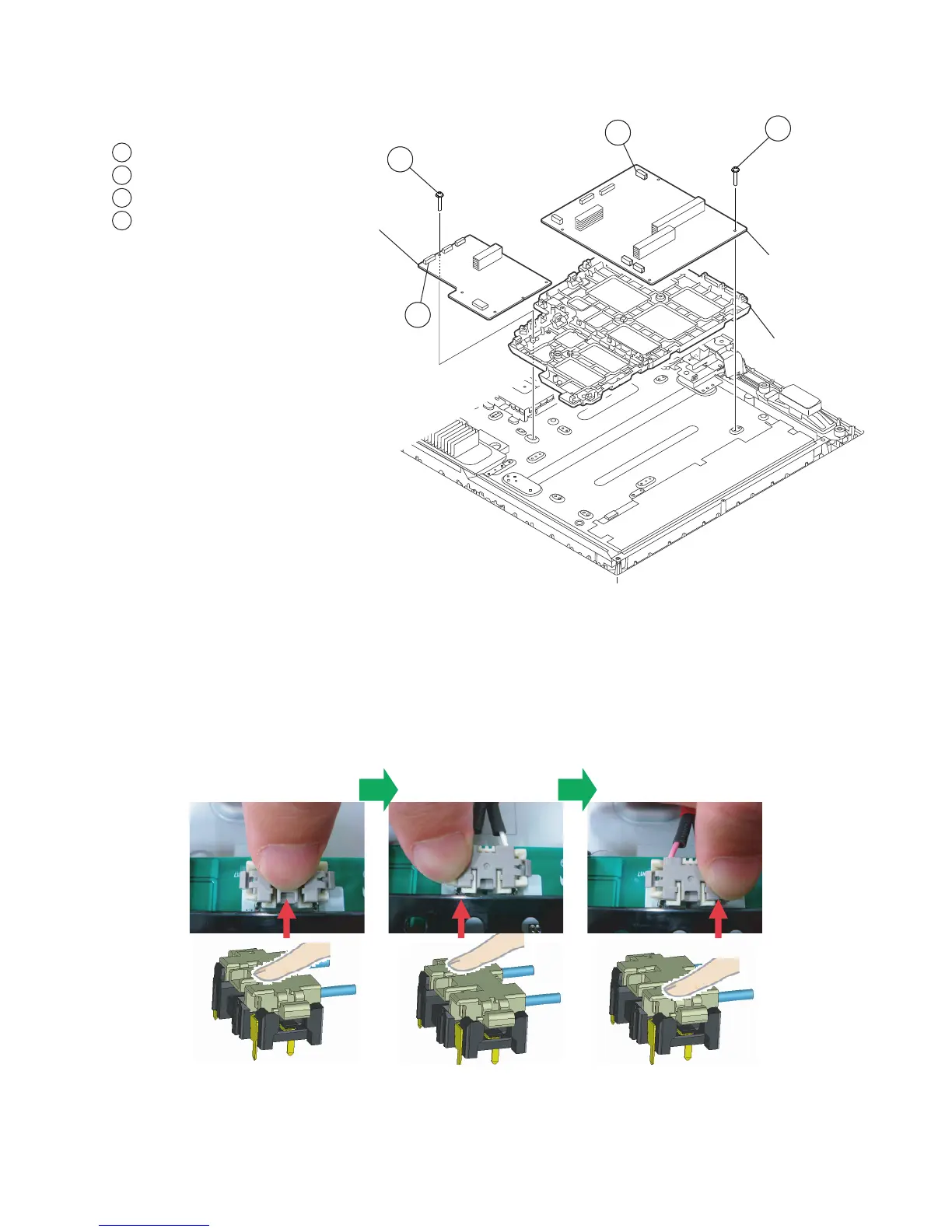

1-9-1. REPLACING THE INVERTER CONNECTOR ASSEMBLY (KDL-40S3000/46S3000 ONLY)
1
After inserting the connector
into the board, push the
middle section of the inverter
connector to confirm it
is securely connected.
Push the right section of
the inverter connector and
confirm it is securely
connected.
Push the left section of
the inverter connector and
confirm it is securely
connected.
23
Use the following procedure to confirm that the Inverter connector is securely attached
to the board.
1-9. G3 BOARD (POWER UNIT) AND D1 BOARD REMOVAL
(KDL-40S3000/46S3000 ONLY)
1
Disconnect 6 connectors
2
Remove 4 screws, +PSW 3SG
3
Disconnect 4 connectors
4
Remove 4 screws, +PSW 3SG
4
1
3
2
D1 Board
G3 Board
G3 Bracket
To Next Page
