139
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
(Please review the Sony Electronics Service Information website for any additional service information.)
2-580-640-01 SCREW, +BVTP2 4X16
(KDL-40S3000/46S3000 ONLY)
2-580-629-01 SCREW, +BVST 3X8
2-580-591-01 SCREW, +PSW M3X5
2-580-608-01 SCREW, +PSW M5X16
2-674-965-31 SCREW, +PSW 3SG
(KDL-26S3000/32S3000 ONLY)
4-635-966-01 SCREW (HEX)

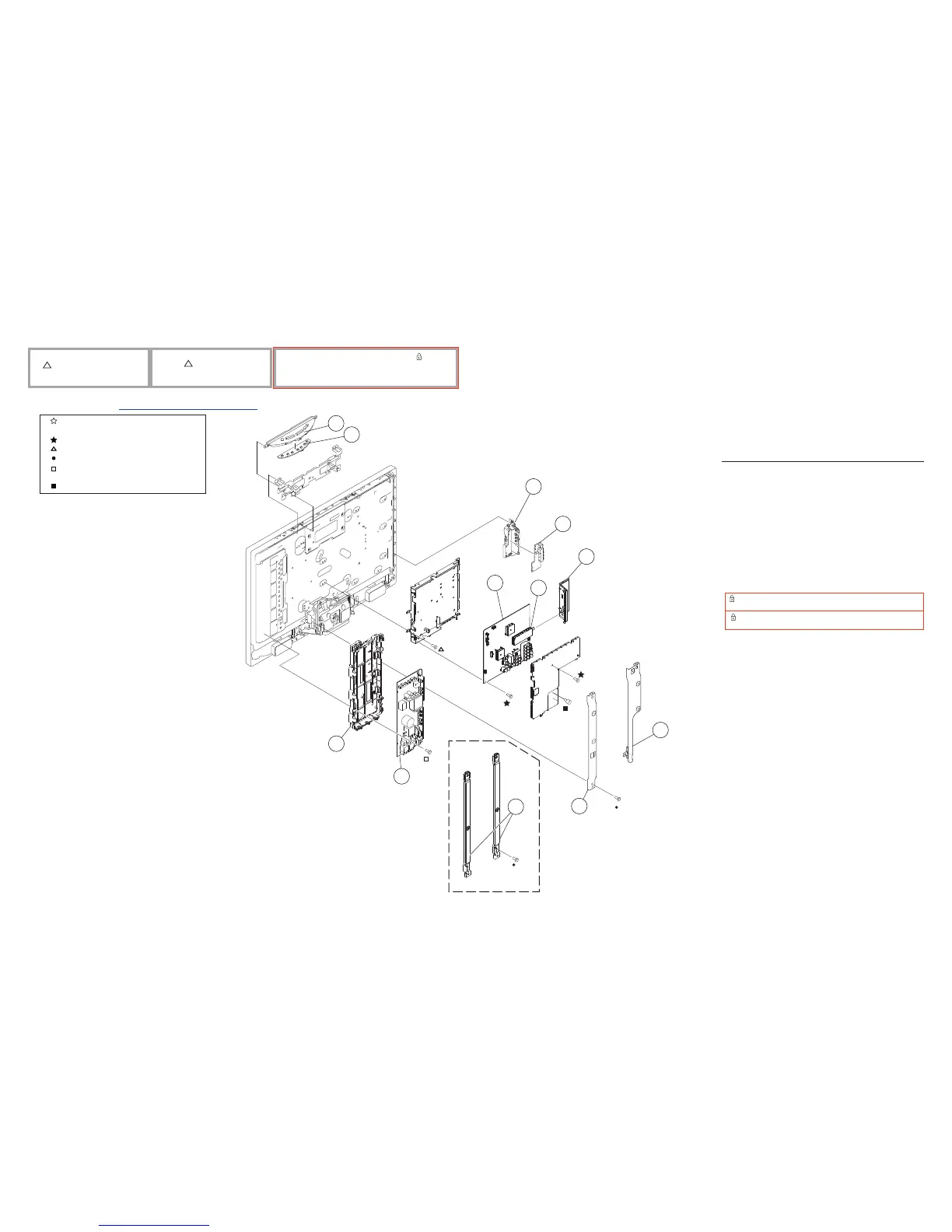

4-3. CHASSIS (KDL-26S3000/32S3000 ONLY)
101 X-2176-664-1 BUTTON, MULTI ASSEMBLY
(KDL-26S3000/32S3000 ONLY)
102 A-1220-318-A H1 BOARD, MOUNTED
(KDL-26S3000/32S3000 ONLY)
103 3-098-453-02 SIDE, TERMINAL(AU)
(KDL-26S3000/32S3000 ONLY)
104 A-1220-504-C U1 BOARD, MOUNTED
(KDL-26S3000/32S3000 ONLY)
105 3-094-417-02 HOLDER, SIDE JACK(S)
(KDL-26S3000 ONLY)
105 3-106-473-01 HOLDER, SIDE JACK(M)
(KDL-32S3000 ONLY)
106 8-597-611-00 TUNER, FSS BTF-CA411Z
107 A-1268-869-A BU1 BOARD, MOUNTED (SVC)
(KDL-26S3000 ONLY)
107 A-1257-244-A BU1 BOARD, MOUNTED (SVC)
(KDL-32S3000 ONLY)
* 108 X-2177-262-1 VESA ARM (26) L ASSEMBLY
(KDL-26S3000 ONLY)
* 109 X-2177-263-1 VESA ARM (26) R ASSEMBLY
(KDL-26S3000 ONLY)
110 X-2177-549-1 VESA ARM(32) ASSEMBLY
(KDL-32S3000 ONLY)
111 1-474-056-11 G1D BOARD, MOUNTED (POWER UNIT)
(KDL-26S3000 ONLY)
This board is manufactured by a 3rd party.
Component level repair information is not available.
111 1-474-052-11 G1H BOARD, MOUNTED (POWER UNIT)
(KDL-32S3000 ONLY)
This board is manufactured by a 3rd party.
Component level repair information is not available.
* 112 3-106-471-01 BRACKET, G1
(KDL-26S3000/32S3000 ONLY)
105
101
102
103
104
107
106
110
108
109
111
112
KDL-32S3000
