141
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
(Please review the Sony Electronics Service Information website for any additional service information.)
201
202
203
204
205
206
207
208
209
201 1-834-155-11 HARNESS WITH CONNECTOR (LVDS)
(KDL-26S3000 ONLY)
201 1-834-157-11 HARNESS WITH CONNECTOR (LVDS)
(KDL-32S3000 ONLY)
202 1-910-037-09 CONN ASSEMBLY, 20P
(KDL-26S3000 ONLY)
202 1-910-035-48 CONN ASSEMBLY, 20P
(KDL-32S3000 ONLY)
203 1-910-035-53 WIRE ASSEMBLY, FASTON TERMINAL
(KDL-26S3000/32S3000 ONLY)
204 1-910-037-12 CONNECTOR ASSEMBLY, 4P SPEAKER
(KDL-26S3000 ONLY)
204 1-910-035-51 CONNECTOR ASSEMBLY, 4P SP
(KDL-32S3000 ONLY)
205 1-910-037-13 CONNECTOR ASSEMBLY, 20P
(KDL-26S3000 ONLY)
205 1-910-035-52 CONNECTOR ASSEMBLY, 20P
(KDL-32S3000 ONLY)

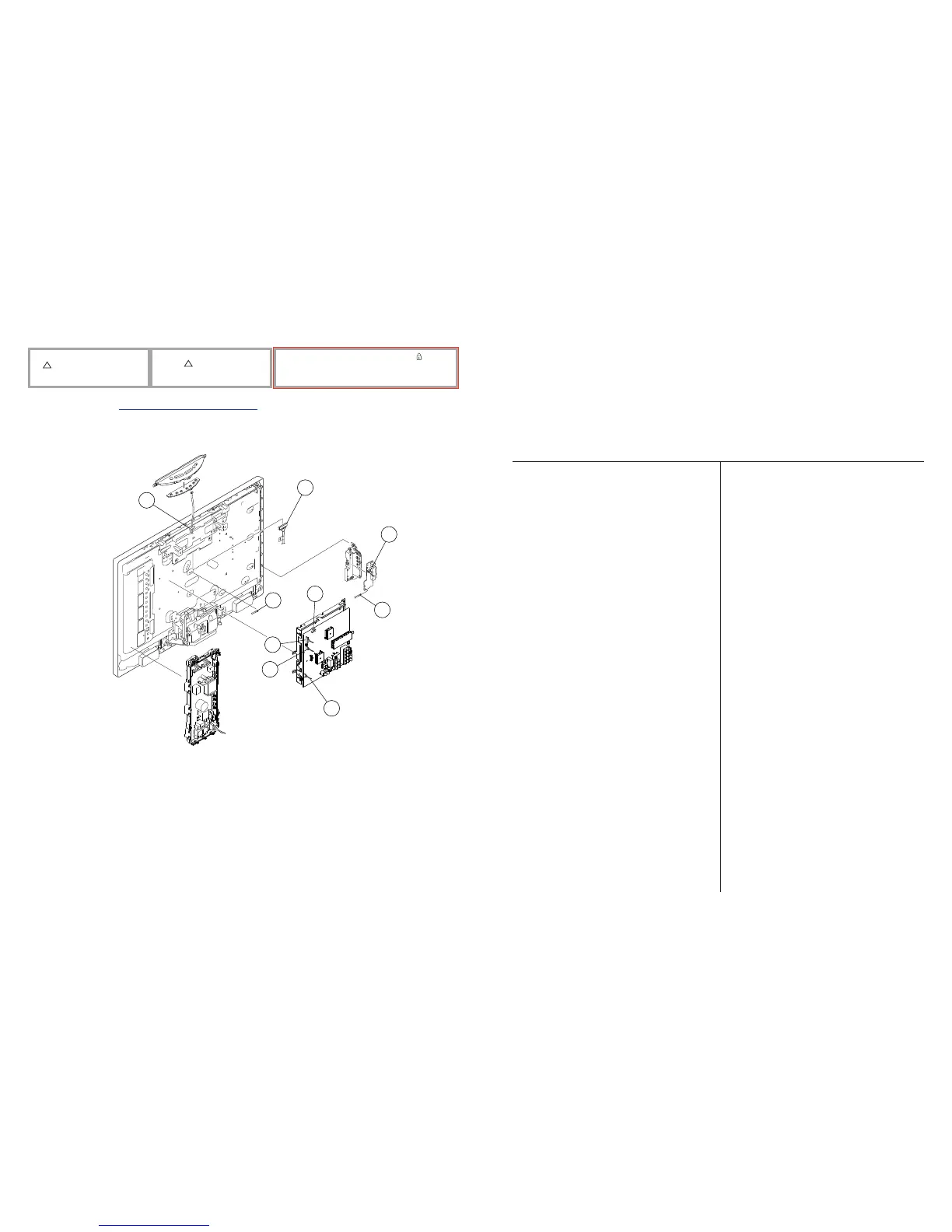

4-5. CONNECTORS (KDL-26S3000/32S3000 ONLY)
206 1-910-037-11 CONNECTOR ASSEMBLY, 13P
(KDL-26S3000 ONLY)
206 1-910-035-50 CONNECTOR ASSEMBLY, 13P
(KDL-32S3000 ONLY)
207 1-910-037-10 CONNECTOR ASSEMBLY, 14P
(KDL-26S3000 ONLY)
207 1-910-035-49 CONNECTOR ASSEMBLY, 14P
(KDL-32S3000 ONLY)
208 1-910-035-47 WIRE ASSEMBLY, FASTON TERMINAL
(KDL-32S3000 ONLY)
209 2-893-754-01 TAPE (LCD)
(KDL-26S3000 ONLY)
209 2-688-062-01 TAPE (LCD)
(KDL-32S3000 ONLY)
To Next Page
