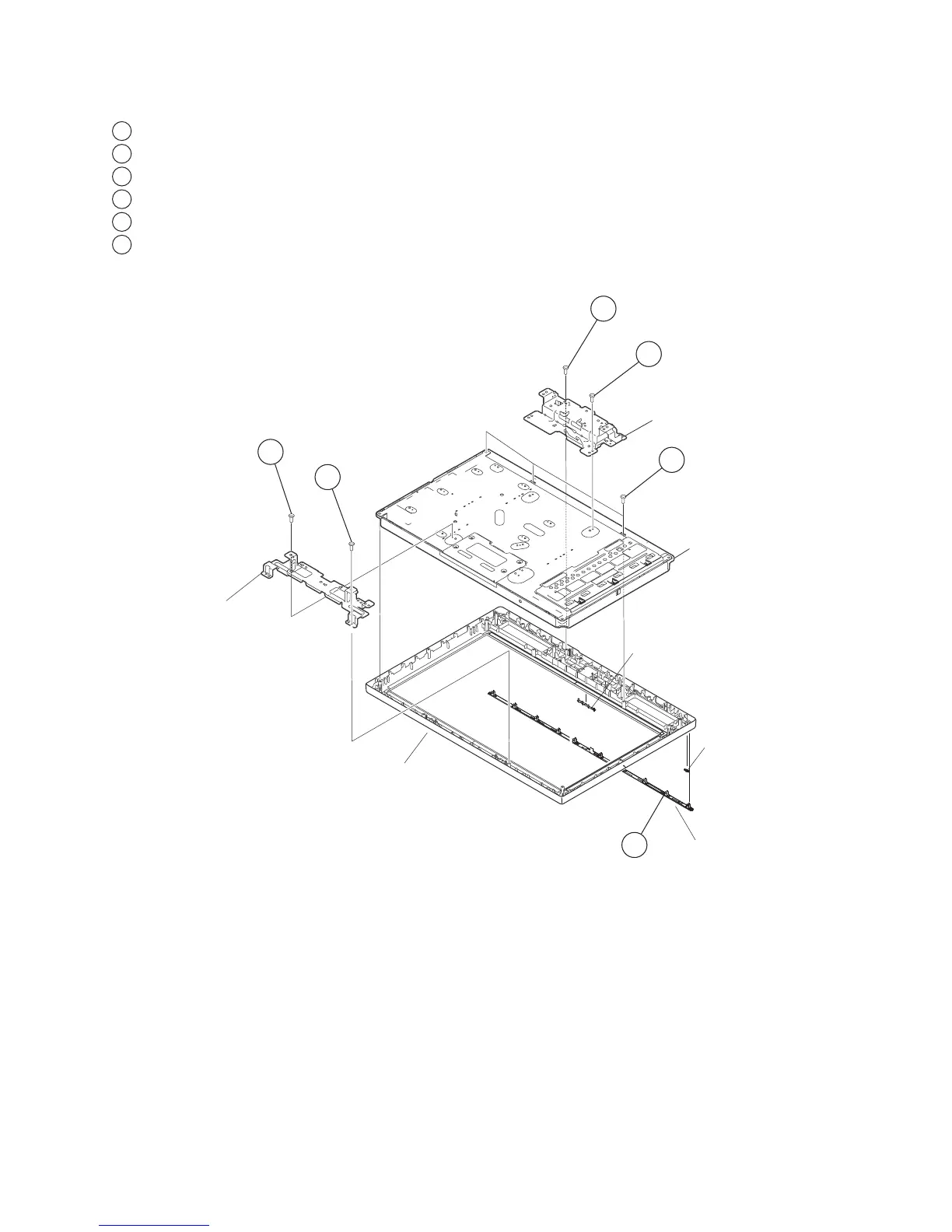

1-13. LCD PANEL, LED AND GUIDE LIGHT REMOVAL (KDL-26S3000/32S3000 ONLY)
1
Remove 2 screws, +PSW M4X8
2
Remove 2 screws, +BVTP2 4X16
3
Remove 2 screws, +BVTP2 4X16
4
Remove 2 screws, +PSW M4X8
5
Remove 3 screws, +BVTP2 4X16
6
Remove ornamental panel and slide out LED Guide and Light Guide
Bottom Bracket
LCD Panel
LED Guide
Guide Light
Ornamental Panel
Bezel
Top Bracket
5
3
4
1
2
6
