143
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
(Please review the Sony Electronics Service Information website for any additional service information.)
301
302
303
303
304
305
306
305
304
KDL-26S3000/32S3000
KDL-40S3000/46S3000
301 X-2176-950-1 BAFFLE (40J) ASSEMBLY
(KDL-40S3000 ONLY)
301 X-2176-951-1 BAFFLE (46J) ASSEMBLY
(KDL-46S3000 ONLY)
302 1-826-649-11 LOUD SPEAKER (4.2X15CM)
(KDL-26S3000 ONLY)
302 1-826-648-11 LOUD SPEAKER (4.2X15CM)
(KDL-32S3000 ONLY)
302 1-826-647-11 LOUD SPEAKER (5.5X15.5CM)
(KDL-40S3000 ONLY)
302 1-826-646-11 LOUD SPEAKER (13X7CM)
(KDL-46S3000 ONLY)
2-580-640-01 SCREW, +BVTP2 4X16
2-580-600-01 SCREW, +PSW M4X8
2-580-607-01 SCREW, +PSW M5X12
(KDL-40S3000/46S3000 ONLY)

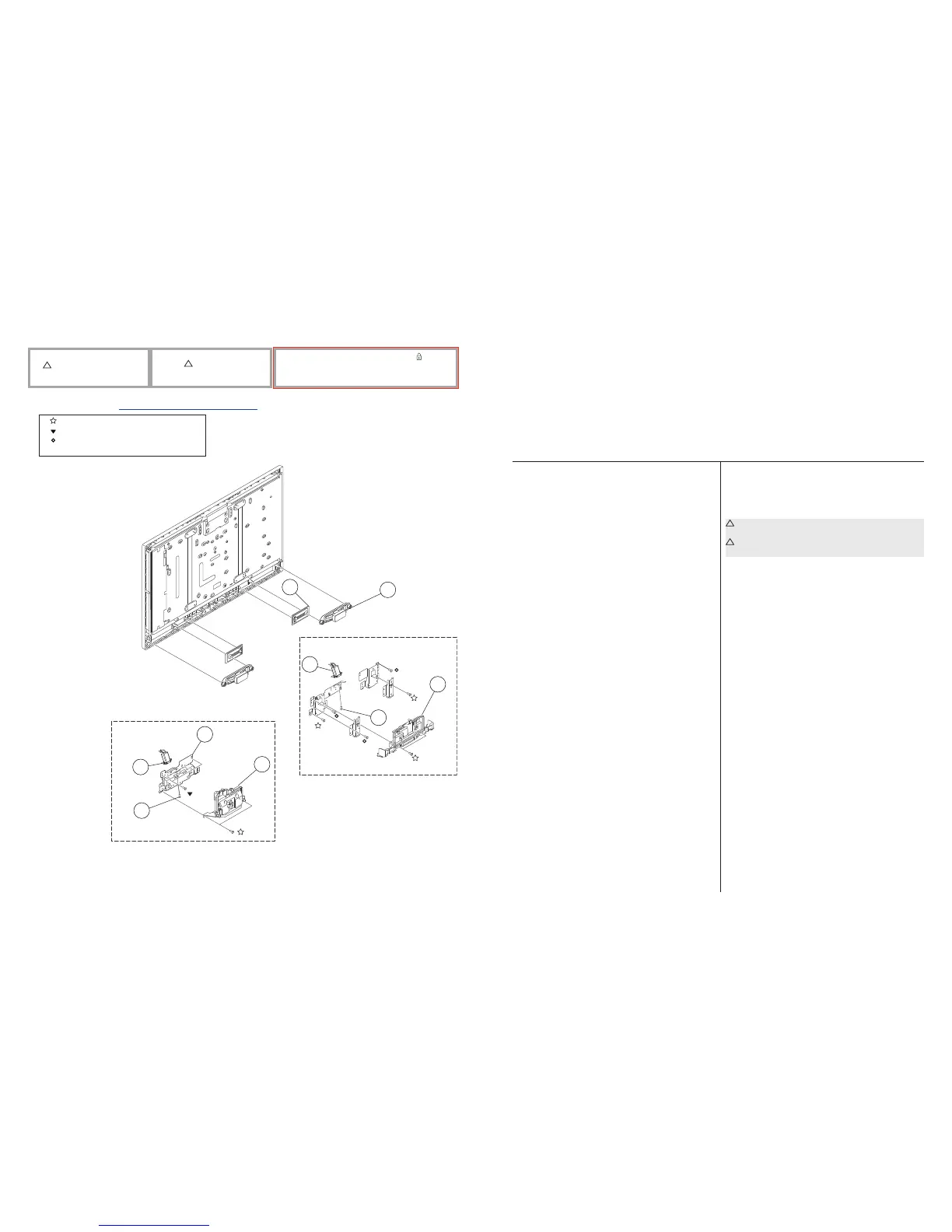

4-7. SPEAKERS
303 3-100-284-01 COVER, UNDER (M)
(KDL-26S3000/32S3000 ONLY)
303 X-2179-456-1 COVER ASSEMBLY, UNDER (L)
(KDL-40S3000/46S3000 ONLY)
304 2-596-649-01 +KTT 3X10 (S TYPE)
(KDL-32S3000/40S3000/46S3000 ONLY)
!
305 1-821-380-11 INLET, AC (WITH NOISE FILTER)
(KDL-26S3000 ONLY)
!
305 1-819-729-14 INLET, AC (WITH NOISE FILTER)
(KDL-32S3000/40S3000/46S3000 ONLY)
* 306 X-2177-438-2 LCD BRACKET BOTTOM ASSEMBLY (26/32)
(KDL-26S3000/32S3000 ONLY)
To Next Page
