21
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
Inverter Cover
1
2
Plastic Strip
holding
Lamp Socket
Plastic Strip
holding
Lamp Socket
Inverter Board
DO NOT
REMOVE
BACKLIGHT
SCREWS
SHIELD REMOVAL
INVERTER BOARD REMOVAL
WARNING
NEVER REMOVE THE
SCREWS SECURING THE
PLASTIC STRIP HOLDING
THE LAMP SOCKETS
DAMAGE TO THE
BACKLIGHT TUBES WILL
Only remove the screws securing the inverter
cover which may be metal or plastic. The
remaining plastic strip contains sockets for the
fluorescent backlights and should never be
loosened. The backlights will pop out of the
sockets and/or break the backlight requiring a
LCD panel replacement. The example shown
is a 32” model but applies to all models.
REMOVE SCREWS
SECURING
SHIELD
REMOVE
CONNECTOR AND
PULL BOARD TO
THE RIGHT
!
.
OCCUR!
BACKLIGHT
END VIEW
SOCKET

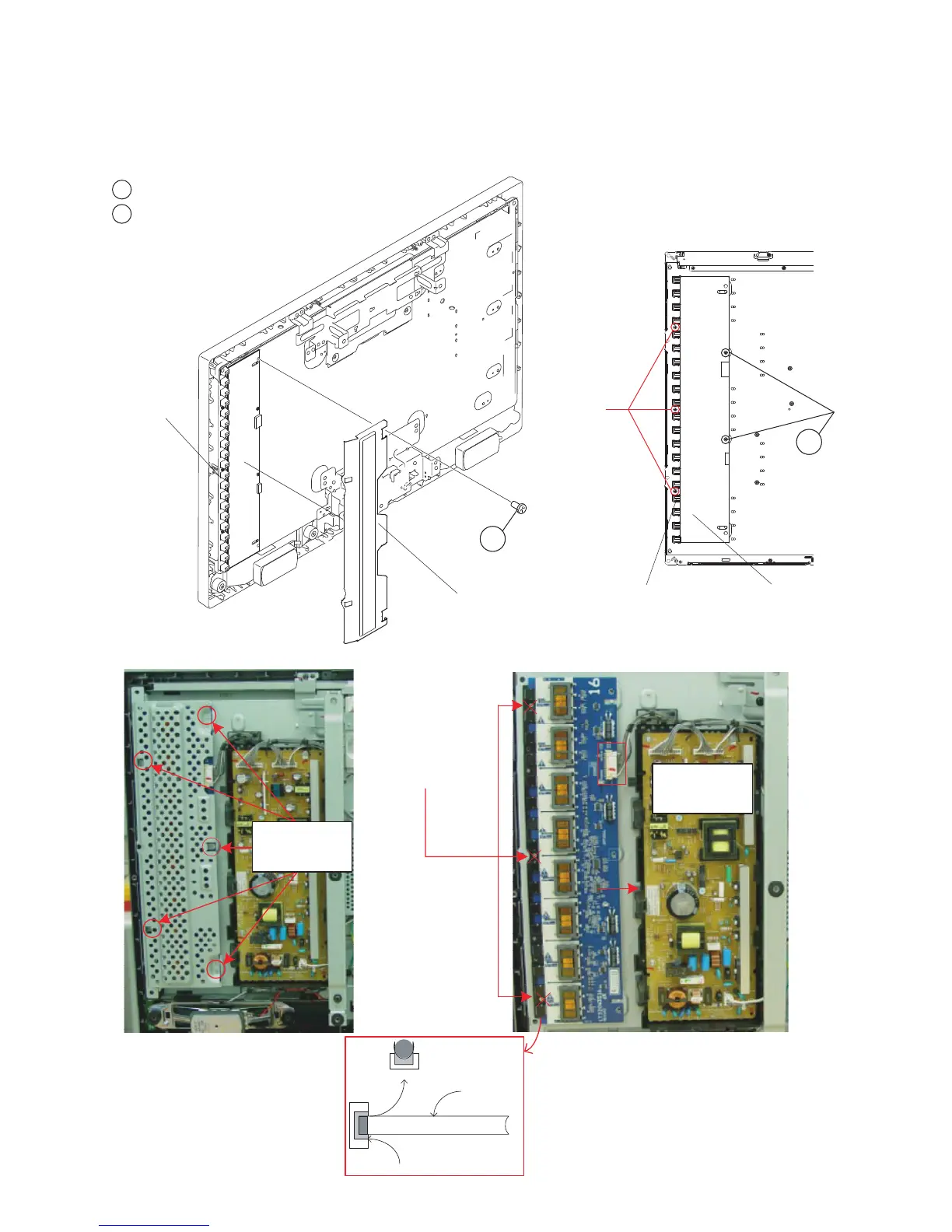

1-15. INVERTER BOARD REMOVAL
CAUTION:
Be sure to identify the inverter cover screws before proceeding. DO NOT remove the screws securing the plastic strip holding the lamp
sockets.
1
Remove screws securing the inverter cover.
2
Remove screws securing the inverter board
