KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000

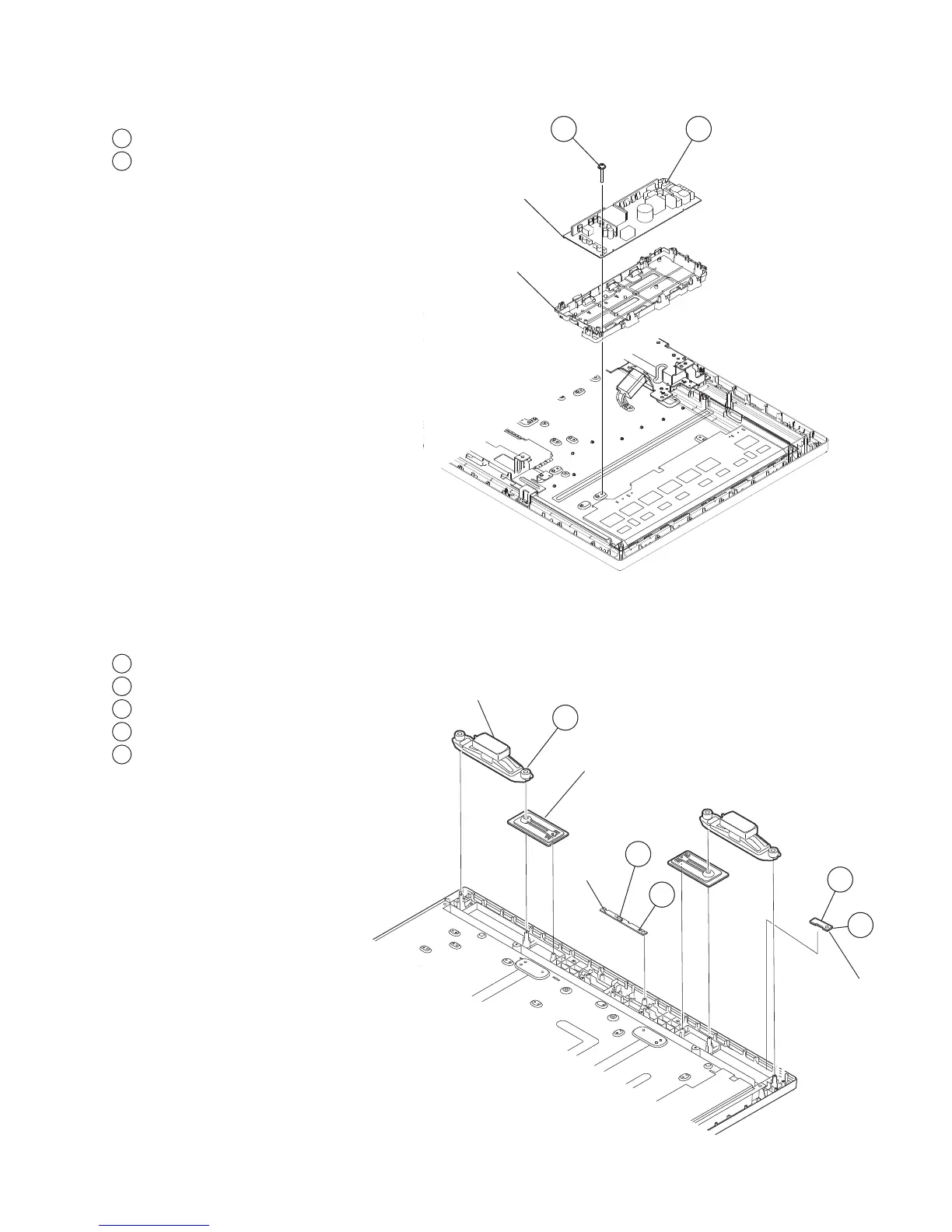

1-7. G1D/G1H BOARD (POWER UNIT) AND G1 BRACKET REMOVAL
(KDL-26S3000/32S3000 ONLY)
1
Remove 4 screws, +PSW 3SG
2
Disconnect 3 connectors
1 2
Power Unit
G1 Bracket
1-8. SPEAKER, H3 BOARD, AND H4 BOARD REMOVAL
1
Slide out Speaker and Baffl e from Bezel
2
Disconnect one connector
3
Release hooks and remove H3 Board
4
Disconnect one connector
5
Release hooks and remove H4 Board
1
2
3
5
4
Under Cover
Baffle Assembly
(KDL-32/40/46S3000 Only)
H4 Board
H3 Board
