10
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000

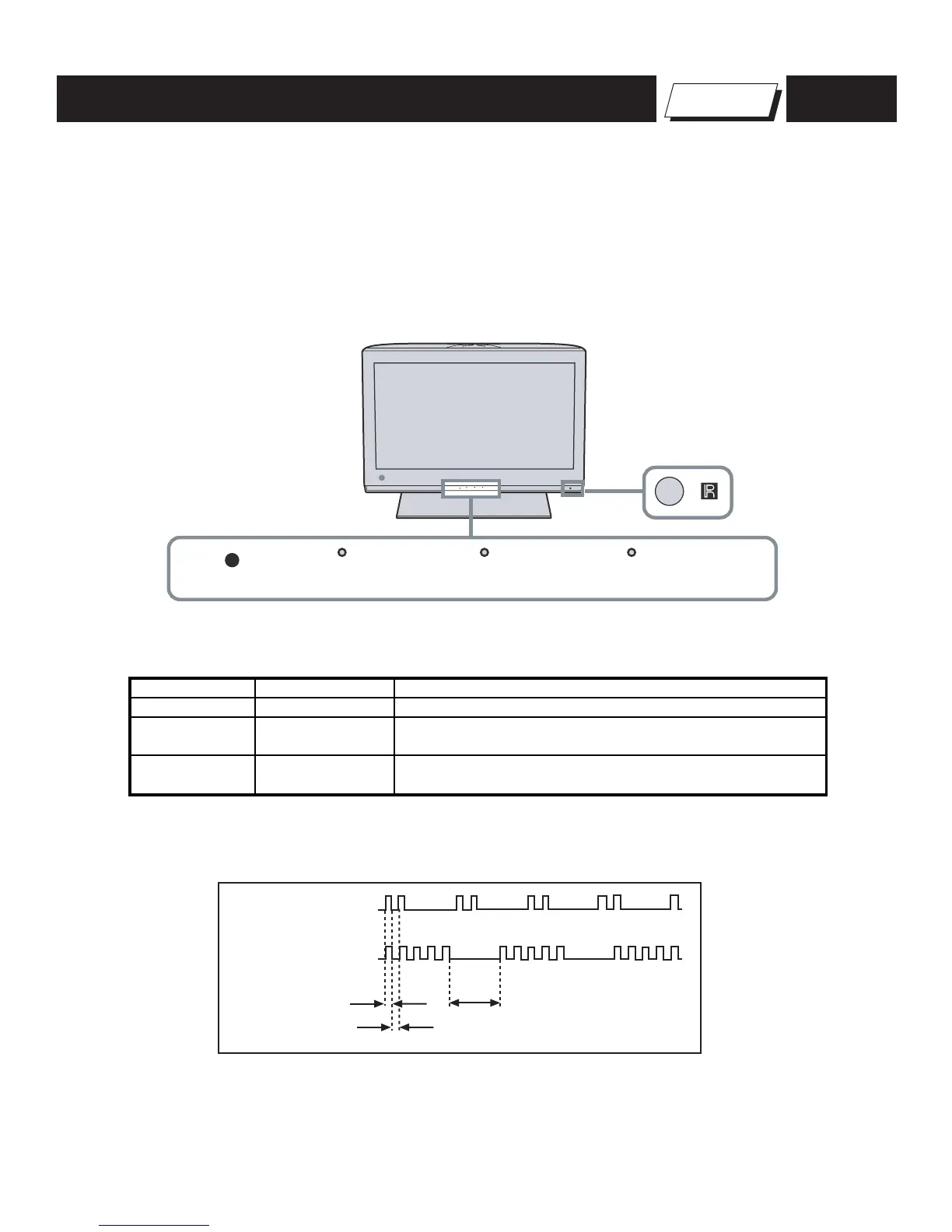

SELF-DIAGNOSTIC FUNCTION
Self Diagnosis
Supported model
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED indicator will automatically begin to fl ash. The number
of times the LED fl ashes translates to a probable source of the problem. A defi nition of the STANDBY LED fl ash indicators is listed in the instruction
manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the Remote Commander can be used to review the failure
occurrence data stored in memory to reveal past problems and how often these problems occur.
1. Diagnostic Test Indicators
When an error occurs, the STANDBY LED indicator will fl ash a set number of times to indicate the possible cause of the problem. If there is more than
one error, the indicator will identify the fi rst of the problem areas.
Control Buttons
PIC OFF/TIMER STANDBY POWER
Description of LED Indictors
LED LED Type Description
POWER LED Green LED
* Light is green when the TV set is on
* Lights is red when the TV is in PC standby mode
* Blinks red when indicating the TV may need servicing
* Li
ht is
reen when the Picture Of
feature is activated
* Light is amber when the timer is set
PIC OFF/TIMER
LED
Amber/Green LED
STANDBY LED Red LED
Display of STANDBY LED Flash Count
2 times
5 times
LED ON 0.3 sec.
LED OFF 0.3 sec.
LED OFF
3 sec.
To Next Page
