20
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000

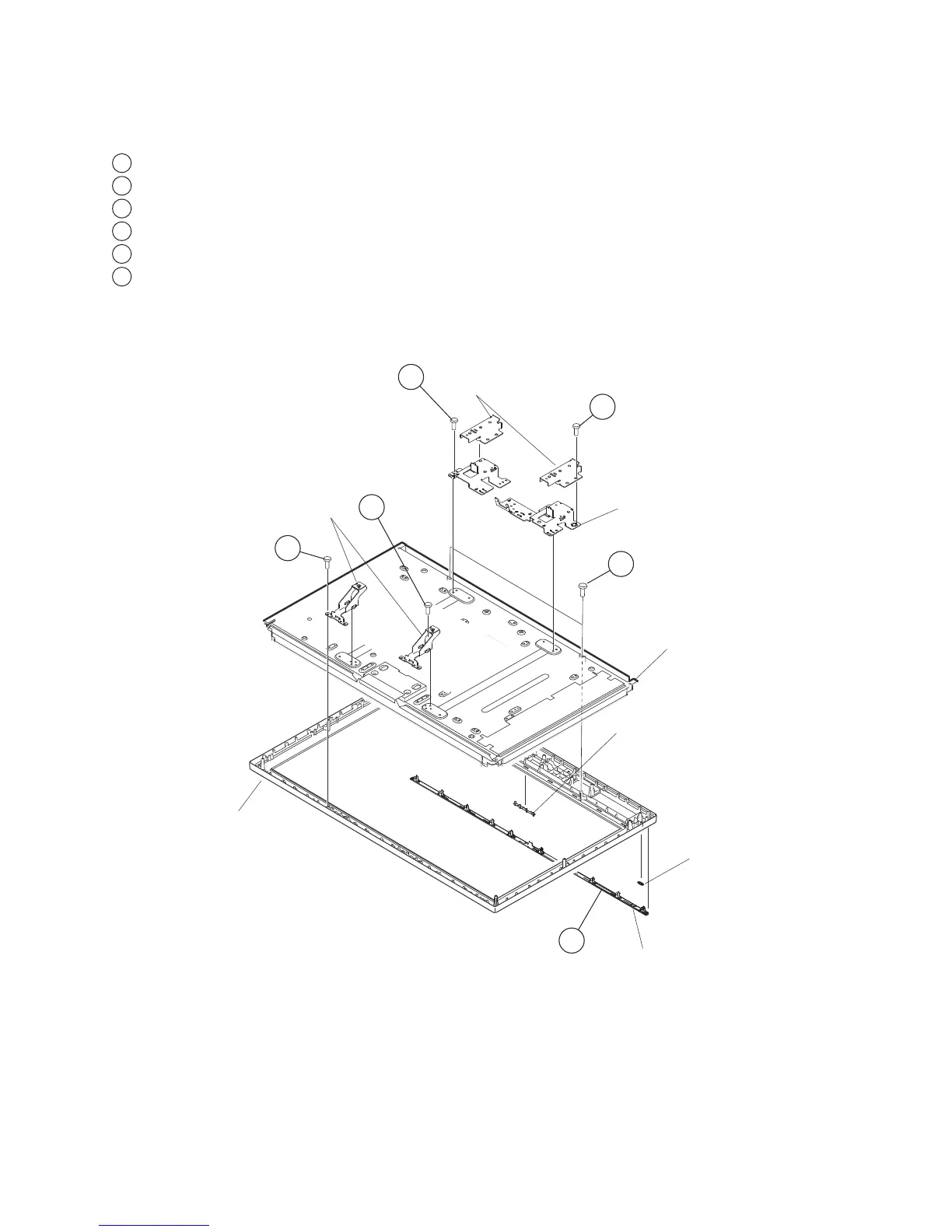

1-14. LCD PANEL, LED AND GUIDE LIGHT REMOVAL
(KDL-40S3000/46S3000 ONLY)
1
Remove 2 screws from Bezel and Top Brackets, +BVTP2 4X16
2
Remove 4 screws from Top Brackets, +PSW M5X8
3
Remove 4 screws from Bottom Brackets, + PSW M5X12
4
Remove 4 screws from Stand Holders, +PSW M5X16
5
Remove 2 screws from LCD Panel, +BVTP2 4X16
6
Remove ornamental panel and slide out LED Guide and Light Guide
Stand Holder
Bottom Bracket(L)
Bottom Bracket(R)
LCD Panel
LED Guide
Guide Light
Ornamental Panel
5
3
4
1
2
6
Bezel
Top Bracket
