14
KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000

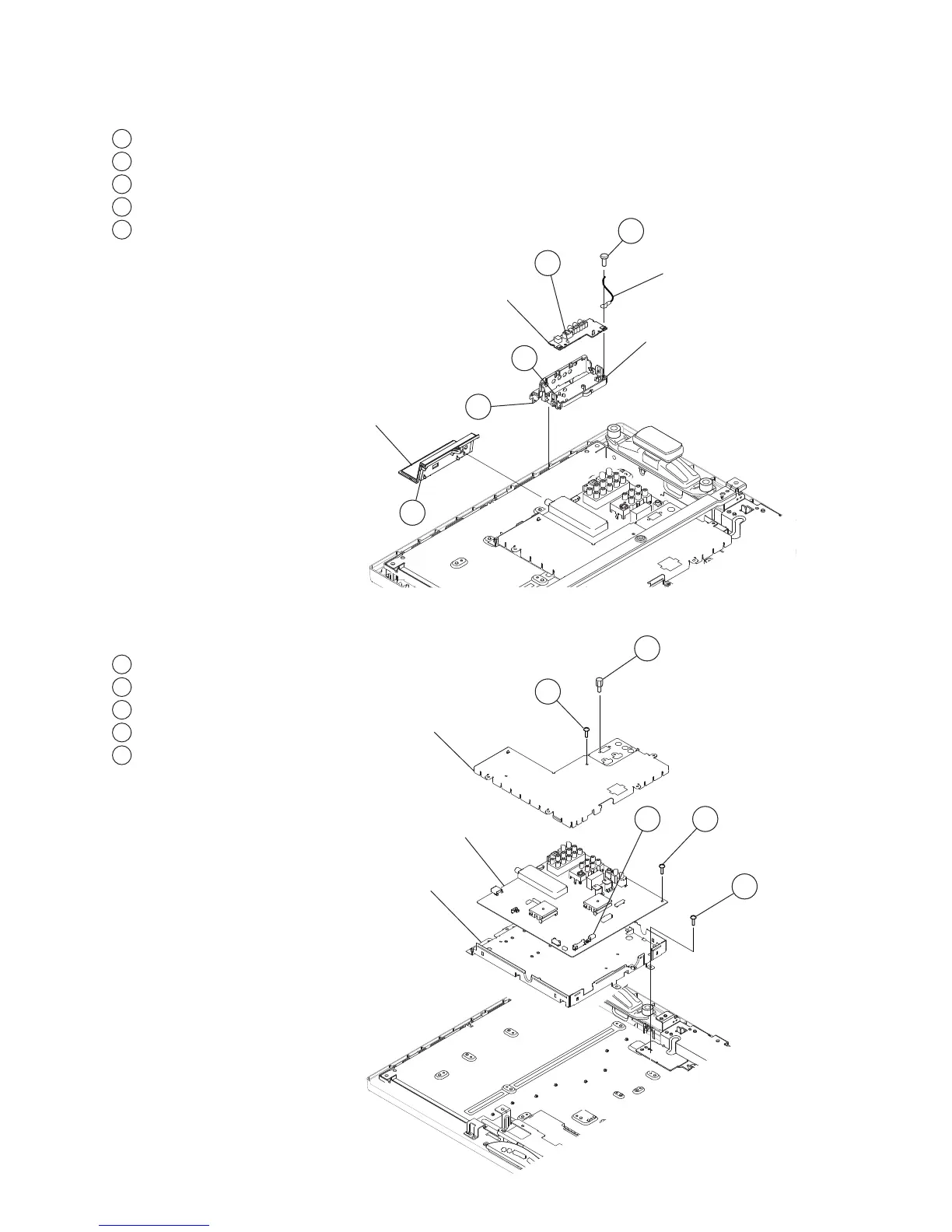

1-5. U1 BOARD, DTT SHIELD, AND JACK HOLDER REMOVAL
1-6. BU1 BOARD REMOVAL
1
Disconnect one connector
2
Remove one screw, +BVTP 3X12 TYPE2 IT-3
3
Release hooks and remove U1 Board.
4
Remove Jack holder from Bezel.
5
Release hooks to remove DTT Shield from BU1 bottom shield.
1
Remove 2 screws, +PSW M3X5
2
Remove 2 screws, HEX
3
Disconnect 5 connectors
4
Remove 7 screws, +BVST 3X8
5
Remove 5 screws, +PSW M3X5
DTT Shield
1
2
4
5
3
Side Jack Holder
Wire Assembly
(32/46S3000 Only)
U1 Board
1
2
43
5
BU1 Top Shield
BU1 Board
BU1 Bottom Shield
To Next Page
