138
KLV-26S301A/32S301A/40S301A/46S301A
KLV-26S301A/32S301A/40S301A/46S301A
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
(Please review the Sony Electronics Service Information website for any additional service information.)

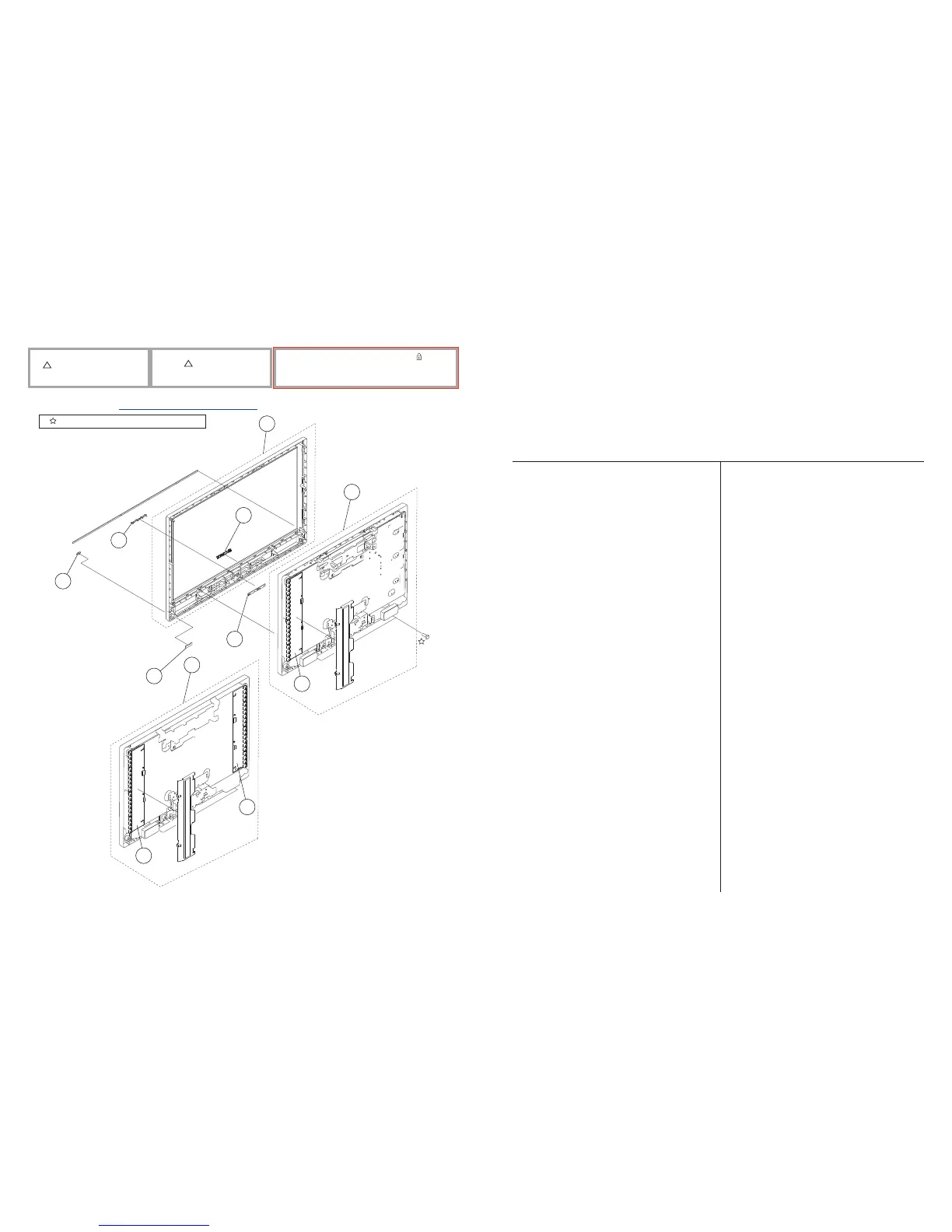

4-2. BEZEL ASSEMBLY AND LCD PANEL
57
57
54
58
55
56
53
51
52
KLV-46S301A
58
59
51 X-2178-399-1 BEZEL (26SU) ASSEMBLY [52]
(KDL-26S3000 ONLY)
51 X-2187-892-1 GREEN BEZEL ASSEMBLY (26SU-G) [52-53, 56]
(KDL-26S3000 ONLY)
51 X-2187-893-1 LT BLUE BEZEL ASSEMBLY (26SU-LI) [52-53, 56]
(KDL-26S3000 ONLY)
51 X-2187-890-1 PINK BEZEL ASSEMBLY (26SU-P) [52-53, 56]
(KDL-26S3000 ONLY)
51 X-2187-895-1 RED BEZEL ASSEMBLY (26SU-R) [52-53, 56]
(KDL-26S3000 ONLY)
51 X-2187-889-1 WHITE BEZEL ASSEMBLY (26SU-W) [52-53, 56]
(KDL-26S3000 ONLY)
51 X-2176-650-1 BEZEL (32SU) ASSEMBLY [52]
(KDL-32S3000 ONLY)
51 X-2187-899-1 GREEN BEZEL ASSY (32SU-G) [52-53, 56]
(KDL-32S3000 ONLY)
51 X-2187-900-1 LIGHT BLUE BEZEL ASSY (32SU-LI) [52-53, 56]
(KDL-32S3000 ONLY)
51 X-2187-897-1 PINK BEZEL ASSY (32SU-P) [52-53, 56]
(KDL-32S3000 ONLY)
51 X-2187-902-1 RED BEZEL ASSY (32SU-R) [52-53, 56]
(KDL-32S3000 ONLY)
51 X-2187-896-1 WHITE BEZEL ASSY (32SU-W) [52-53, 56]
(KDL-32S3000 ONLY)
51 X-2176-651-1 BEZEL (40SU) ASSEMBLY
(KDL-40S3000 ONLY)
51 X-2176-652-1 BEZEL (46SU) ASSEMBLY
(KDL-46S3000 ONLY)
52 4-103-642-21 EMBLEM, SONY NO.8
(KDL-26S3000/32S3000 ONLY)
53 3-096-948-01 GUIDE , LED (S)
54 A-1220-319-A H3 BOARD, MOUNTED
55 A-1220-320-A H4 BOARD, MOUNTED
56 3-094-434-11 GUIDE, LIGHT (S) S
(KDL-26S3000 ONLY)
56 3-097-341-11 GUIDE, LIGHT (S) L
(KDL-32S3000/40S3000/46S3000 ONLY)
2-580-640-01 SCREW, +BVTP2 4X16
57 1-802-368-12 LCD PANEL (26INCH WXGA TFT) [58]
(KDL-26S3000 ONLY)
57 1-802-380-12 LCD PANEL (32INCH WXGA TFT) [58]
(KDL-32S3000 ONLY)
57 1-802-410-11 LCD PANEL (40INCH WXGA TFT) [58]
(KDL-40S3000 ONLY)
57 1-802-409-21 LCD PANEL (46INCH WXGA TFT) [58-59]
(KDL-46S3000 ONLY)
58 1-789-780-11 (BALANCER BOARD) ETC-INVERTER MT BOARD
(KDL-26S3000 ONLY)
58 1-789-785-11 (BALANCER BOARD) ETC-INVERTER MT BOARD
(KDL-32S3000 ONLY)
58 1-789-771-11 (BALANCER BOARD) ETC-INVERTER MT BOARD
(KDL-40S3000 ONLY)
(When replacing the Inverter board for this model, refer to the instructions
for “Replacing the Inverter Connector Assembly” in the Disassembly section of
this manual.)
58 1-789-787-11 (BALANCER BOARD) ETC-INVERTER MT BOARD (LT)
(KDL-46S3000 ONLY)
(When replacing the Inverter board for this model, refer to the instructions
for “Replacing the Inverter Connector Assembly” in the Disassembly section of
this manual.)
59 1-789-788-11 (BALANCER BOARD) ETC-INVERTER MT BOARD (RT)
(KDL-46S3000 ONLY)
(When replacing the Inverter board for this model, refer to the instructions
for “Replacing the Inverter Connector Assembly” in the Disassembly section of
this manual.)
☛
☛
☛
☛
☛
☛
☛
☛
☛
☛
☛
