KDL-26S3000/32S3000/40S3000/46S3000
KDL-26S3000/32S3000/40S3000/46S3000
KDL-32S3000 ONLY

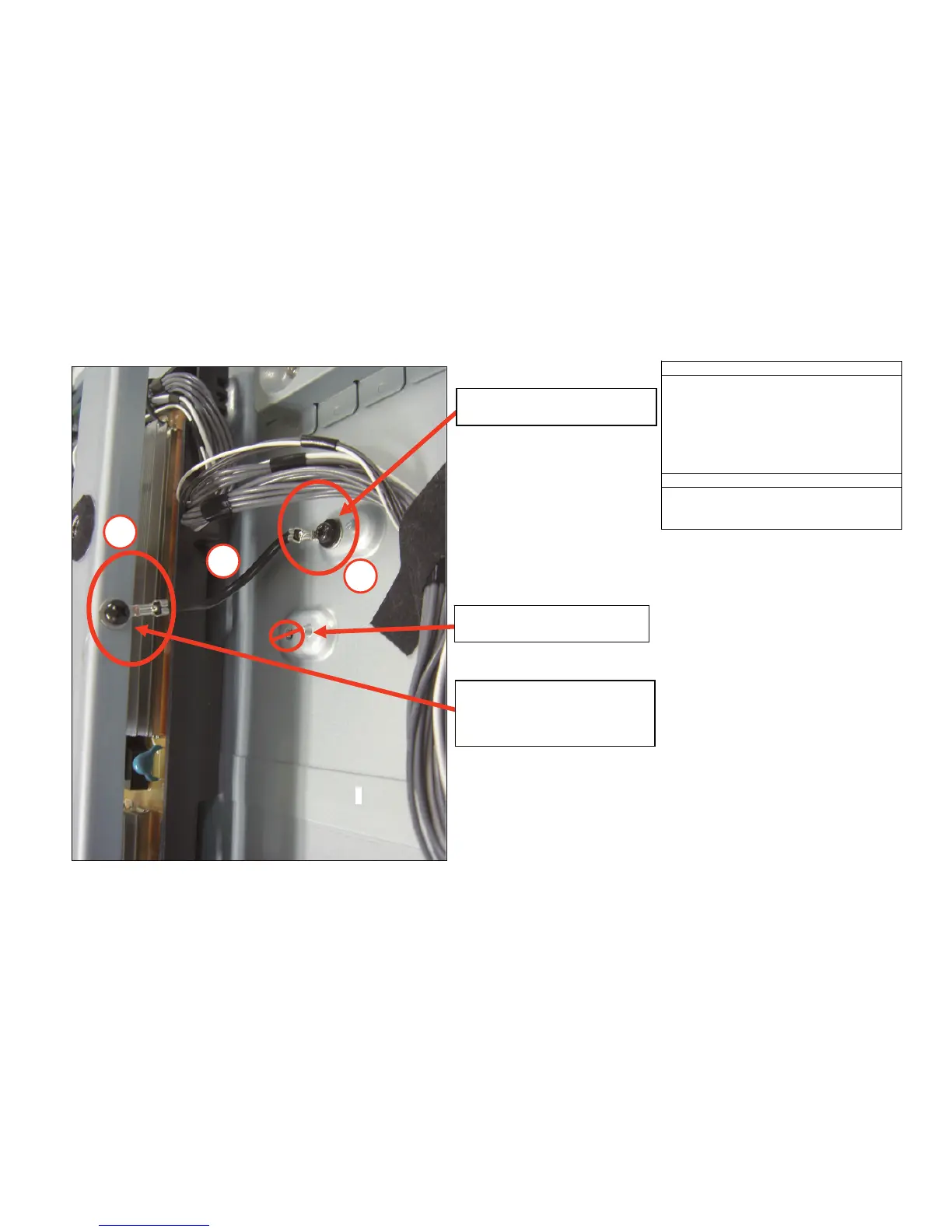

Attach ESD Grounding wire as shown
shown.
NOTE: 3x8mm AND 3x5mm Screws are
used!!
TORQUE: 6.0kg.cm (+-1.0kg.cm)
OPERATION PROCESS
TORQUE SPECIFICATION
Install 3x8mm screw to GND Tab
on RIGHT VESA Bracket.
NOTE: This screw can be applied
off-line as pre-assembly operation.
Install 3x5mm screw to GND Tab
on panel above BH-Bd Shield Case.
2
1
3
DO NOT install 3x5mm screw to
GND Tab on lower panel "dimple".
VESA BRACKET GROUND WIRE
