KDL-46S3000 ONLY

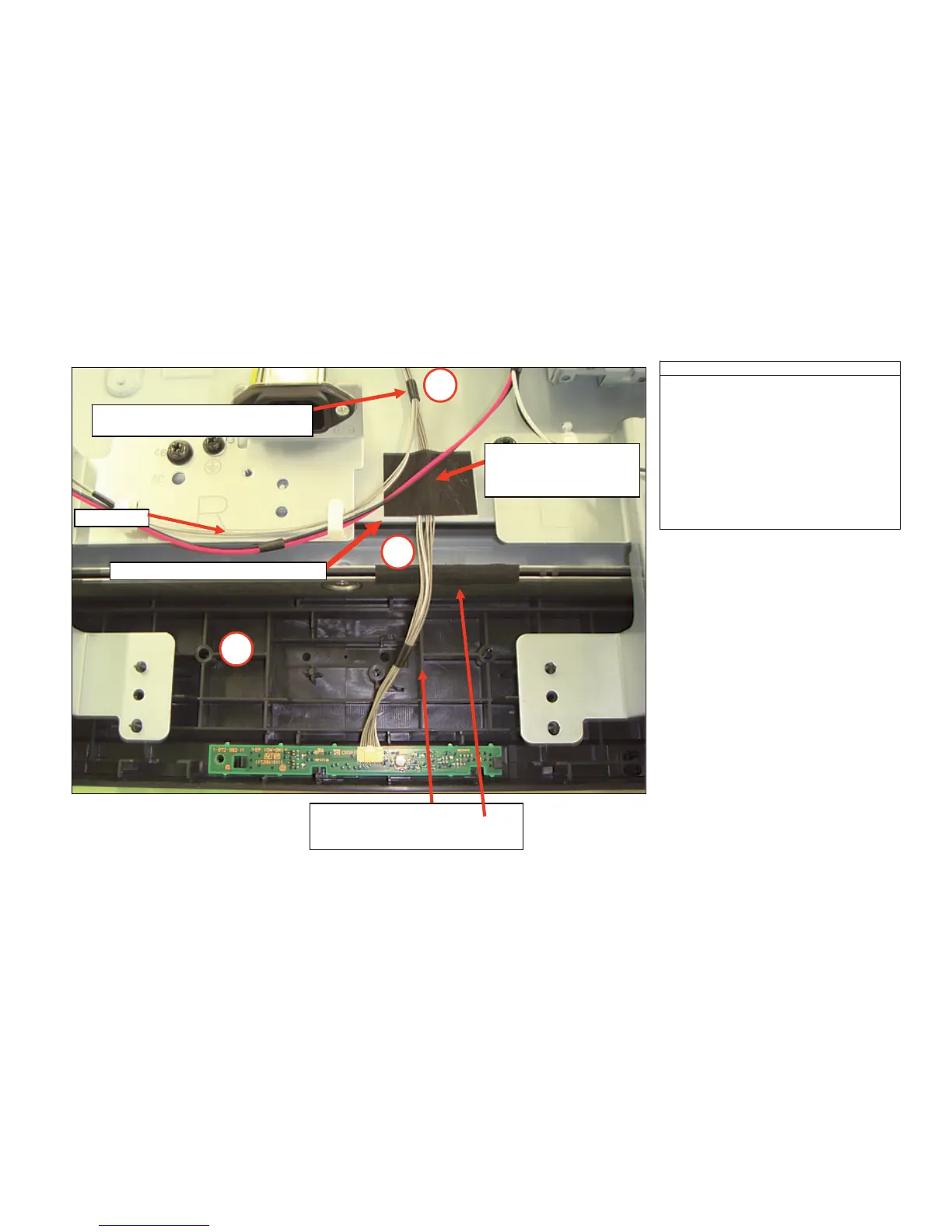

1. Apply Sheet Core C to edge of Panel to
cover sharp edge of panel.
Use rib on bezel (w/o screw boss) as a
guide to center tape.
2. Apply Cushion D to hold H3 Cables.
Use Edge of panel to align tape.
3. Dress H4 Cables and Rt Speaker cables in
Side Clamp on Lower LCD Bracket.
OPERATION PROCESS
Use rib on bezel as reference
to center Sheet Core C when applying
to panel edge.
Use UL Tapes as Reference to
position Harness over panel,
UL Tape is UNDER CUSHION D
(centered under tape).
1
2
3
Use H3/H4 Harness "Split" as reference
for top of Cushion D Position
Use panel edge to align Himelon Tape.
H4-Bd Cable
H3 BOARD HARNESS
